Disassembly And Assembly With ADP

OUTSIDE MIRROR


DOOR MIRROR ASSEMBLY : Disassembly and Assembly


DISASSEMBLY
1. Remove door mirror assembly. Removal And Installation With ADP.
2. Remove glass mirror. Disassembly And Assembly With ADP.
3. Remove door mirror cover. Disassembly And Assembly With ADP.

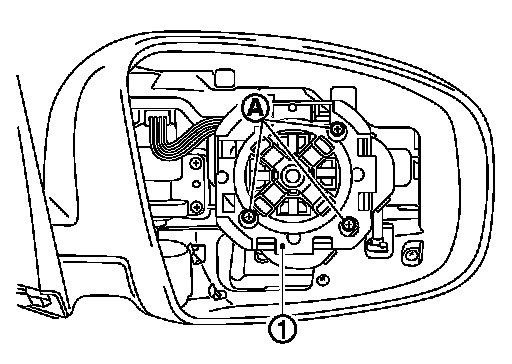

4. Remove screws (A) and connector, and then remove actuator
(1).
5. Remove side camera and LED lamp.
- Side camera LH: Removal And Installation Navigation (Twin Monitor).
- Side camera RH: Removal And Installation Navigation (Twin Monitor).
6. Remove base cover and puddle lamp.

ASSEMBLY
Assemble in the reverse order of disassembly.
