System Description

PLASMACLUSTER SYSTEM


System Description


- Plasmacluster ion generation function, which generates ions inactivating bacteria and supplies to the passenger compartment through air blown from air conditioner, has been adopted.
- Airborne mold and bacteria in the passenger compartment are inactivated by the effect of Plasmacluster ion.

NOTE:
- Plasmacluster(TM) ion technology developed by Sharp Corporation is installed in this item.


- Plasmacluster is a trademark of Sharp Corporation.

OPERATION DESCRIPTION
- The Plasmacluster(TM) ion generation function operates synchronized with the blower motor. The Plasmacluster(TM) ion generation function operates when the blower motor operates.
- Operating state of Plasmacluster(TM) system is displayed.
- Plasmacluster(TM) system switches display according to air flow volume as shown in the following figure.

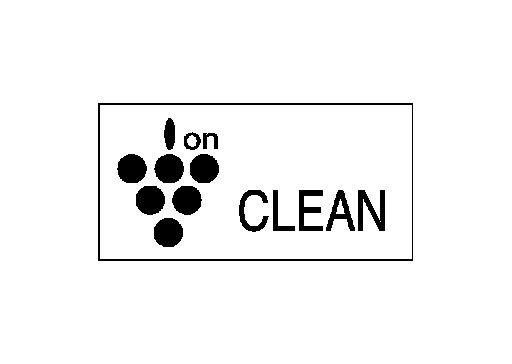

- When air flow is small.

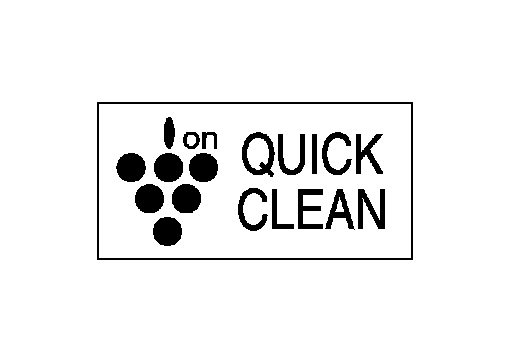

- When air flow is large.
