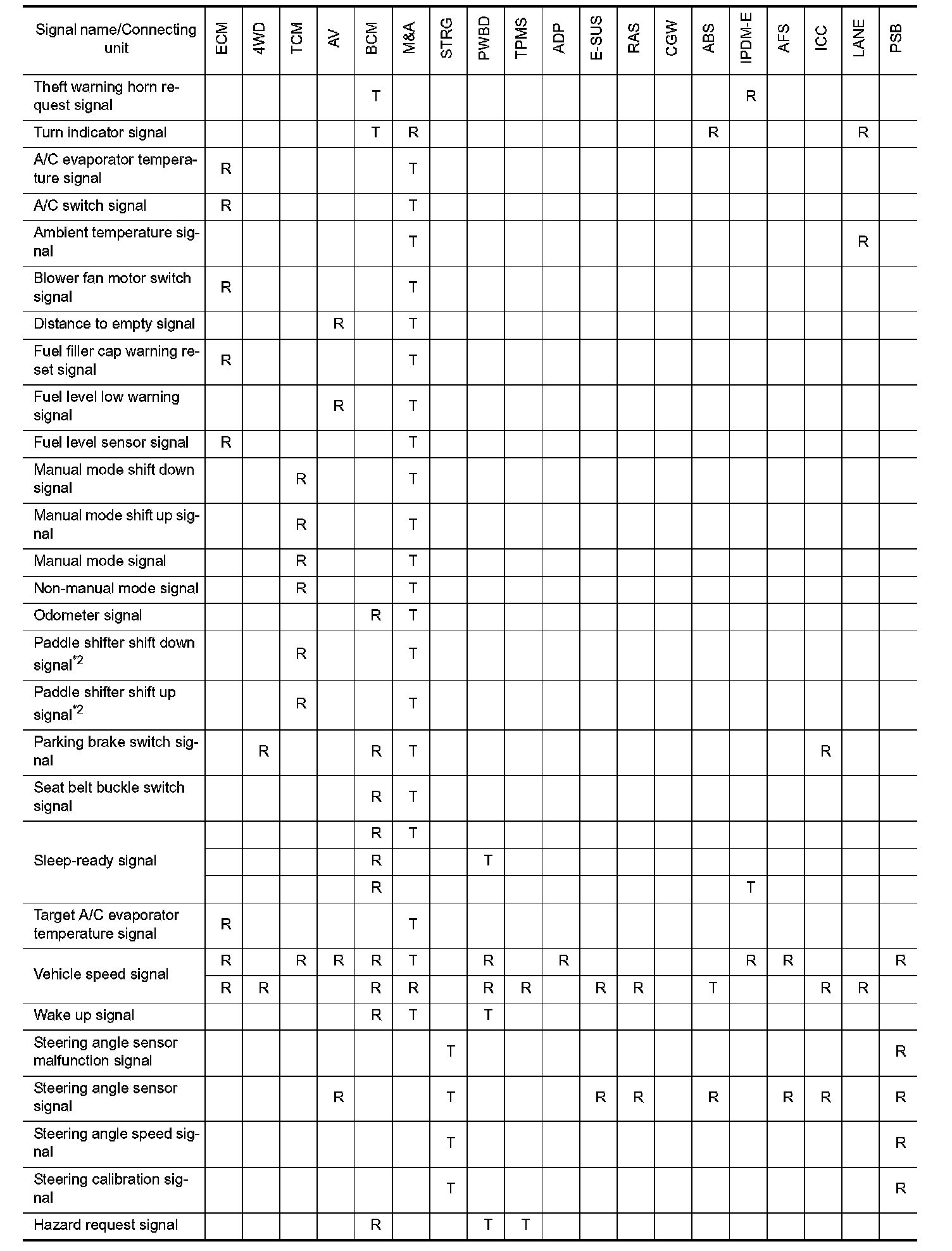

CAN Communication Signal Chart
CAN COMMUNICATION SYSTEMCAN Communication Signal Chart How To Use CAN Communication Signal Chart for how to use CAN communication signal chart.
NOTE: Abbreviation List for the abbreviations of the connecting units.
NOTE: CAN data of the air bag diagnosis sensor unit is not used by usual service work, thus it is omitted.
