VVEL Control Module

VVEL CONTROL MODULE

Reference Value

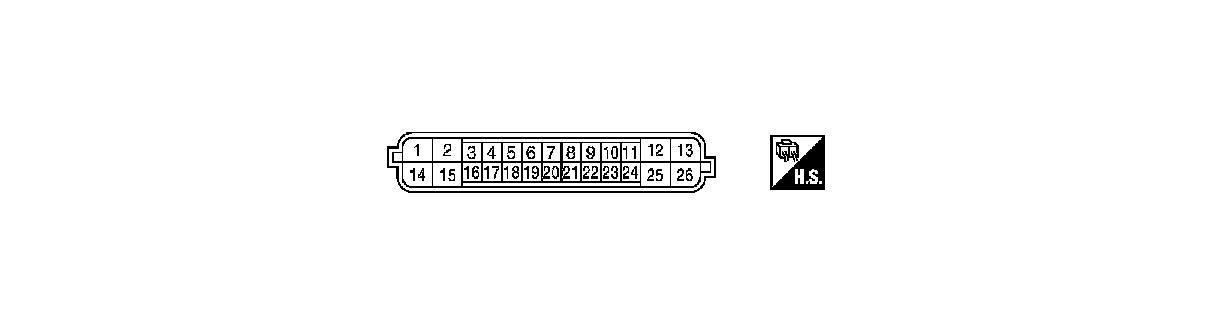

TERMINAL LAYOUT

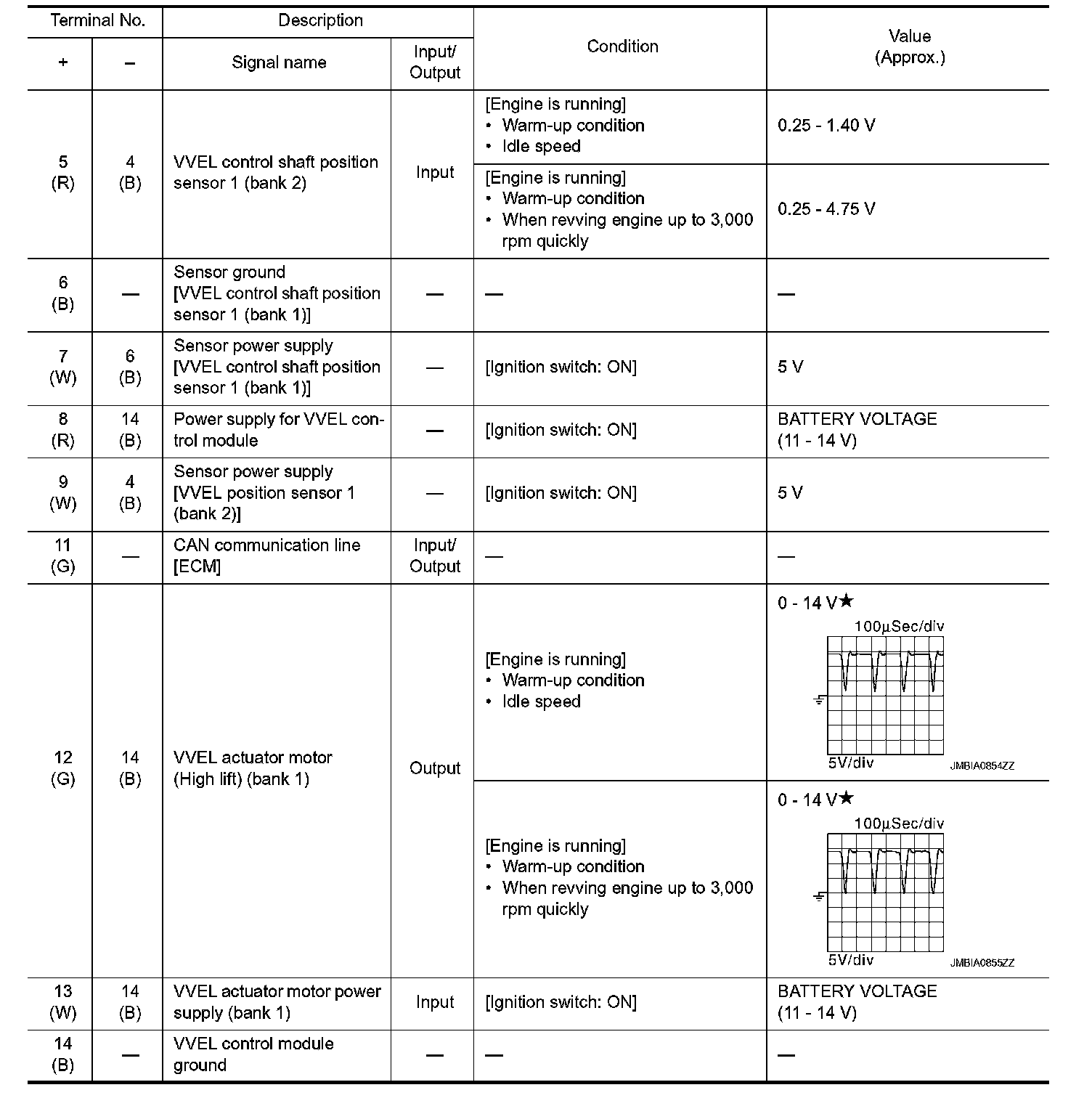

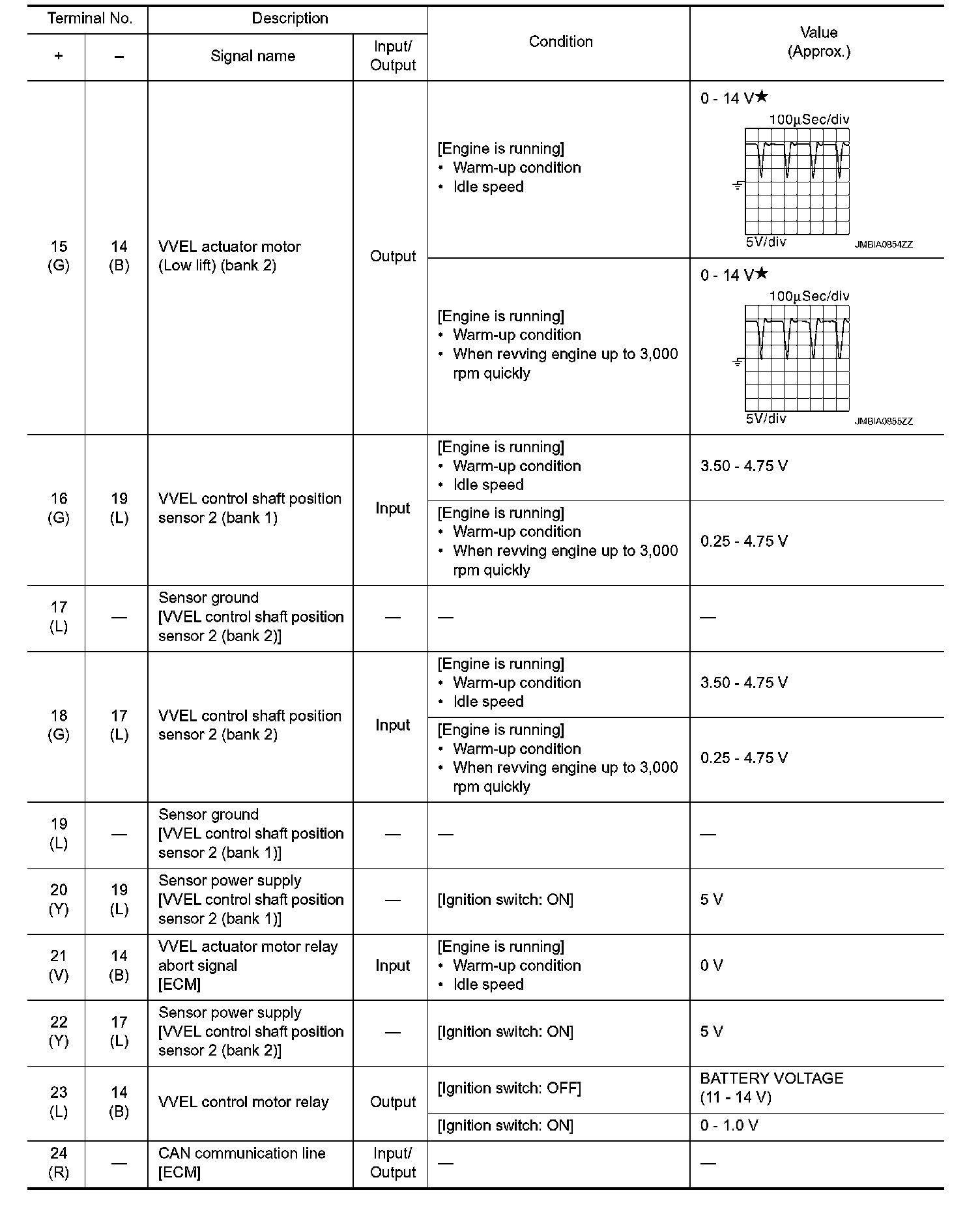

PHYSICAL VALUES

NOTE:
- VVEL control module is located behind the IPDM E/R. For this inspection, remove hoodledge cover (RH).
- Specification data are reference values and are measured between each terminals.
- Pulse signal is measured by CONSULT-III.
