Removal And Installation
SPARK PLUGRemoval and Installation REMOVAL 1.
Remove engine cover.
Exploded View.
2.
Remove ignition coil.
Exploded View.
3.

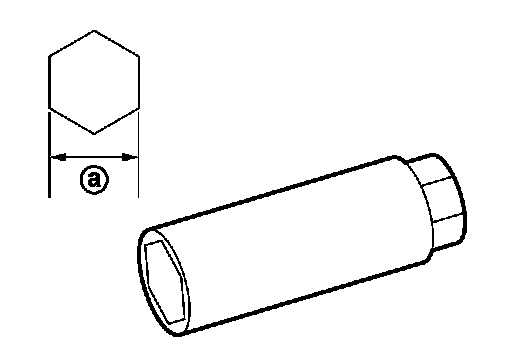

Remove
spark plug with a spark plug wrench (commercial service tool).
a : 14 mm (0.55 in)
INSTALLATION Installation is the reverse order of removal.
