Timing Cover
Timing Chain Cover Mounting Bolts
12.8 N-m (1.3 kg-m, 9 ft-lb)

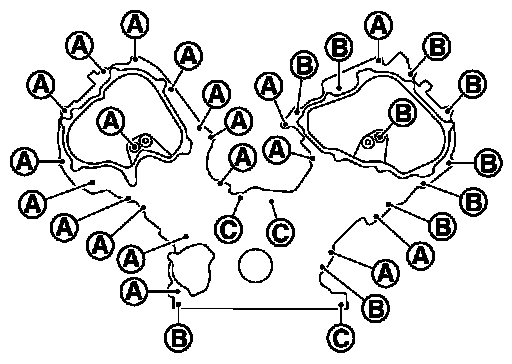

Bolt Types
A: 20 mm (0.79 in)
B: 45 mm (1.77 in)
C: 80 mm (3.15 in)

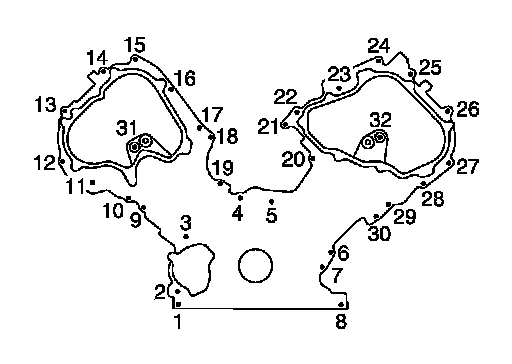

Tightening Sequence
Valve Timing Control Cover Bolts
11.3 N-m (1.2 kg-m, 8 ft-lb)

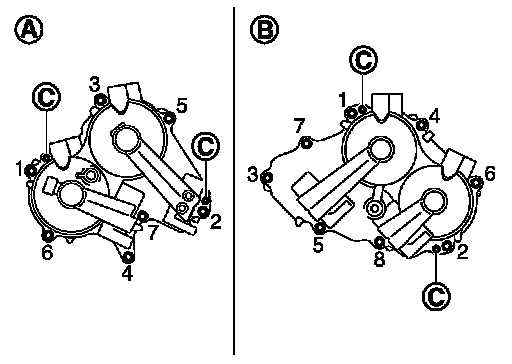

Tighten bolts in numerical order as shown in the figure
A: Bank 2
B: Bank 1
C: Dowel pin holes
