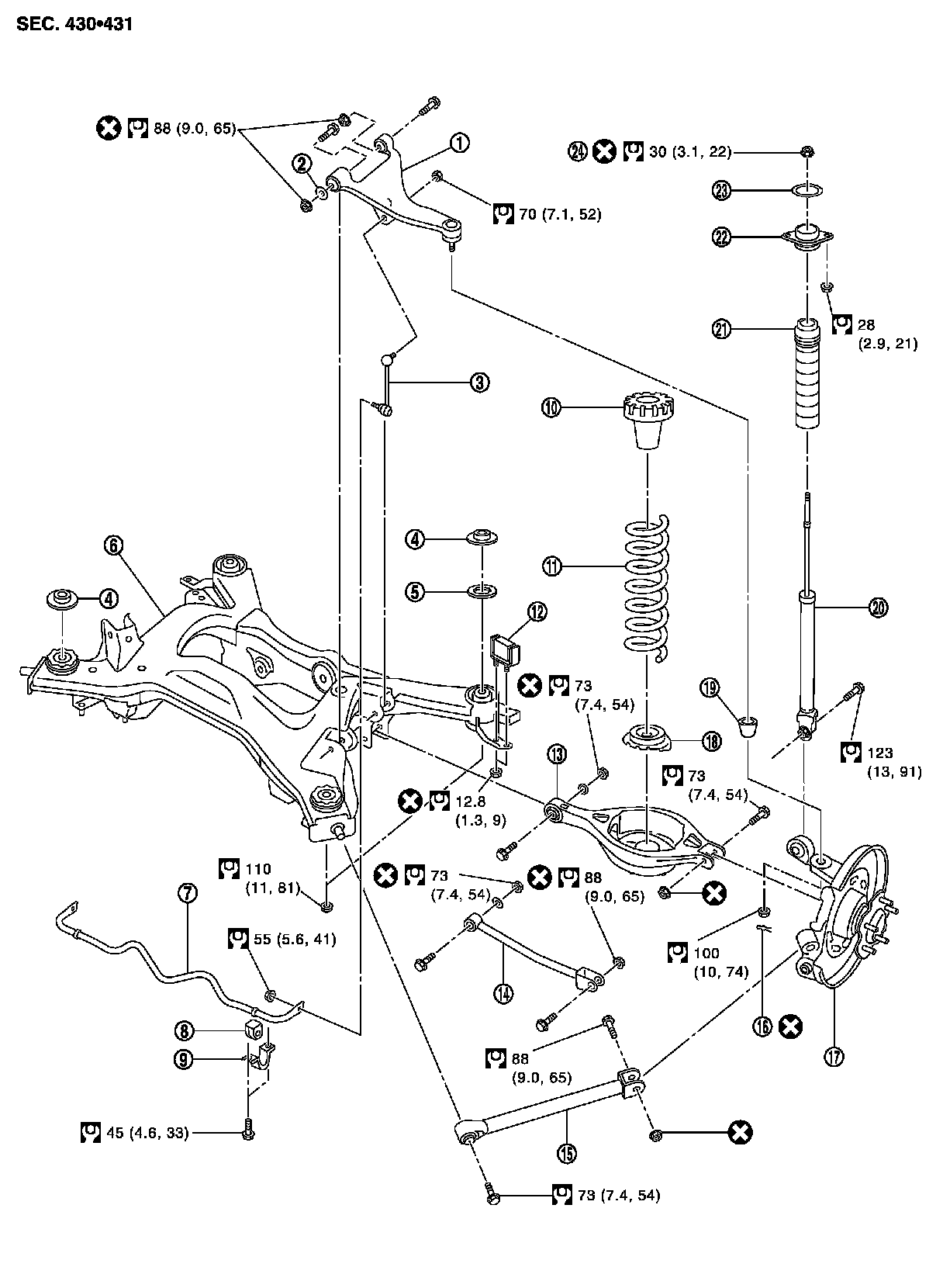

Rear Suspension Member Exploded View
Rear Suspension Member Exploded View
REAR SUSPENSION MEMBER

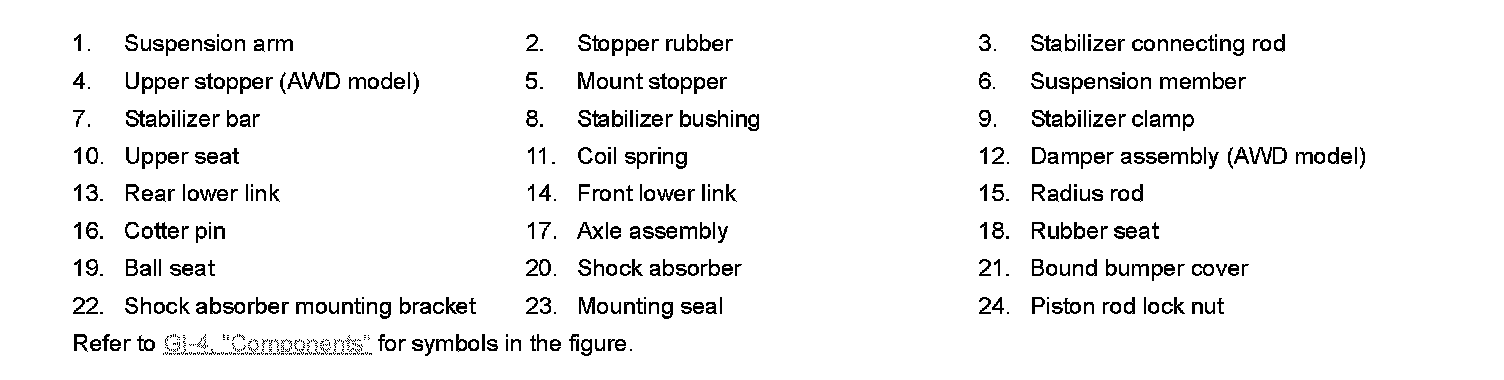

Exploded View
