Exploded View
Exploded View
ALTERNATOR
VQ25HR VQ25HR : Exploded View

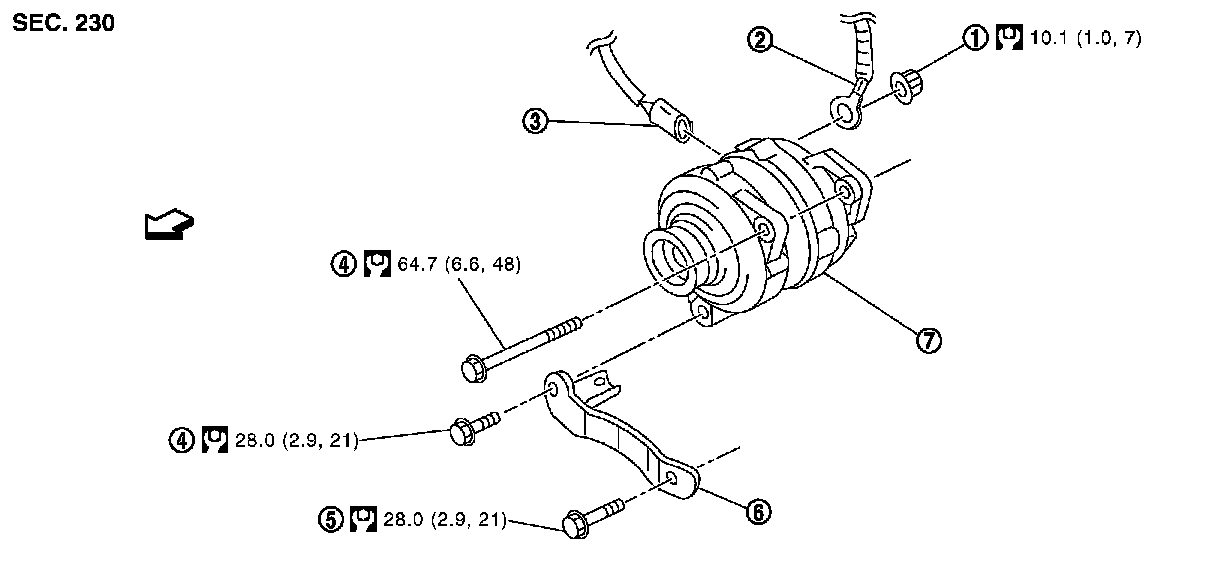

REMOVAL

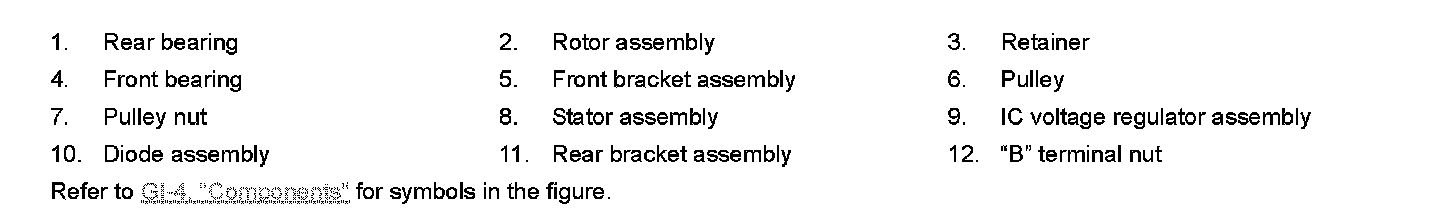

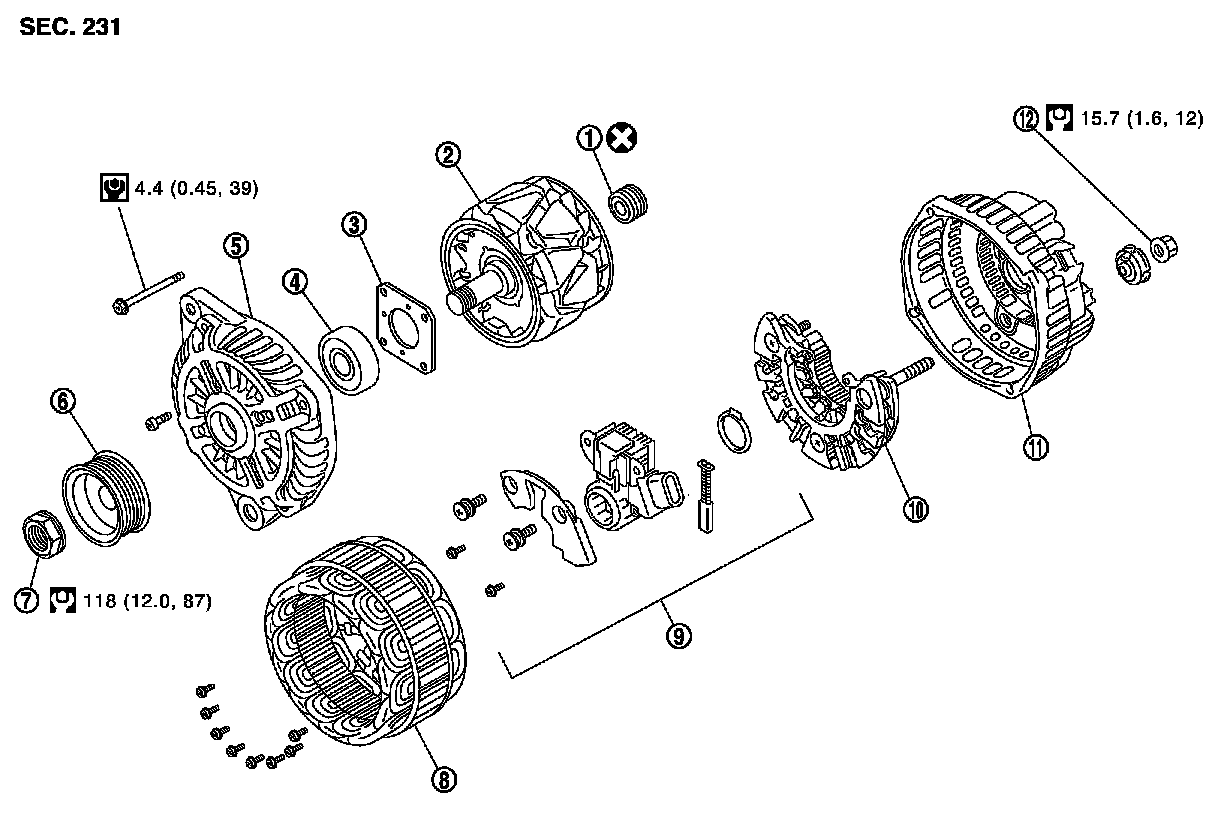

DISASSEMBLY
Type: A3TJ0691
