Exploded View
Exploded View
ALTERNATOR
VQ37VHR VQ37VHR : Exploded View

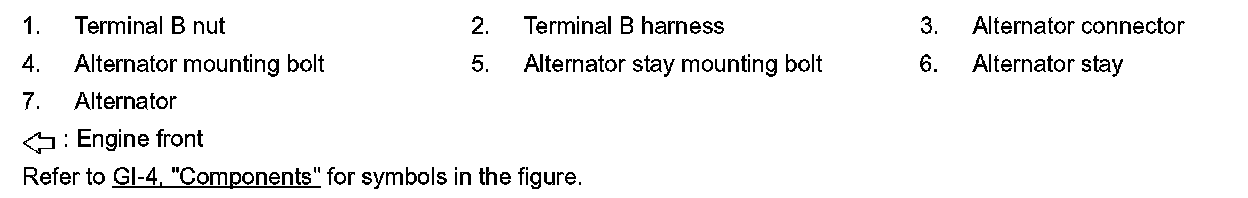

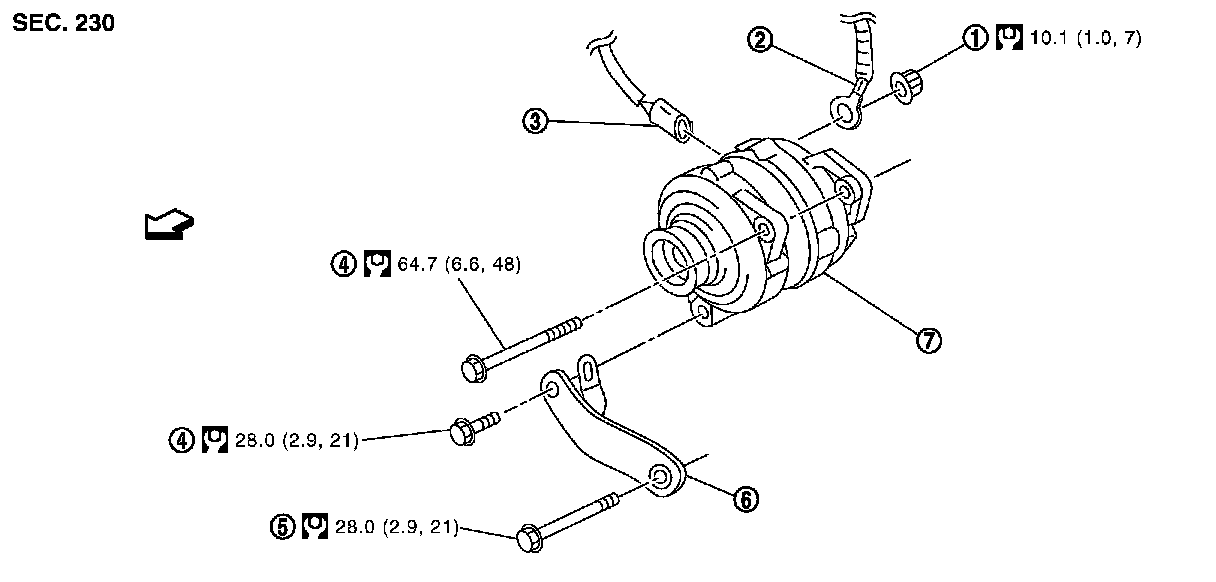

REMOVAL

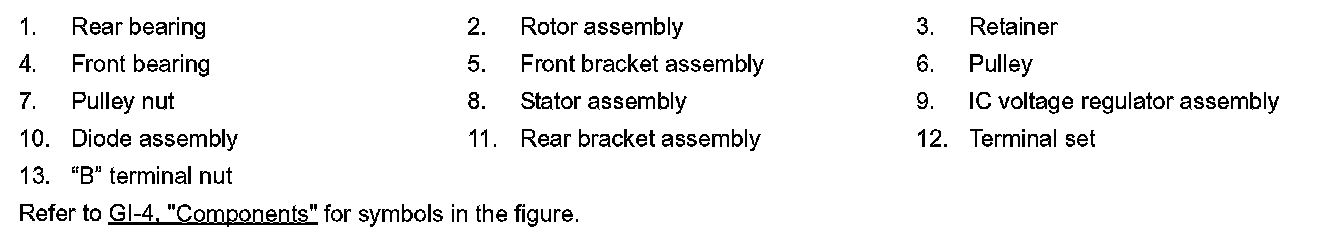

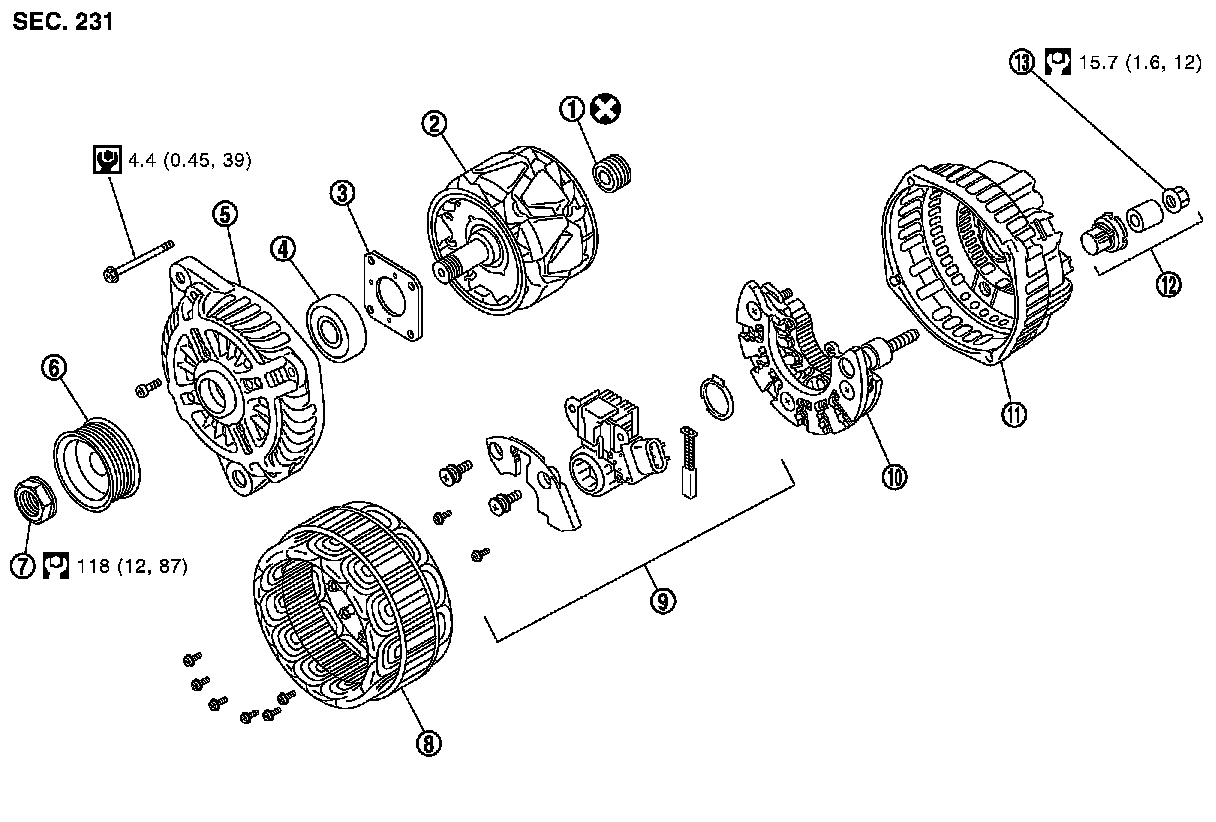

DISASSEMBLY
Type: A003TJ1991
