7AT RE7R01A
>>
A/T Control System
>>

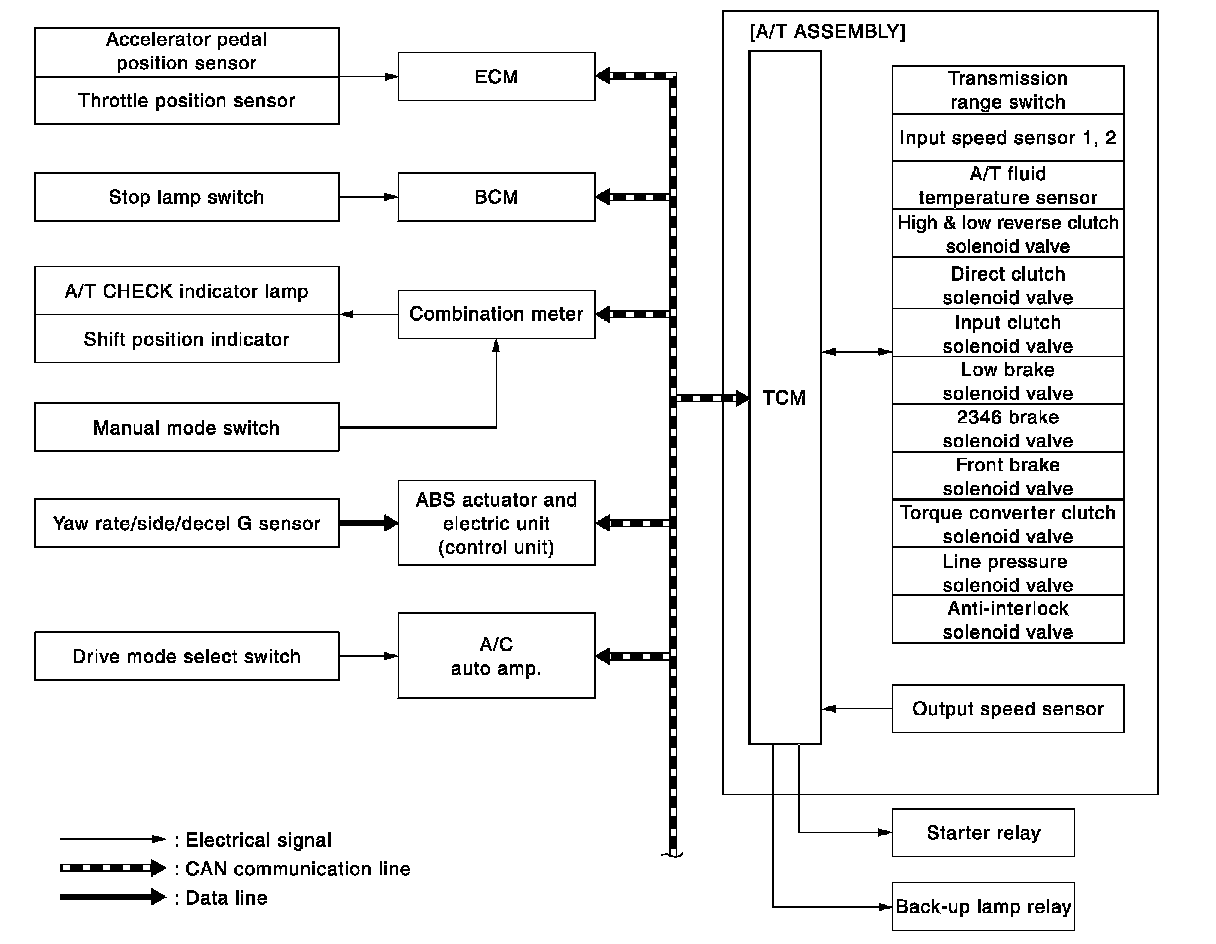

System Diagram
System Diagram
A/T CONTROL SYSTEM A/T CONTROL SYSTEM : System Diagram
