7AT RE7R01A
>>
Line Pressure Control
>>
System Diagram
System Diagram

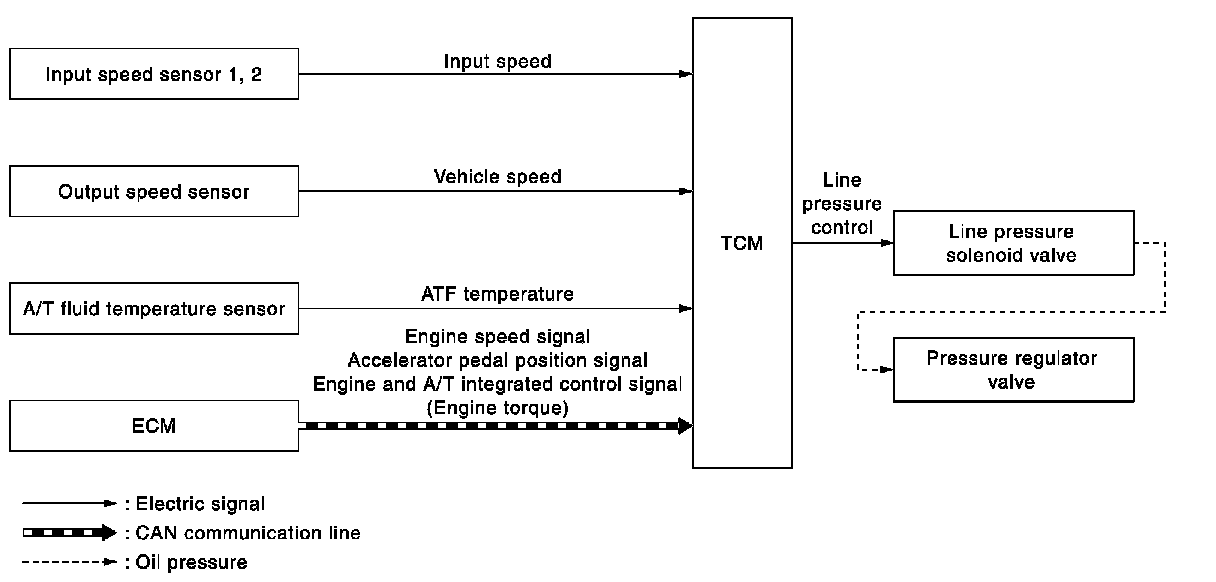

LINE PRESSURE CONTROL : System Diagram
