Exploded View
Exploded View
ALTERNATOR
VK56VD VK56VD : Exploded View

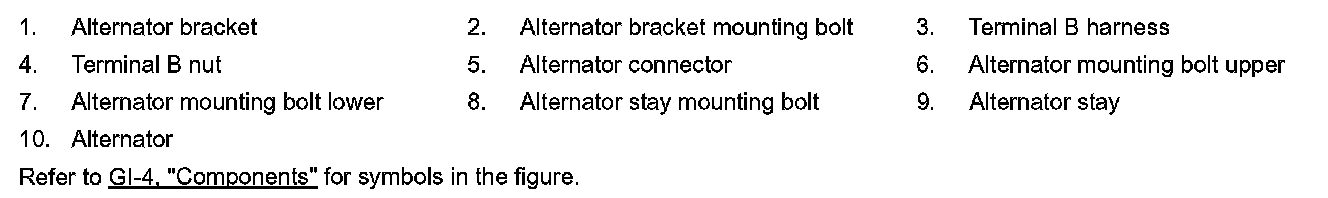

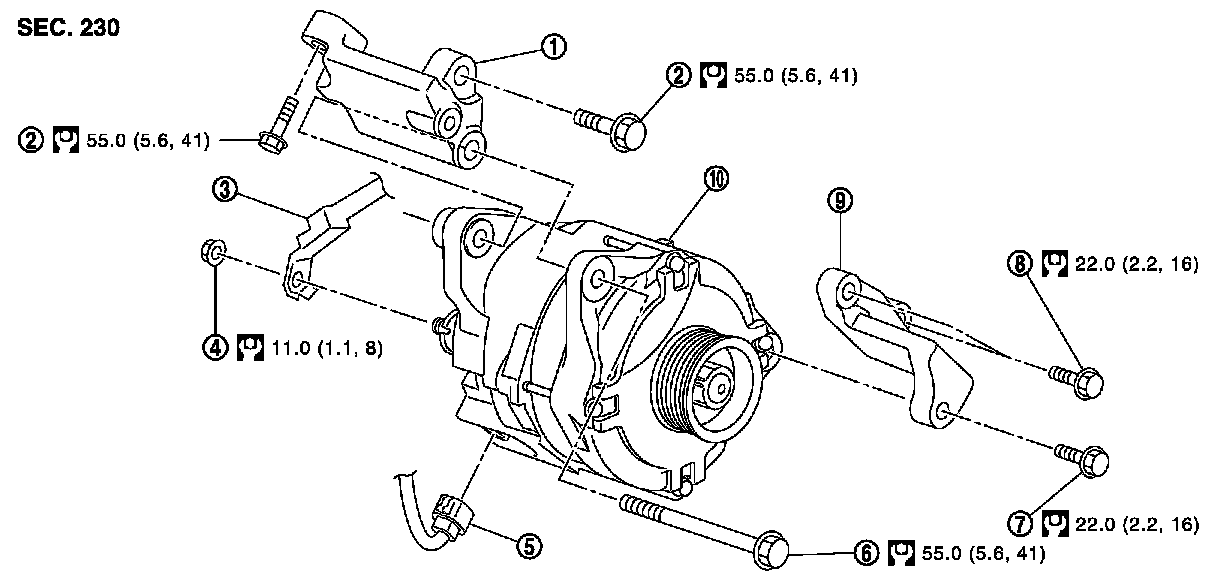

REMOVAL

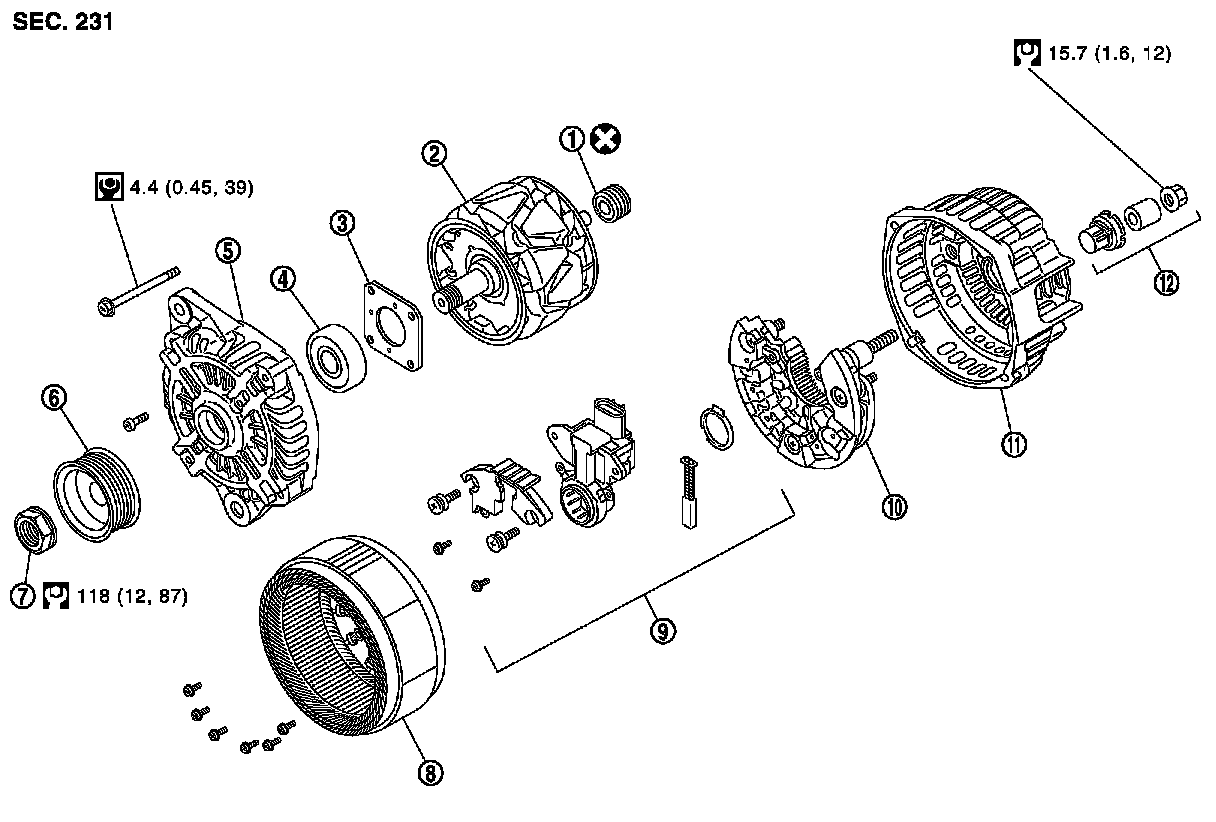

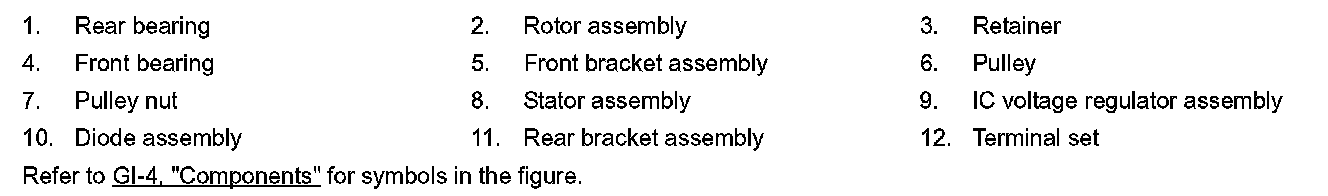

DISASSEMBLY
Type: A002TX1591
