Disassembly And Assembly

REAR CONSOLE ASSEMBLY


Disassembly and Assembly


CAUTION:
When disassembling, always use a remover tool that is made of plastic.

DISASSEMBLY
1. Remove rear console assembly. Removal And Installation.

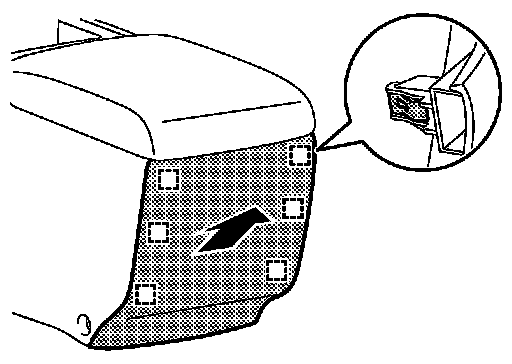

2. Remove rear console rear finisher.
Pull back rear console rear finisher, and then disengage metal clips.

Square : Metal clip





3. Remove rear console mask.
1. Open the rear console lid assembly.

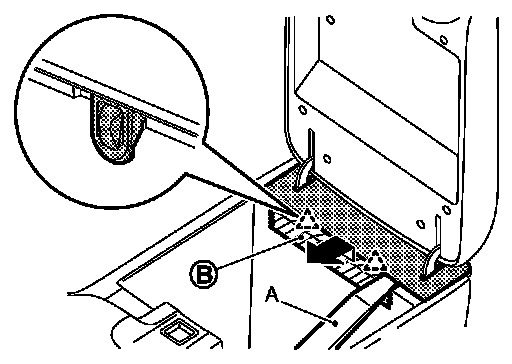

2. Remove rear console hinge mask fixing pawls with remover tool (A).
3. Pull rear console hinge mask up and back.

Triangle : pawl

CAUTION:
Apply protective tape (B) on the part to protect it from damage.
4. Remove console lid assembly mounting screws (A), and then remove console lid assembly.





5. Remove rear cup holder assembly.
1. Open the rear console lid assembly.

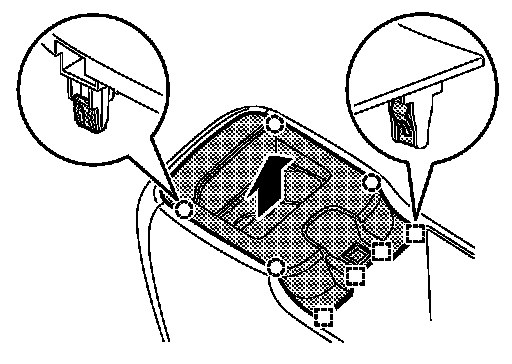

2. Pull upward to release rear cup holder assembly fixing clips and metal clips from rear console assembly.
3. Pull rear console mask up and back.

Circle : Clip
Square : Metal clip






6. Remove rear console front finisher.

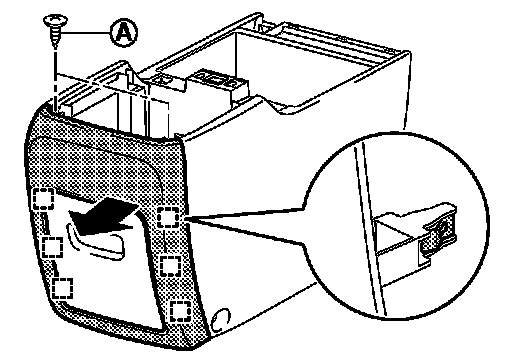

1. Remove screws (A).
2. Pull rear console front finisher, and then disengage metal clips.

Square : Metal clip

ASSEMBLY
Assemble in the reverse order of disassembly.
