C1140

C1140 ACTUATOR RELAY SYSTEM

DTC Logic


DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
- GO TO 2.

2. CHECK DTC DETECTION

With CONSULT
1.Turn the ignition switch OFF -> ON.

CAUTION:
- Be sure to wait of 10 seconds after turning ignition switch OFF or ON.
- Set the vehicle to READY/Start the engine.
2.Repeat step 1 two or more times.
3.Perform self-diagnosis for "ABS".
Is DTC "C1140" detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK CONNECTOR

1.Turn the ignition switch OFF.
2.Check ABS actuator and electric unit (control unit) harness connector for disconnection or looseness.
Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace error-detected parts, securely lock the connector, and GO TO 2.

2. PERFORM SELF-DIAGNOSIS

1.Turn the ignition switch OFF -> ON.

CAUTION:
- Be sure to wait of 10 seconds after turning ignition switch OFF or ON.
- Set the vehicle to READY/Start the engine.
2.Repeat step 1 two or more times.
3.Perform self-diagnosis for "ABS".
Is DTC "C1140" detected?
YES- GO TO 3.
NO- INSPECTION END

3. CHECK ACTUATOR RELAY POWER SUPPLY

1.Turn the ignition switch OFF.
2.Disconnect ABS actuator and electric unit (control unit) harness connector.

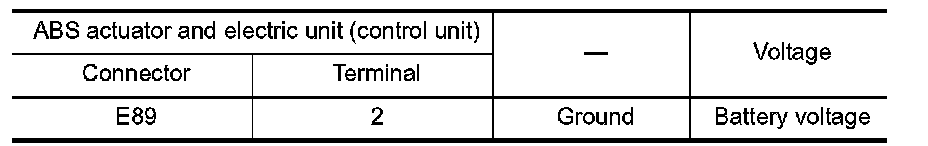

3.Check voltage between ABS actuator and electric unit (control unit) harness connector and ground.





4.Turn the ignition switch ON.

CAUTION:
Never set the vehicle to READY/Never start the engine.
5.Check voltage between ABS actuator and electric unit (control unit) harness connector and ground.





Is the inspection result normal?
YES- GO TO 5.
NO- GO TO 4.

4. CHECK ACTUATOR RELAY POWER SUPPLY CIRCUIT

1.Turn the ignition switch OFF.
2.Check 50A fusible link (#N).
3.Check continuity and short circuit between ABS actuator and electric unit (control unit) harness connector terminal (2) and 50A fusible link (#N).
Is the inspection result normal?
YES- Perform trouble diagnosis for 12V battery power supply. Battery Power Supply.
NO- Repair or replace error-detected parts.

5. CHECK ACTUATOR RELAY GROUND CIRCUIT

1.Turn the ignition switch OFF.
2.Check continuity between ABS actuator and electric unit (control unit) harness connector and the ground.





Is the inspection result normal?
YES- GO TO 6.
NO- Repair or replace error-detected parts.

6. CHECK TERMINAL

Check ABS actuator and electric unit (control unit) pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?
YES- Replace ABS actuator and electric unit (control unit). Removal and Installation.
NO- Repair or replace error-detected parts.
