Component Function Check
TOUCH SENSORLH : Component Function Check 1. CHECK FUNCTION 1.Select "AUTOMATIC BACK DOOR CONTROL UNIT" using CONSULT.
2.Select "TOUCH SEN LH" in "DATA MONITOR" mode.

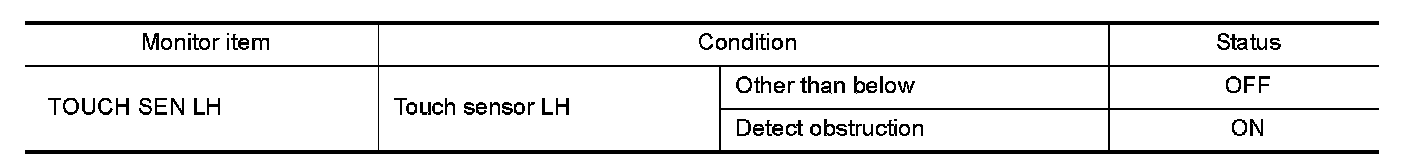

3.Check that the function operates normally according to the following conditions.
Is the inspection result normal?
YES- Touch sensor LH is OK.
NO- Refer to "LH : Diagnosis Procedure"
Diagnosis Procedure.
