Component Function Check
TOUCH SENSORRH : Component Function Check 1. CHECK FUNCTION 1.Select "AUTOMATIC BACK DOOR CONTROL UNIT" using CONSULT.
2.Select "TOUCH SEN RH" in "DATA MONITOR" mode.

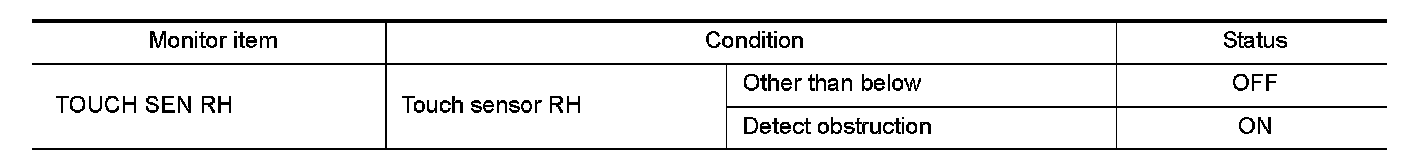

3.Check that the function operates normally according to the following conditions.
Is the inspection result normal?
YES- Touch sensor RH is OK.
NO- Refer to "RH : Diagnosis Procedure"
Diagnosis Procedure.
