Scan Tool Testing and Procedures




DIAGNOSIS SYSTEM (ADAS CONTROL UNIT)

CONSULT Function (ICC/ADAS)


APPLICATION ITEMS

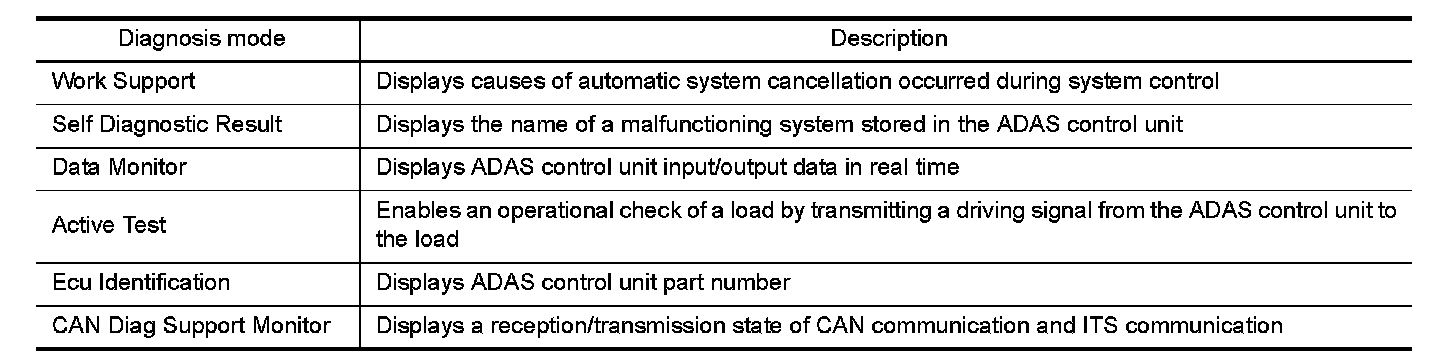

CONSULT performs the following functions via CAN communication using ADAS control unit.






WORK SUPPORT






NOTE:
- Causes of the maximum five cancellations (system cancel) are displayed.
- The displayed cancellation causes display the number of the ignition switch ON/OFF up to 254. It is fixed to
254 if it is over 254. It returns to 0 when the same cancellation cause is detected again.

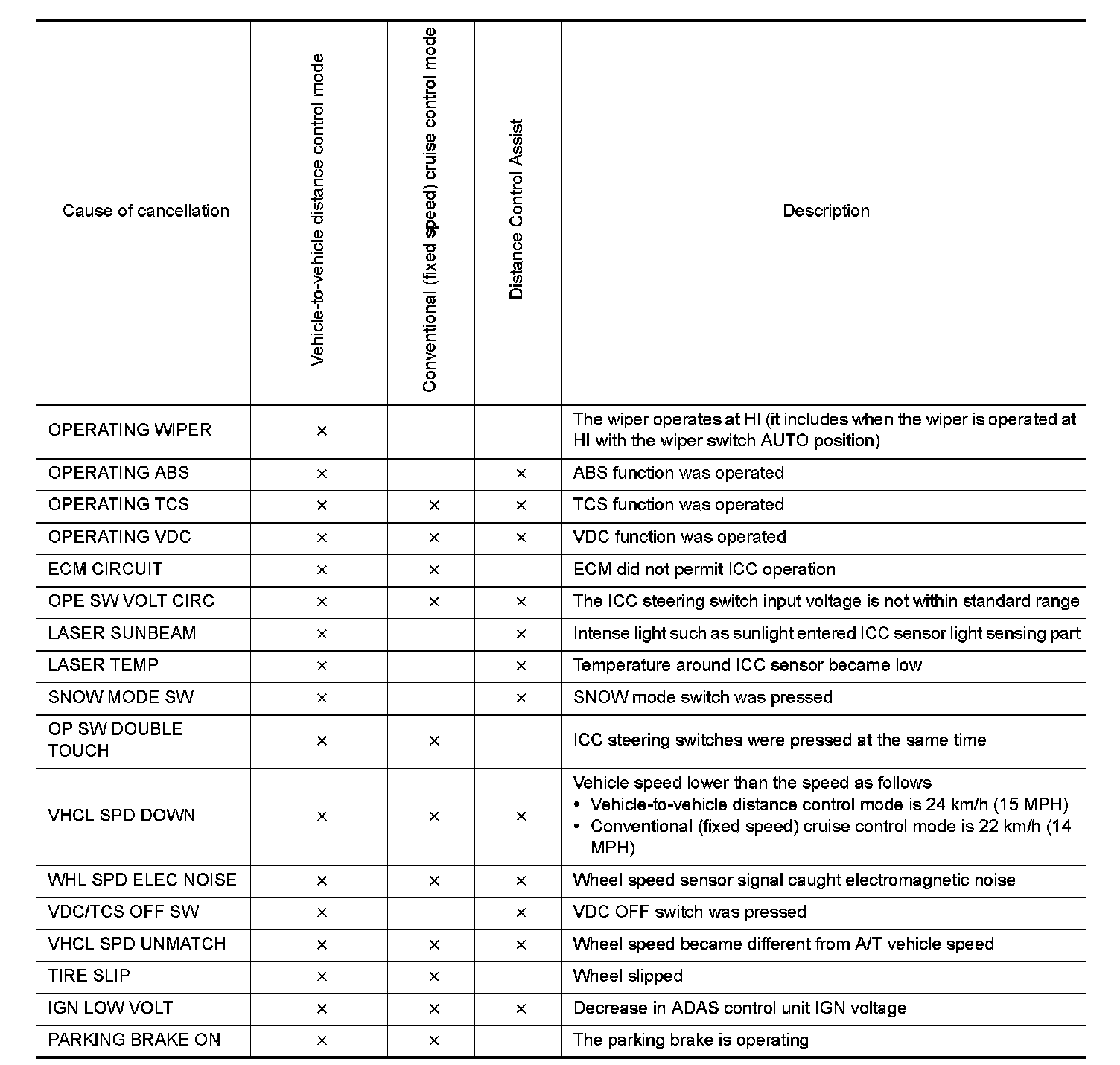

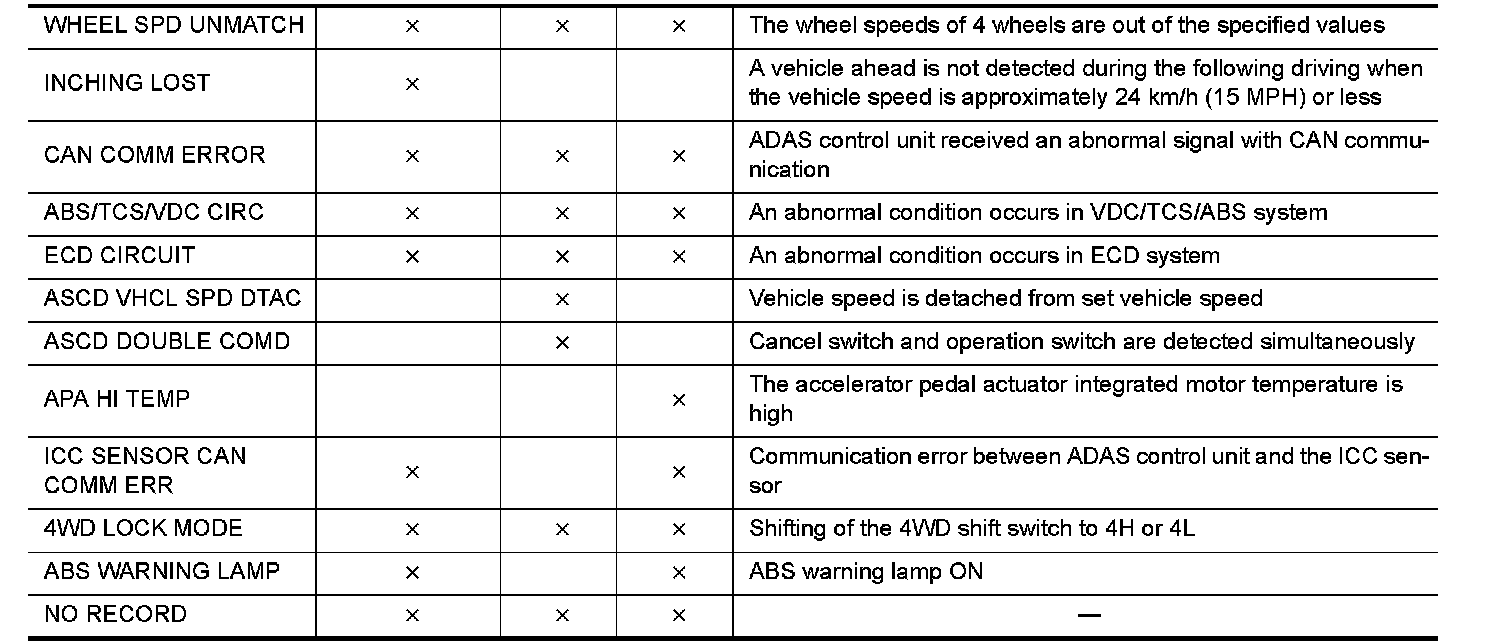

Display Items for The Cause of Automatic Cancellation 1










Display Items for The Cause of Automatic Cancellation 2











SELF DIAGNOSTIC RESULT

Refer to "DTC Index" Testing and Inspection.

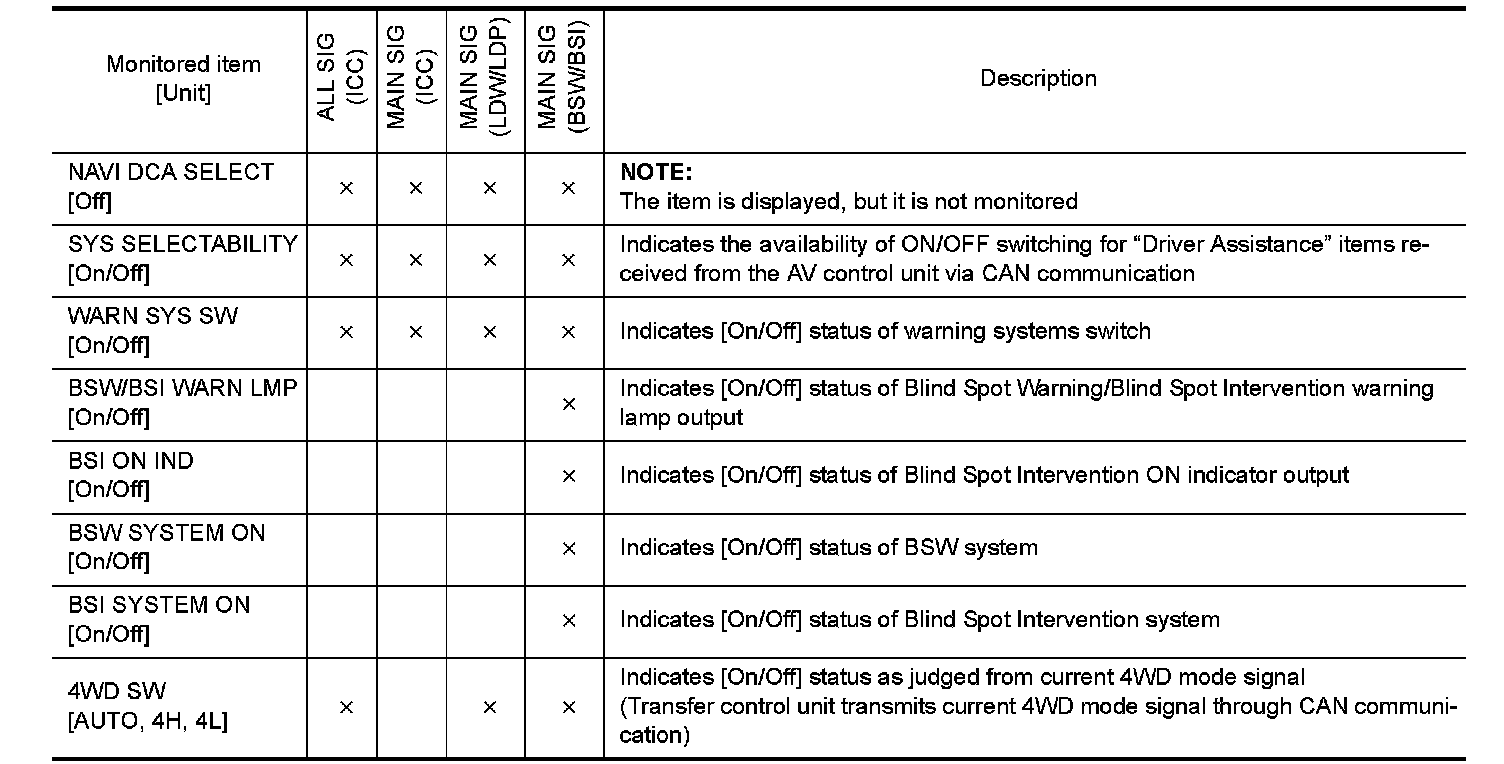

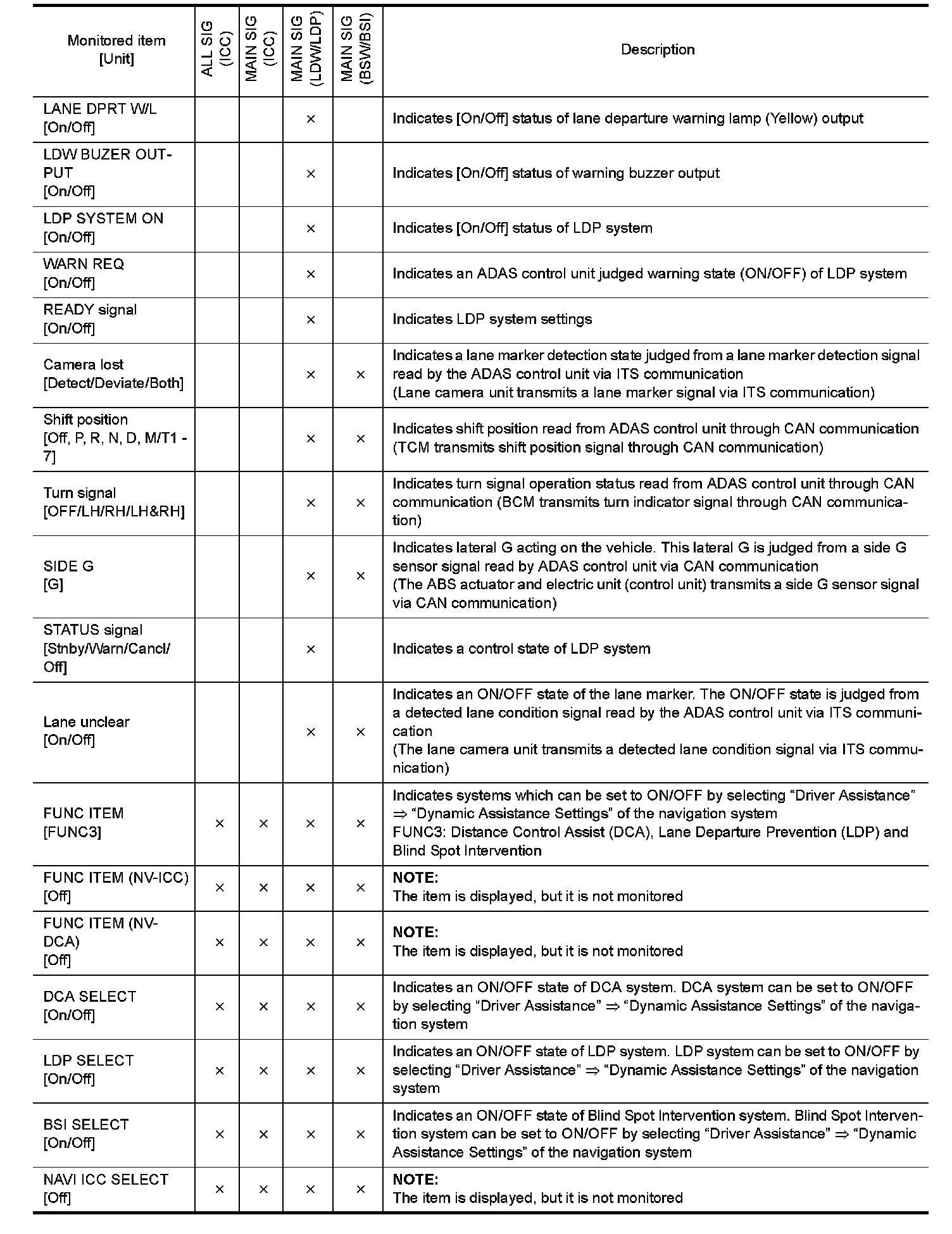

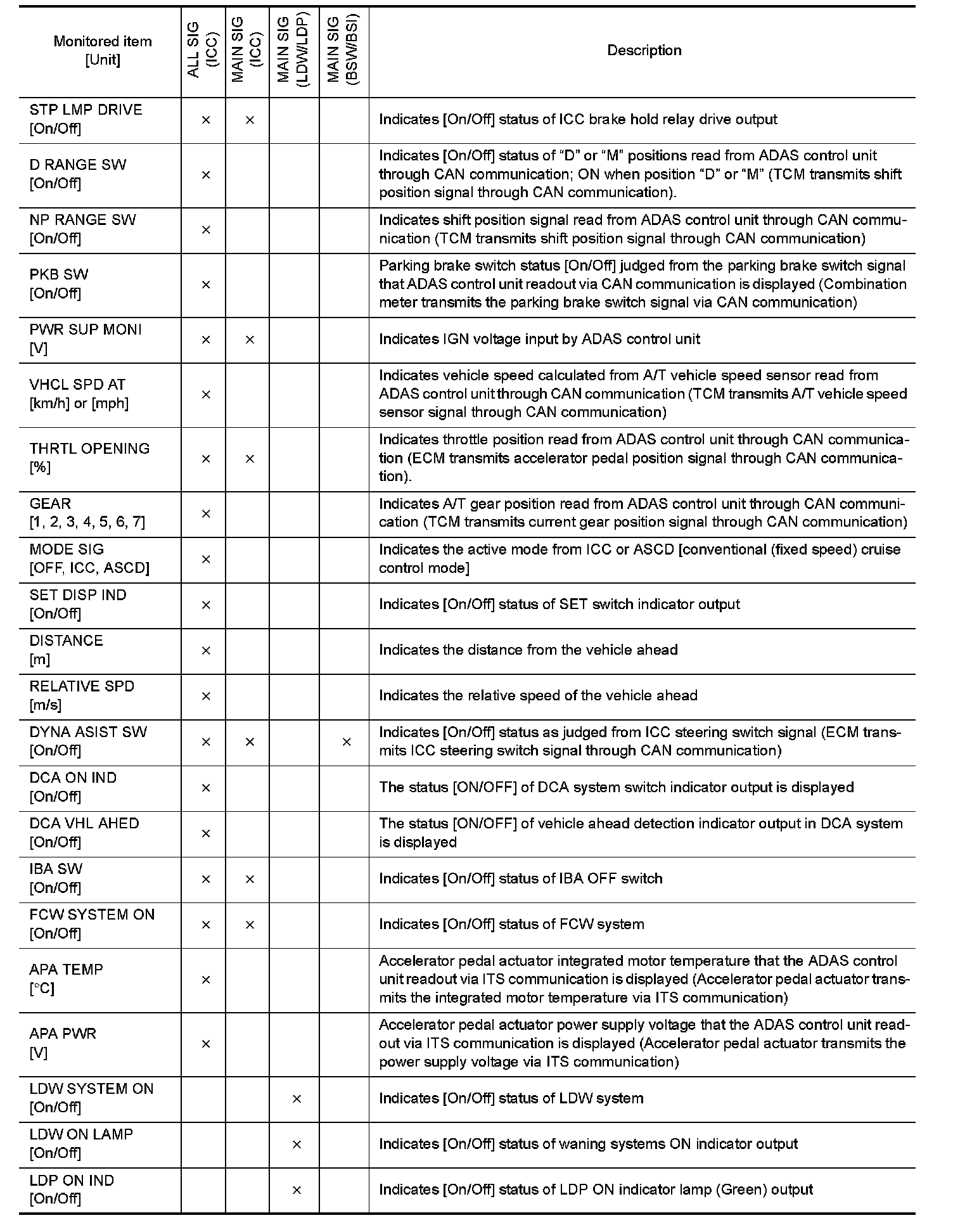

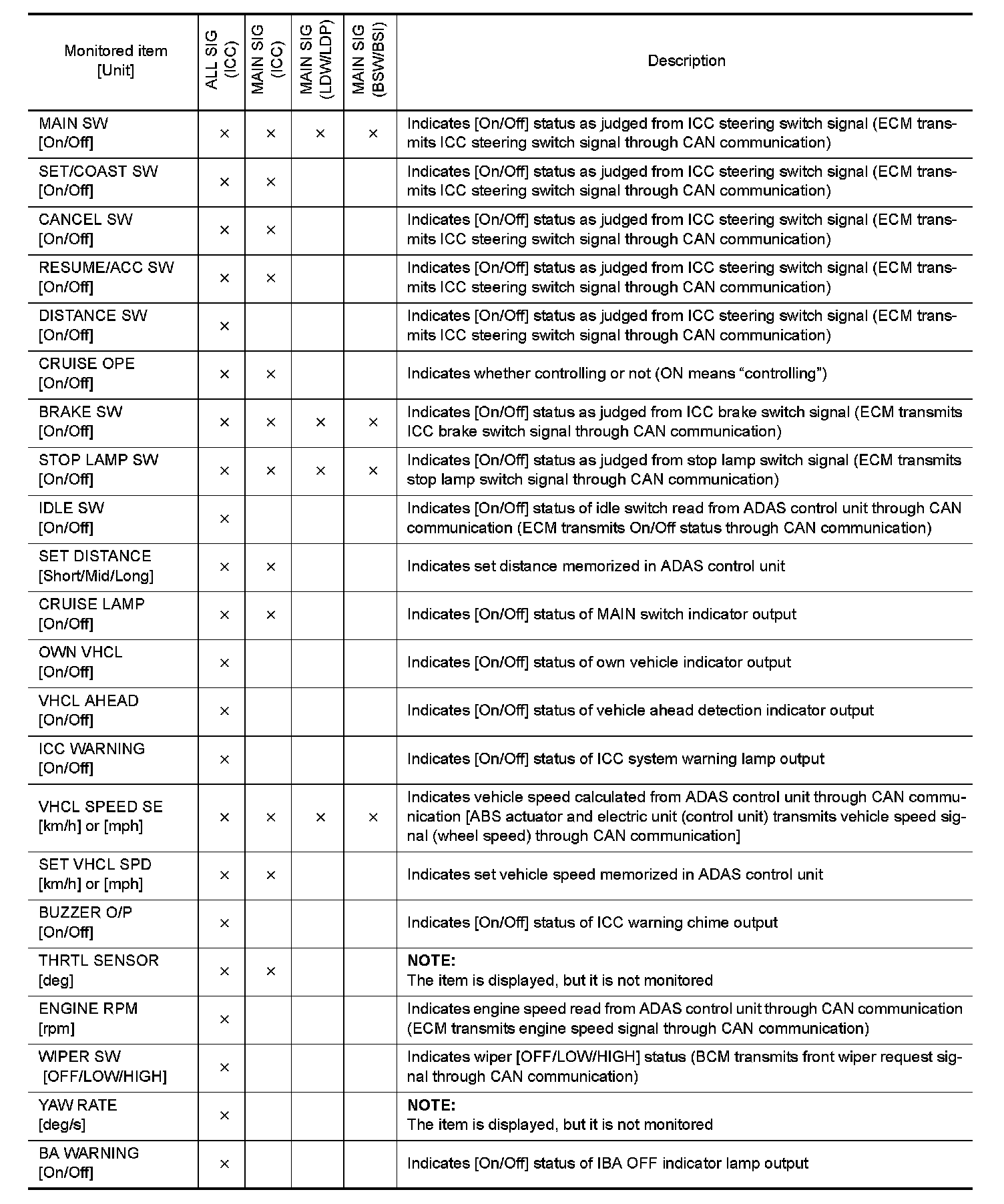

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

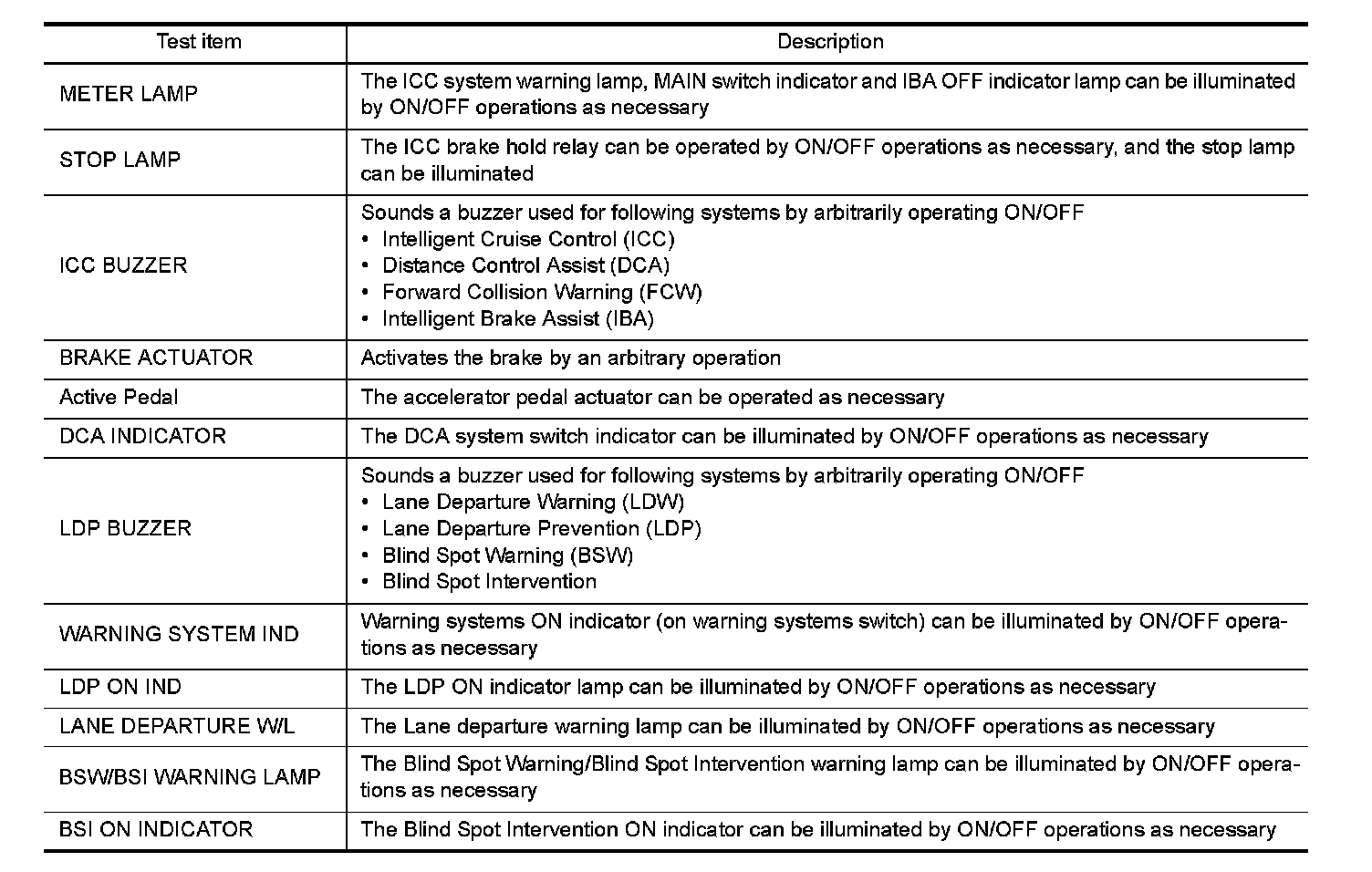

ACTIVE TEST


CAUTION:
- Never perform "Active Test" while driving the vehicle.
- The "Active Test" cannot be performed when the following systems warning lamp is illuminated.
- ICC system warning lamp
- Lane departure warning lamp
- Blind Spot Warning/Blind Spot Intervention warning lamp
- IBA OFF indicator lamp (IBA system ON)
- Shift the selector lever to "P" position, and then perform the test.

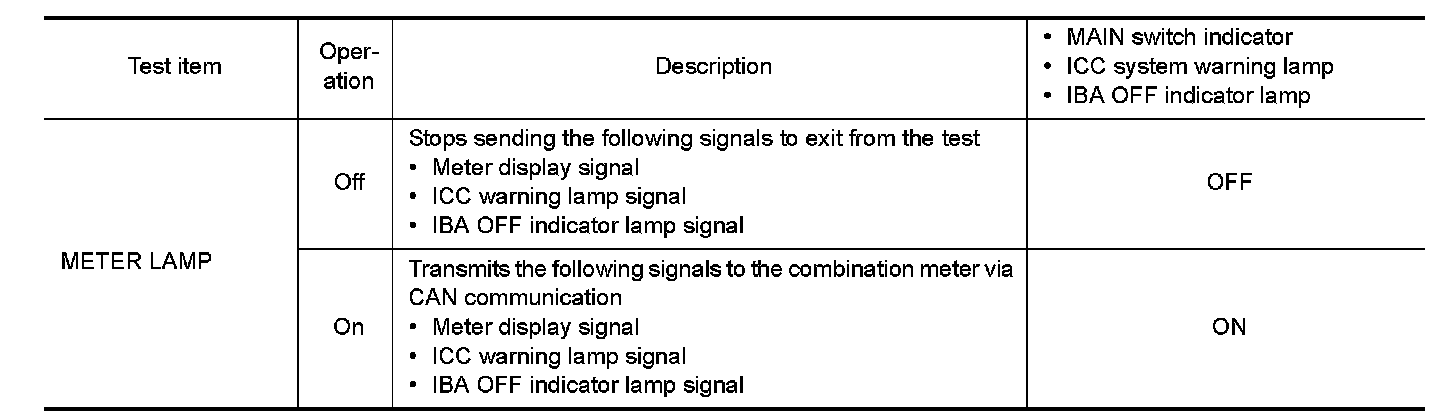

METER LAMP
NOTE:
The test can be performed only when the engine is running.





STOP LAMP

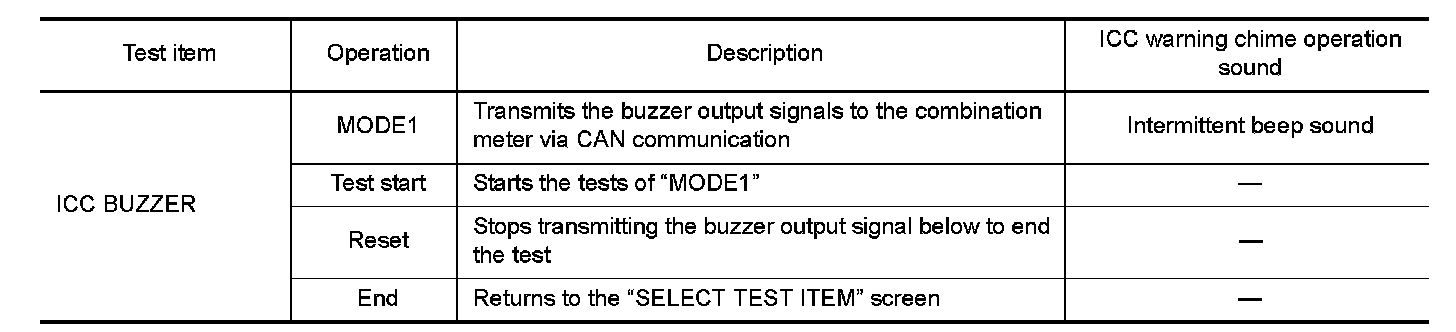

ICC BUZZER

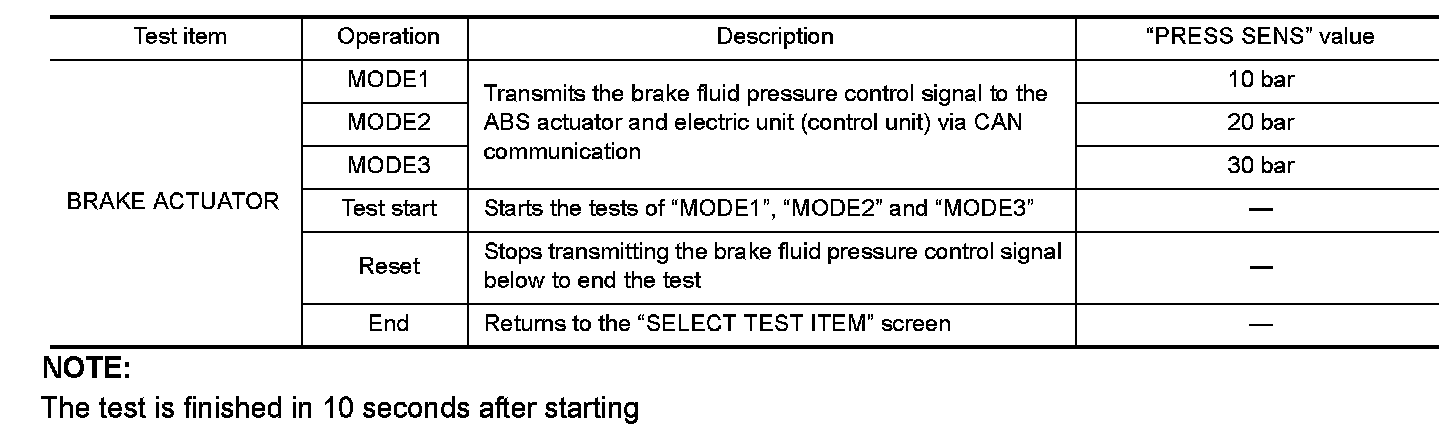

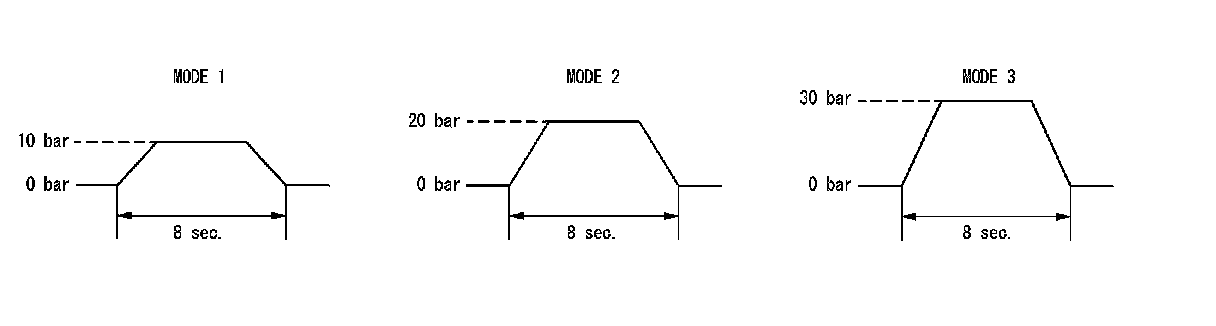

BRAKE ACTUATOR
NOTE:
The test can be performed only when the engine is running.





NOTE:
The test is finished in 10 seconds after starting

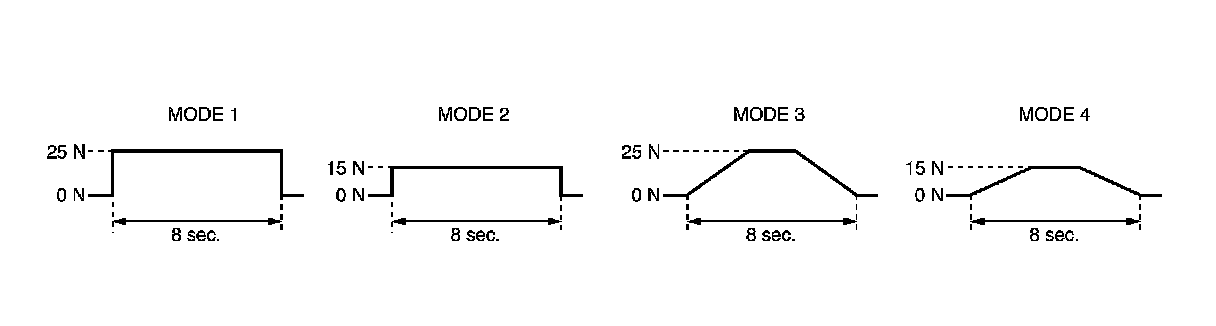

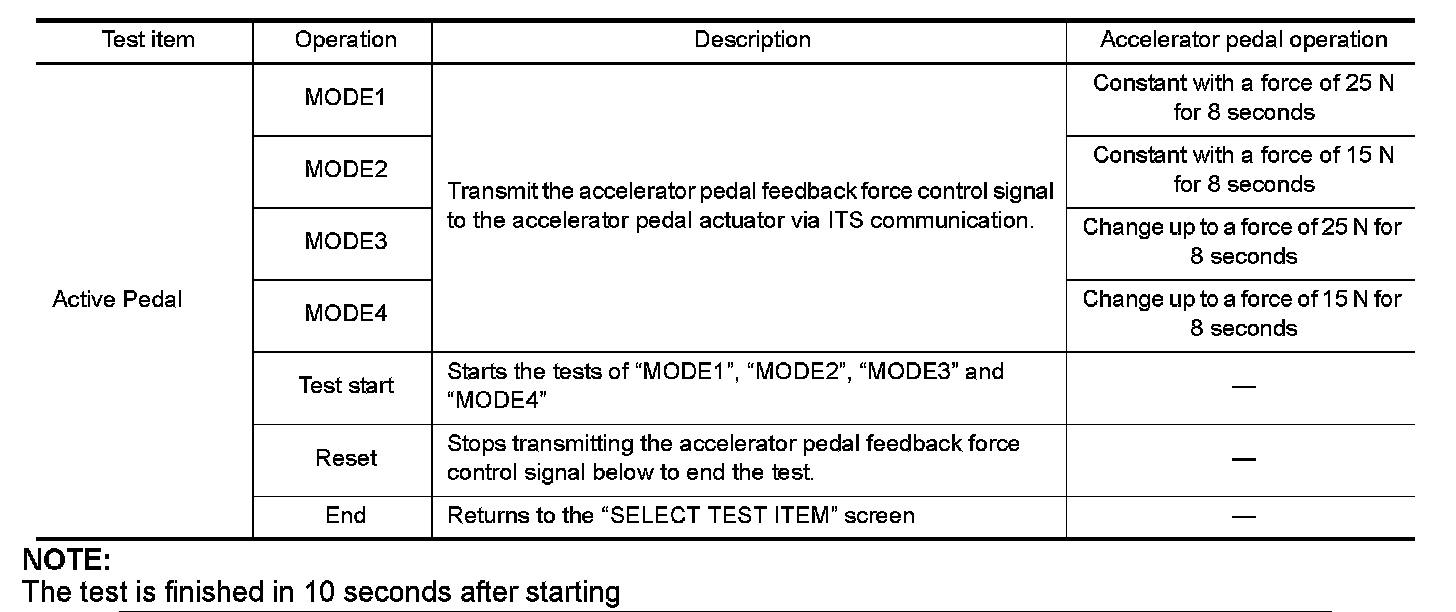

Active Pedal

CAUTION:
- Shift the selector lever to "P" position, and then perform the test.
- Never depress the accelerator pedal excessively. (The engine speed may rise unexpectedly when finishing the test.)
NOTE:
- Depress the accelerator pedal to check when performing the test.
- The test can be performed only when the engine is running.





NOTE:
The test is finished in 10 seconds after starting

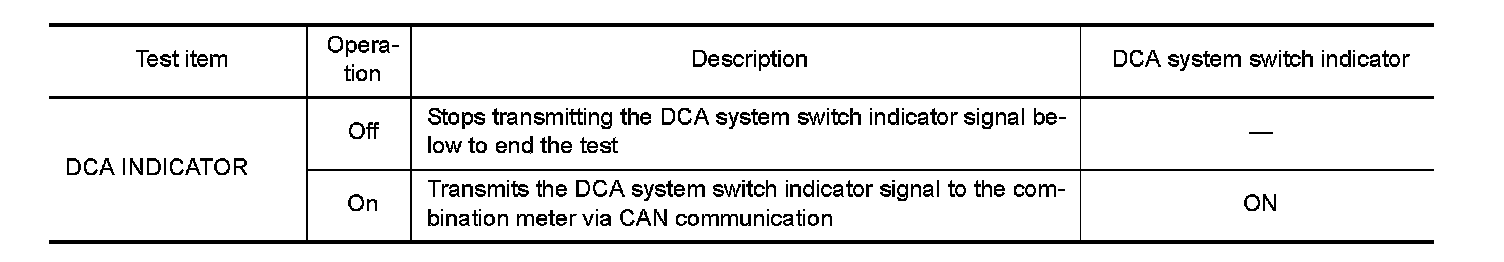

DCA INDICATOR
NOTE:
The test can be performed only when the engine is running.

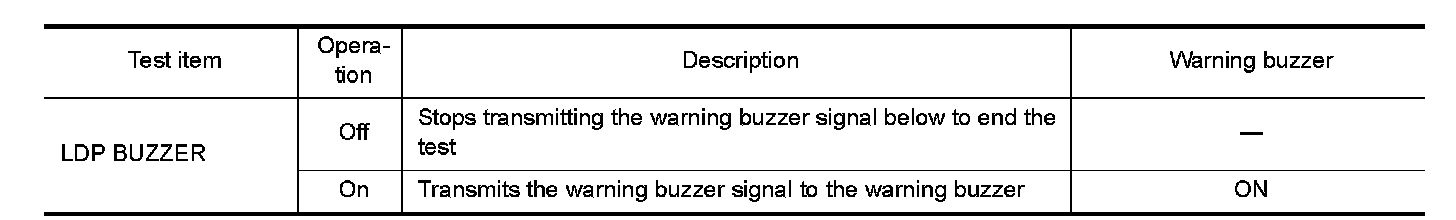

LDP BUZZER

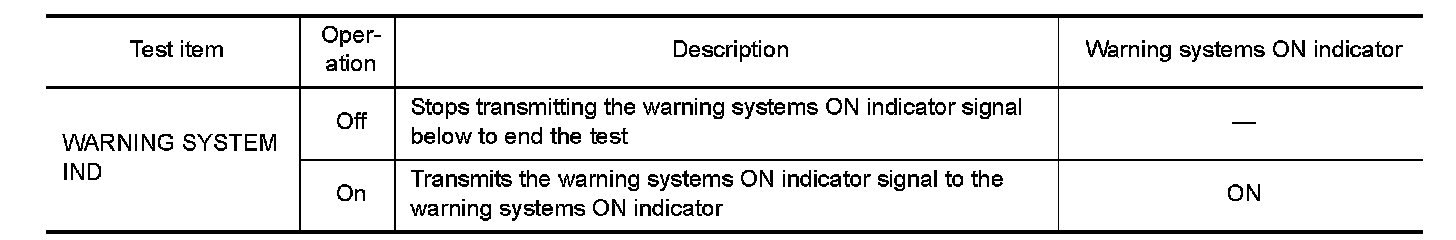

WARNING SYSTEM IND





LDP ON IND

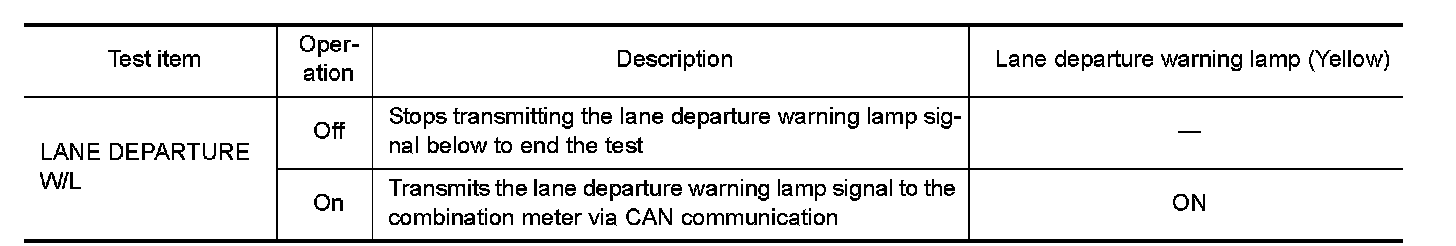

LANE DEPARTURE W/L





BSW/BSI WARNING LAMP

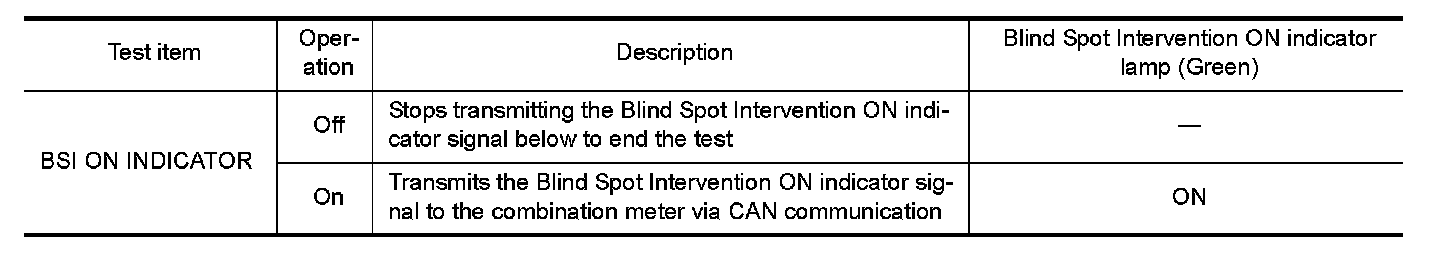

BSI ON INDICATOR
