Power Distribution Module: Service and Repair




IPDM E/R

Removal and Installation


CAUTION:
IPDM E/R integrated relays are not serviceable parts, and must not be removed from the unit.

REMOVAL

1.Disconnect the battery cable from the negative terminal.
2.Remove the IPDM E/R cover A.

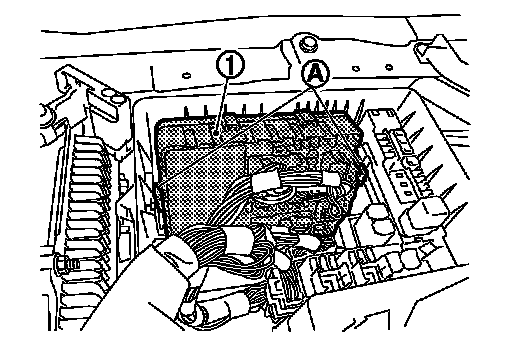

3.Remove the IPDM E/R (1) while pressing the pawls (A).
4.Disconnect the harness connector and then remove the IPDM E/R.

INSTALLATION

Install in the reverse order of removal.
