CONSULT Function (BCM - Intelligent Key)




DIAGNOSIS SYSTEM (BCM)

INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)

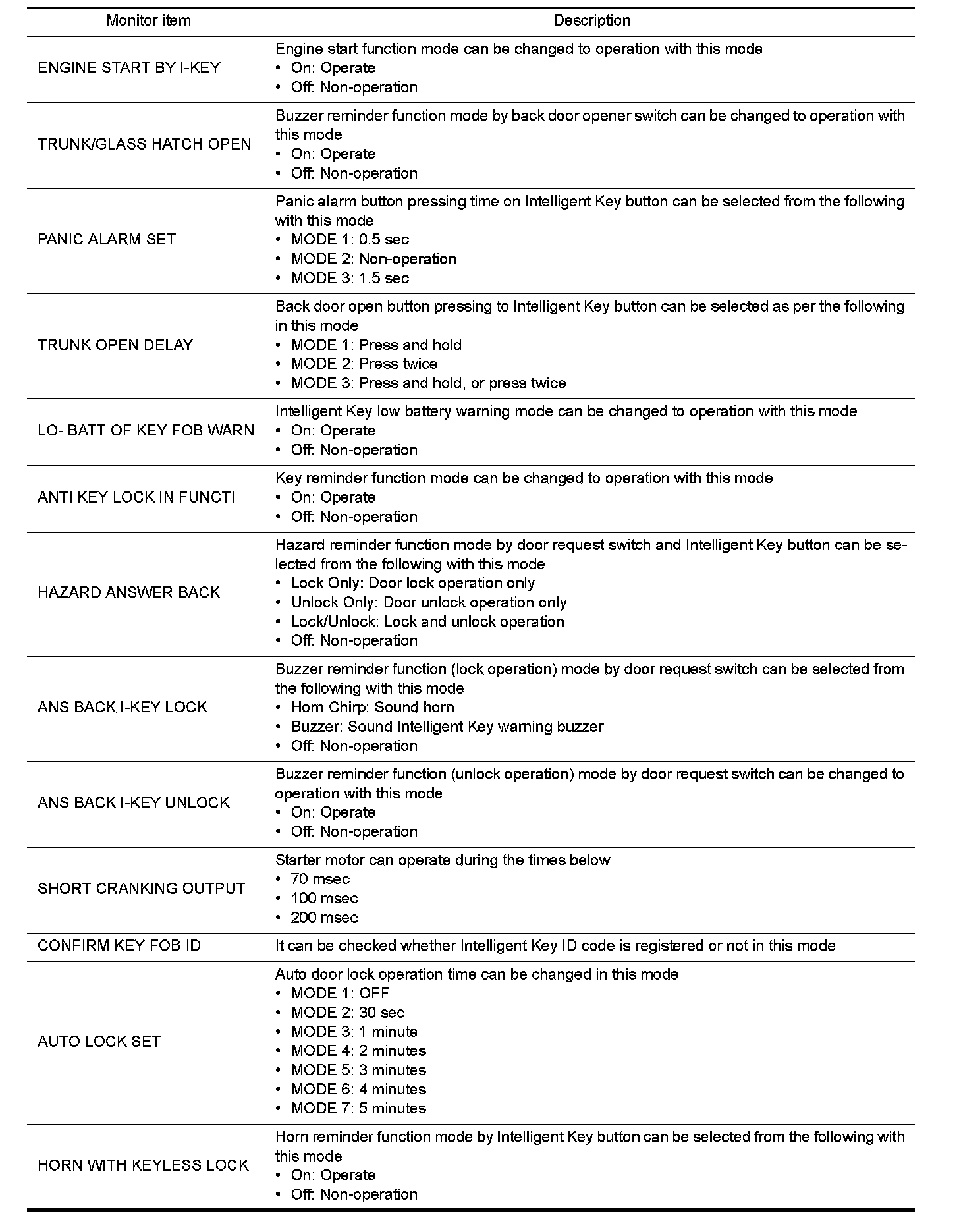

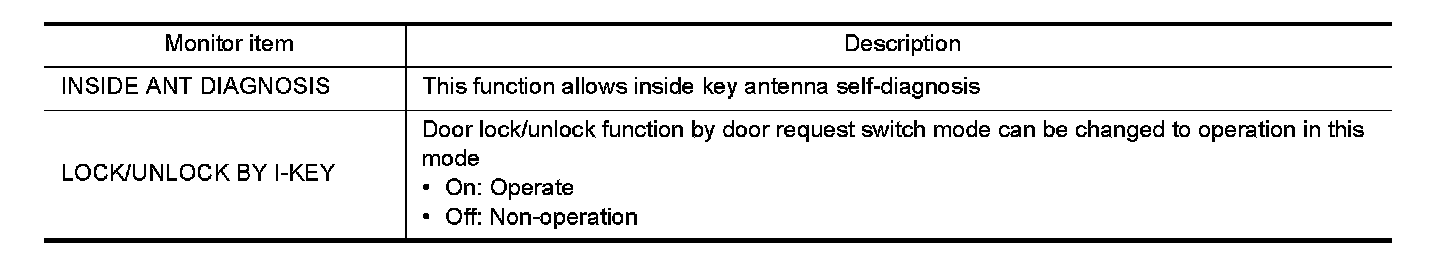

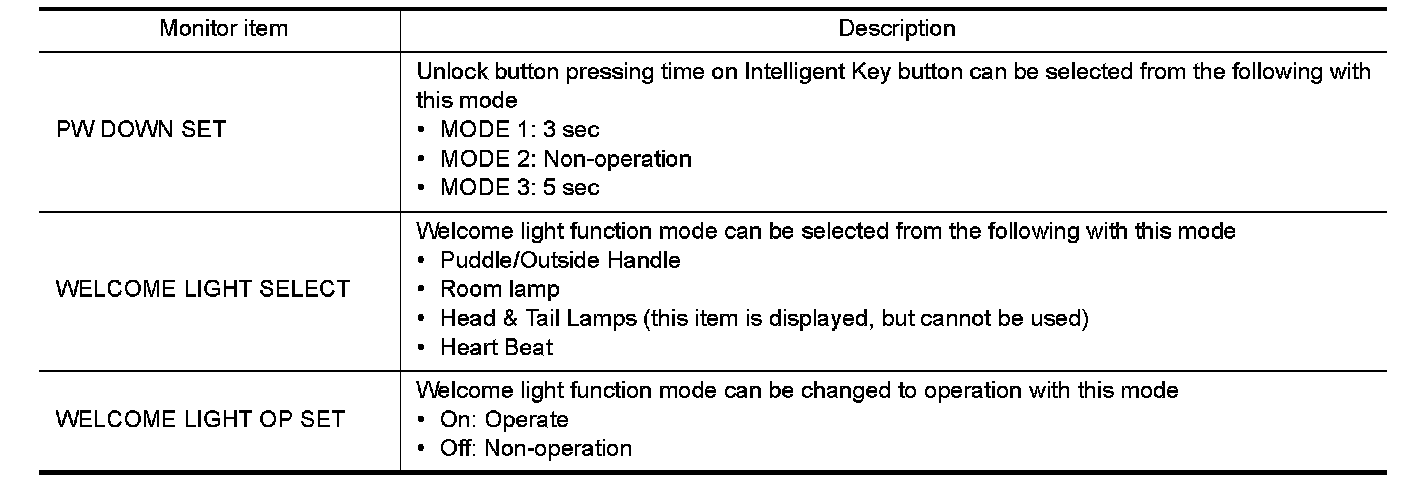

WORK SUPPORT

















SELF-DIAG RESULT

Refer to "DTC Index" Testing and Inspection.

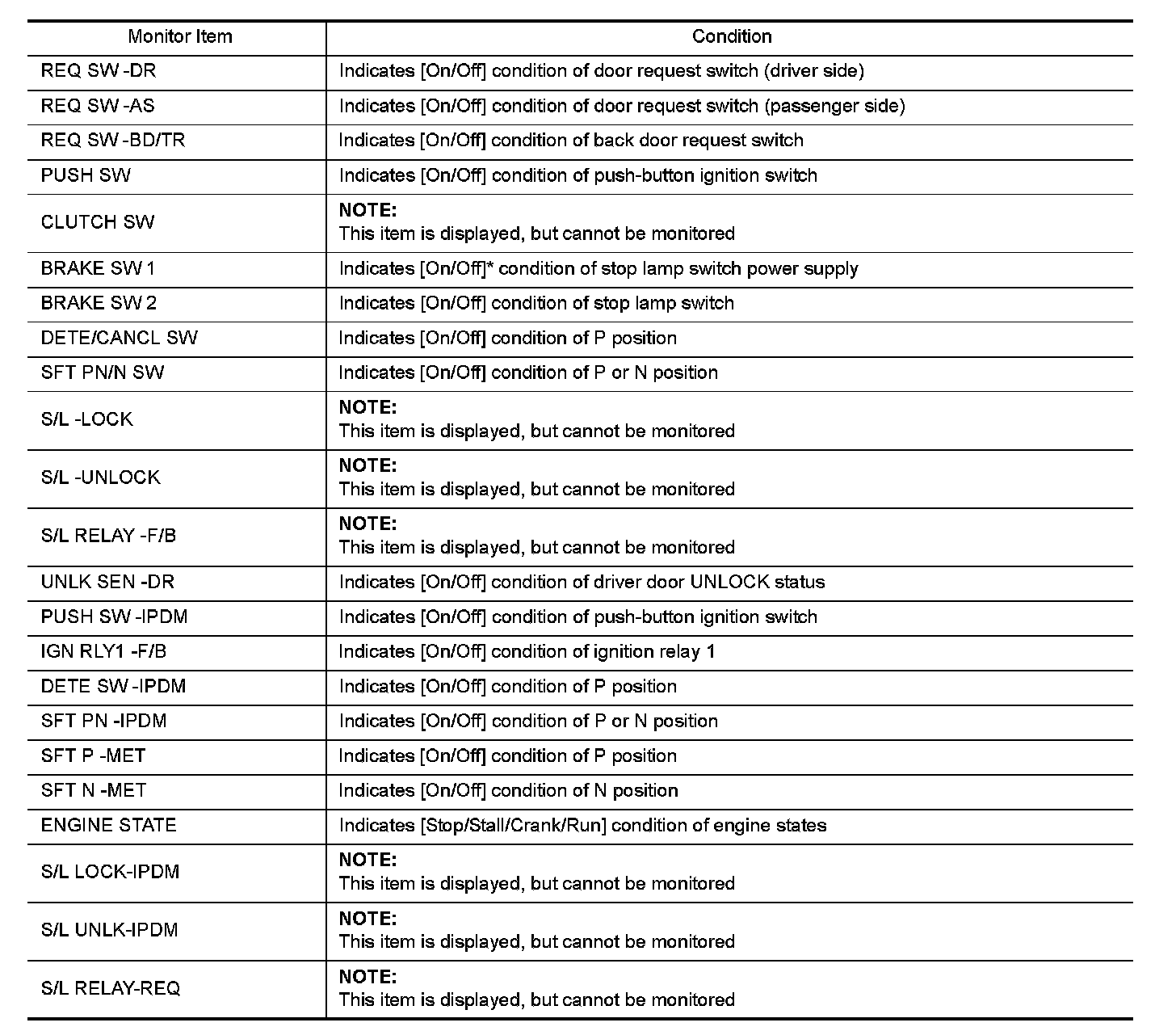

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

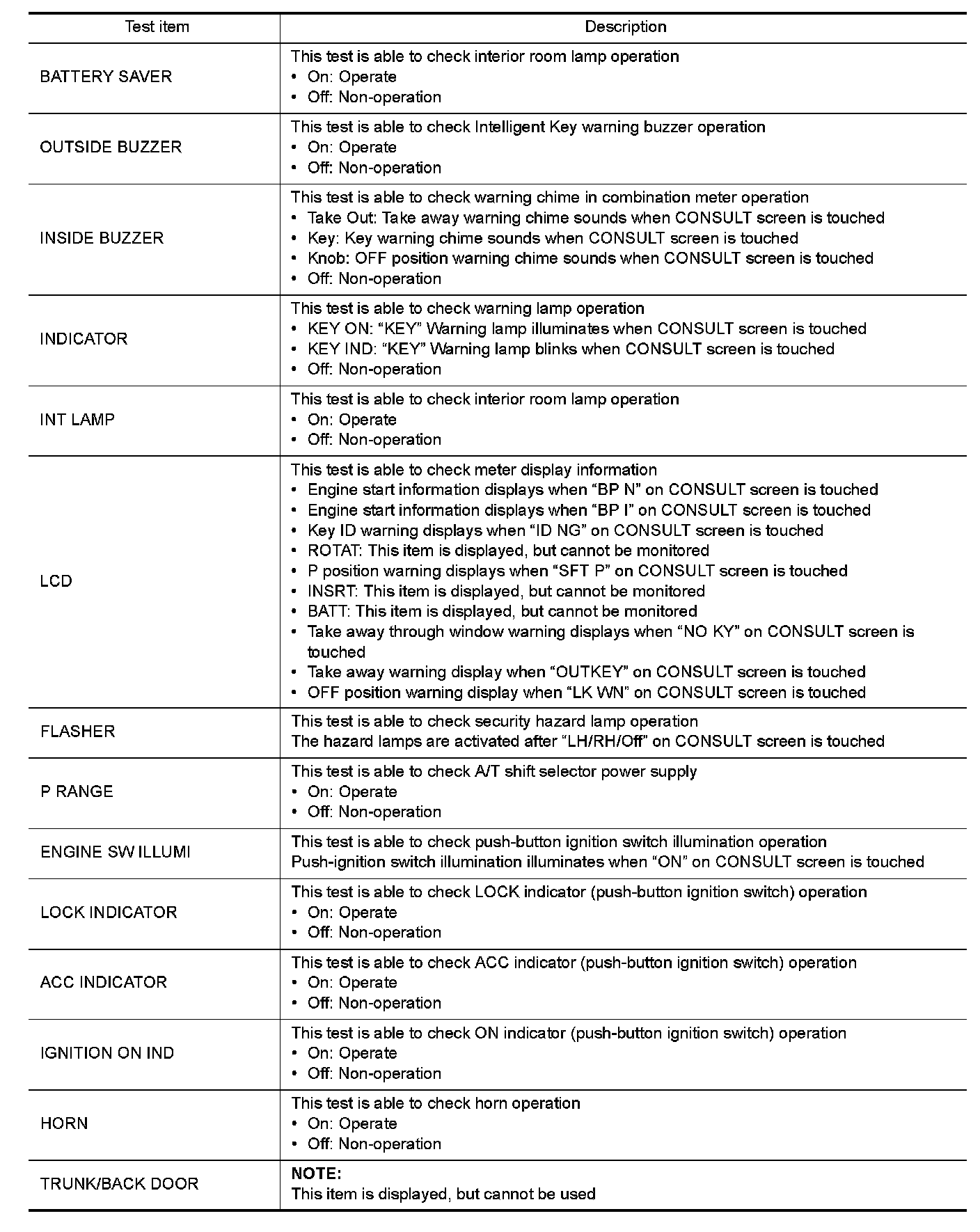

ACTIVE TEST
