For USA and Canada




COMPONENT PARTS

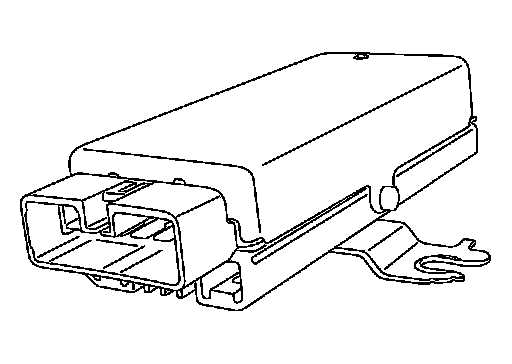

Fuel Pump Control Module






The fuel pump control module (FPCM) controls the discharging volume of the fuel pump by transmitting the FPCM control signals (Low/
Mid/High) depending on driving conditions.
