Inspection




SPARK PLUG

Inspection


INSPECTION AFTER REMOVAL

Use the standard type spark plug for normal condition.

Spark plug (Standard type): Refer to "Spark Plug" [1][2]Spark Plug.

CAUTION:





- Never drop or impact spark plug.

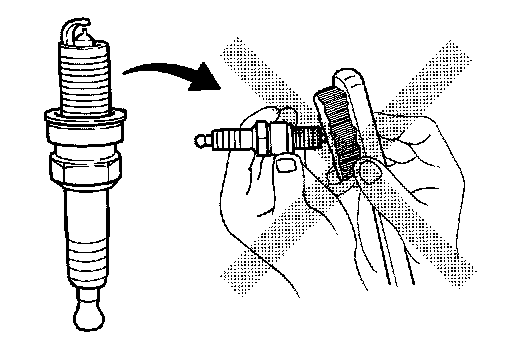

- Never use a wire brush for cleaning.

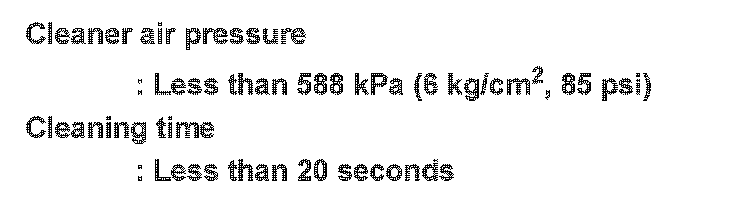

- If plug tip is covered with carbon, use spark plug cleaner to clean.





- Measure spark plug gap. When it exceeds the limit, replace spark plug even if it is within the specified replacement mileage. Refer to "Spark Plug" [1][2]Spark Plug.





- Spark plug gap adjustment is not required between replacement intervals.
