Removal and Installation

SPARK PLUG

Removal and Installation

REMOVAL

1.Remove engine cover. Refer to "Exploded View" Exploded View.
2.Remove ignition coil. Refer to "Exploded View" Exploded View.

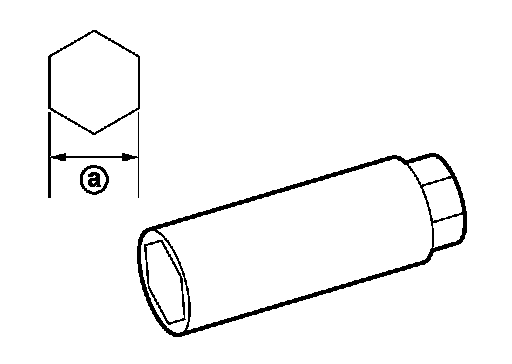

3.Remove spark plug with a spark plug wrench (commercial service tool).

INSTALLATION

Note the following item, installation is the reverse order of removal.

CAUTION:

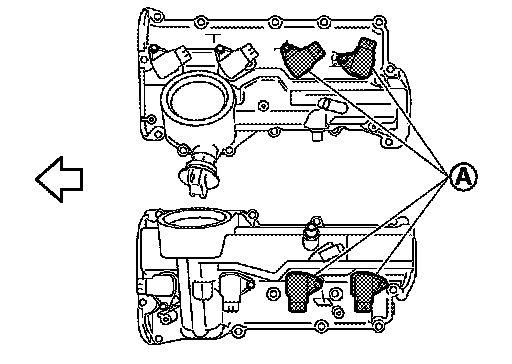

Install ignition coil marked with an identification mark (A) on cylinder No. 5, 6, 7 and 8.
