Power Seat Control Module: Service and Repair




DRIVER SEAT CONTROL UNIT

Removal and Installation


REMOVAL


CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

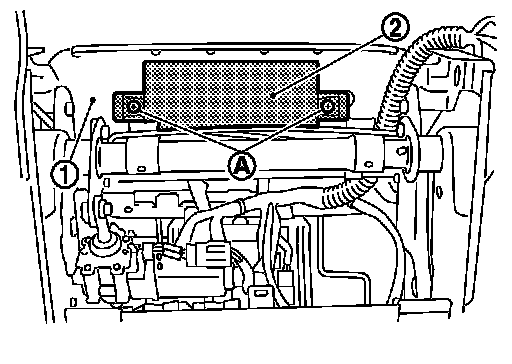

1.Remove driver seat (1). Refer to "Removal and Installation" Removal and Installation.
2.Remove screws (A).
3.Remove driver seat control unit (2).

INSTALLATION

Install in the reverse order of removal.

CAUTION:
Be sure to clump the harness to the right place.
NOTE:
After installing the driver seat, perform additional service when replacing control unit. Refer to "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description" Description.
