Timing Cover
Timing Chain Front Cover

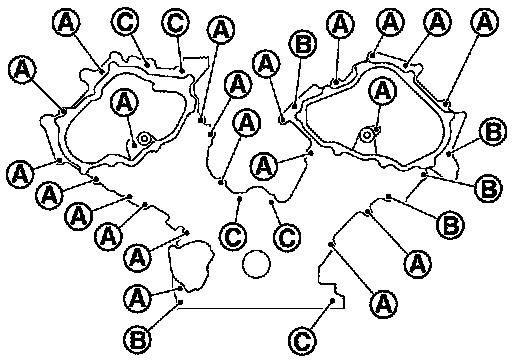

There are three types of mounting bolts.

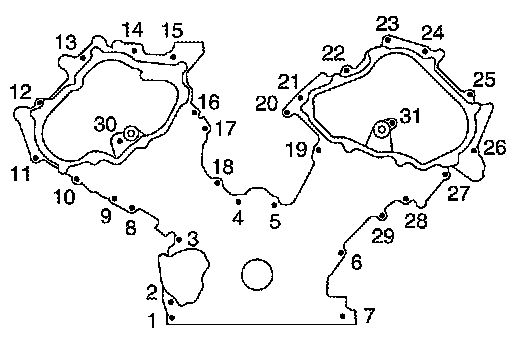

Tighten mounting bolts in numerical order as shown in the figure.
Tighten
12.8 Nm (1.3 kg-m, 9 ft-lb)
After all mounting bolts are tightened, retighten them in numerical order as shown in the figure.
Valve Timing Control Cover Bolts

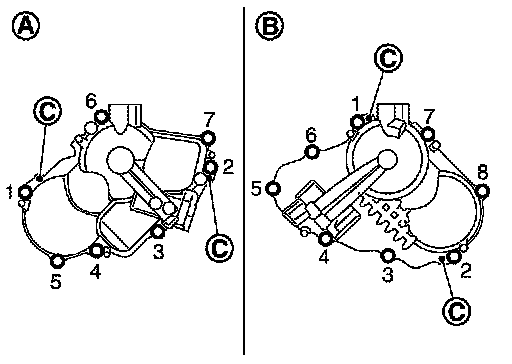

Tighten mounting bolts in numerical order as shown in the figure.
Tighten
11.3 Nm (1.2 kg-m, 8 ft-lb)
