Component Function Check




POWER WINDOW SERIAL LINK

POWER WINDOW MAIN SWITCH : Component Function Check


1. CHECK POWER WINDOW SWITCH OUTPUT SIGNAL

With CONSULT

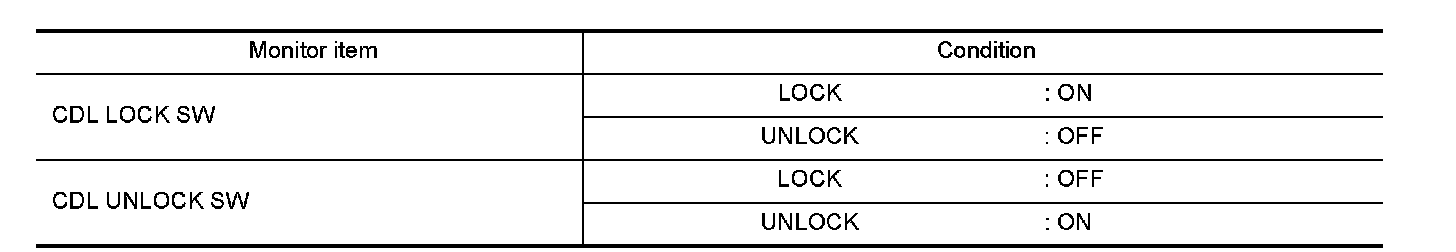

Check ("CDL LOCK SW ", "CDL UNLOCK SW") in "DATA MONITOR" mode for "POWER DOOR LOCK SYSTEM" with CONSULT. Refer to "DOOR LOCK : CONSULT Function (BCM DOOR LOCK)" CONSULT Function.





Is the inspection result normal?
YES- Power window serial link is OK.
NO- Refer to "POWER WINDOW MAIN SWITCH : Diagnosis Procedure" Diagnosis Procedure.
