EGR Backpressure Transducer: Locations

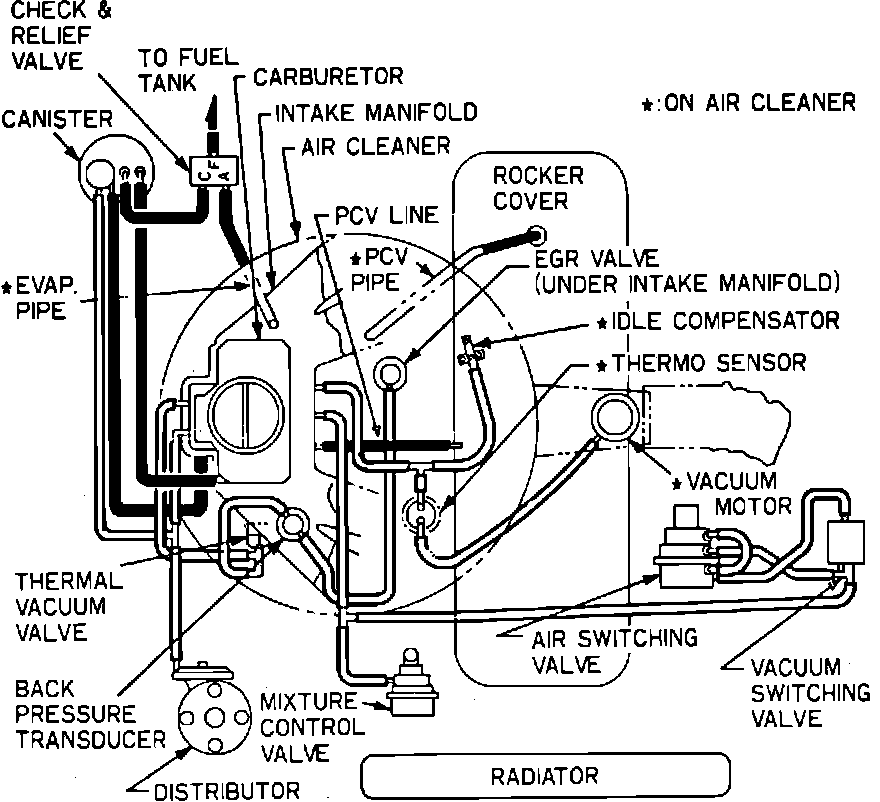

Emission Control Component Locations.:




Front RH Side Of Engine

Applicable to: 1981-83 California Models
