Recall - EGR Valve Defect

BC82-ISZ-001

JUNE 15, 1982

EMISSION CONTROLS/EXHAUST

CALIFORNIA P'UP DIESEL EGR VALVE REPLACEMENT

VEHICLES AFFECTED

Califoniia P'UP diesels with the following V.I.N.'s:

2WD Shortbed JAABL14S3CO707798 to JAABL14S5CO713537
2WD Longbed JAACL14S8CO707753 to JAACL14S6CO713602
4WD Shortbed JAABR14S3CO707752 to JAABR14S5CO710989


SERVICE INFORMAION

On the affected vehicles, EGR valves may develop a crack at the weld fastening the valve plate to its shaft. A broken weld may cause the valve plate to detach and enter the engine, resulting in severe engine damage and excessive emissions.

OWNER NOTIFICATION

All owners of affected vehicles will be notified of this possible defect by letter from American Isuzu Motors Inc.. Each dealership will be supplied with a detailed listing of affected vehicles shipped to the dealership which contains VIN and detailed owner information. If none of the affected vehicles were shipped to your dealership, you will not receive a listing of vehicle and owner information.

SERVICE PROCEDURE

Any affected vehicle must have the ECM valve replaced, regardless of time or mileage, according to the following procedure:

1. Check vehicle for a Campaign Identification Label located on the underside of the engine compartment hood above and to the right of the vacuum routing diagrarm (see fig. 1). If label is present, the vehicle has been corrected.
2. If the vehicle does not have a Campaign Identification Label, remove the air cleaner assembly and disconnect EGR vacuum line.

3. Loosen the large (30mm) flare nut on EGR exhaust pipe and the 2 EGR fastening bolts. Remove EGR Valve.

4. Inspect the EGR valve. If the EGR valve plate is missing, the intake manifold and/or cylinder head must be removed to retrieve the valve plate. The missing valve plate must be taped to the original EGR valve for parts scrapping.

5. After removing the remains of the old EGR gasket, install a new EGR gasket and a new EGR valve. Fasteners should be installed finger tight until all fasteners are correctly threaded.

Torque fasteners to:
30 mm nut: 36 ft. lbs. 2 hex bolts: 14 ft. lbs.

6. Reinstall vacuum line and air cleaner.

7. Run engine until temperature gauge indicates normal operating temperature. Visually check EGR diaphragm for movement above 1600 RPM.

CAMPAIGN IDENTIFICATION LABEL

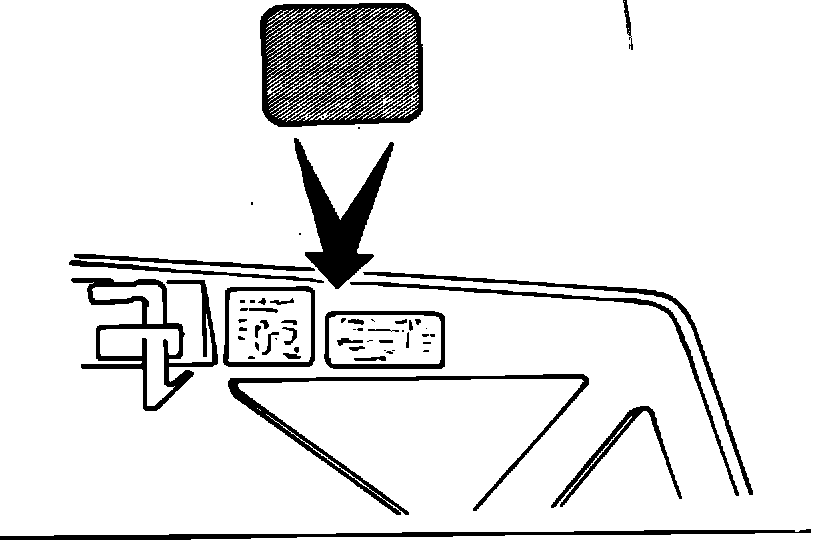

FIG. 1, CAMPAIGN IDENTIFICATION LABEL:

After installing a new EGR valve, a Campaign Identification Label must be affixed to the underside of the engine compartment hood above and to the right of the engine vacuum hose routing diagram (see fig. 1).
PARTS INFORMATION
To repair an affected vehicle, 1 each of the following parts will be required:

EGR Gasket 8-94241-060-1 $ .44 Dealer cost
EGR Valve 8-94114-422-0 $19.13 Dealer cost
Campaign Identification Label No charge

Sufficient parts will be automatically shipped and charged to each dealership to repair all vehicles on the listing of affected vehicles provided. Additional parts are available using normal procedures. This also applies to dealerships who do not receive the initial supply. When it has been determined that all eligible vehicles have been repaired, AIMI will allow any unused EGR valves and gaskets to be returned for credit.
WARRANTY INFORMATION
Operation Number: 2-ISZ-001
Time Allowance: 0.5 (includes 0.1 administrative allowance)
Trouble Code: 07
Parts: Dealer cost + 25%
