Injection Nozzle Pressure

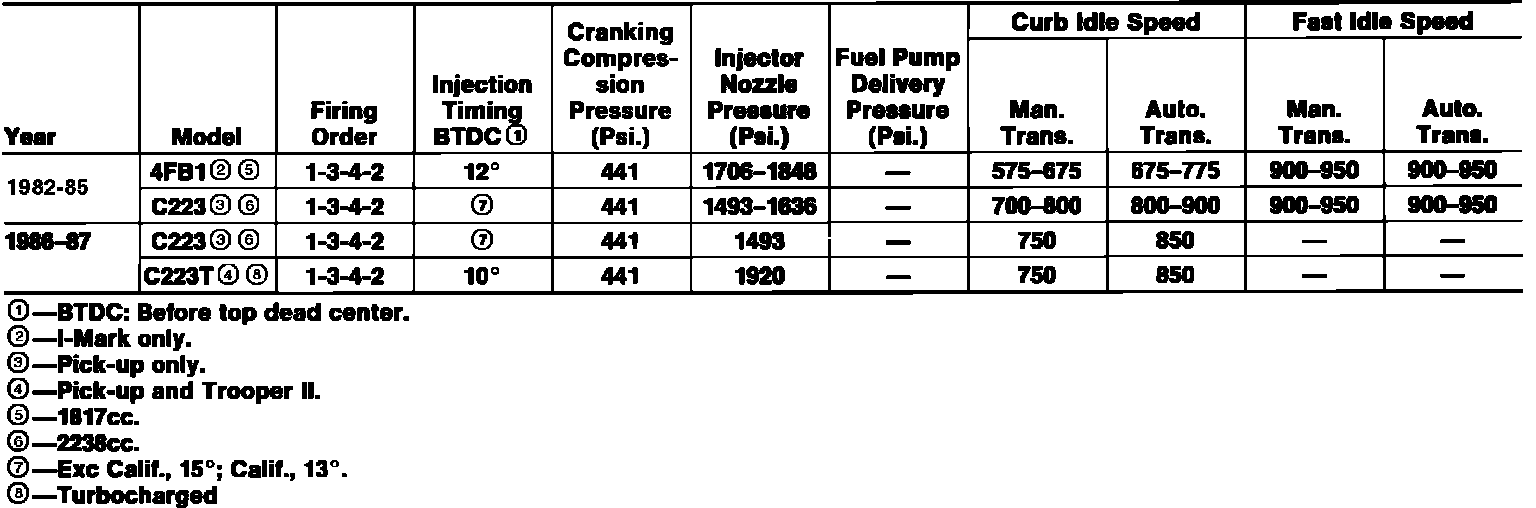

Fig. A Diesel Engine Performance Specifications:

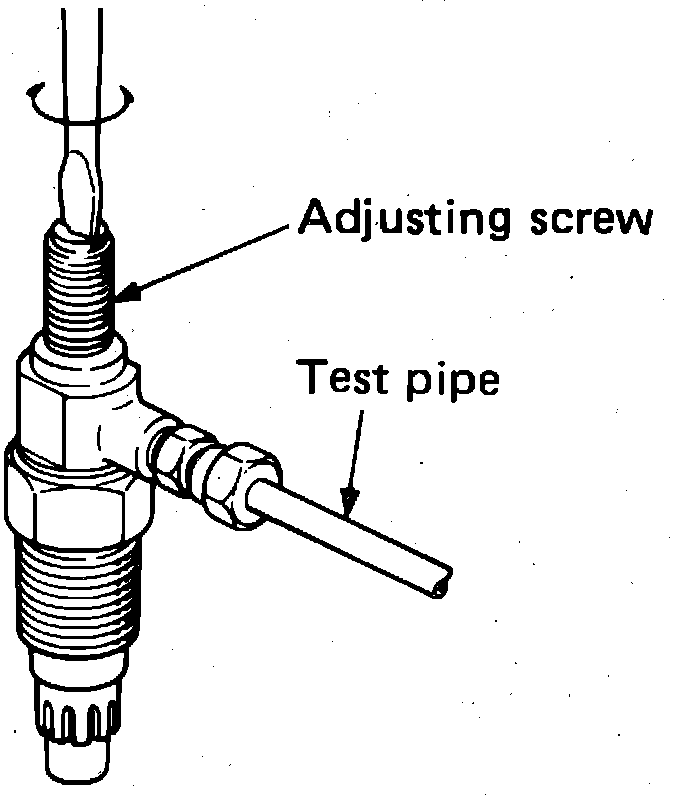

Fig. 7 Adjusting injection nozzle pressure:

Refer to ``Diesel Engine Performance Specifications'' for specified injection nozzle starting pressure.
1. Install injection nozzle and nozzle holder assembly on suitable nozzle tester. Follow manufacturer's instruction for proper operating procedure.
2. If injection pressure is not as specified, adjust by turning pressure adjusting screw until specified pressure is obtained, Fig. 7.
