Home
>>
Isuzu
>>
1987
>>
Pickup L4-2254cc 2.3L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Carburetor
Carburetor

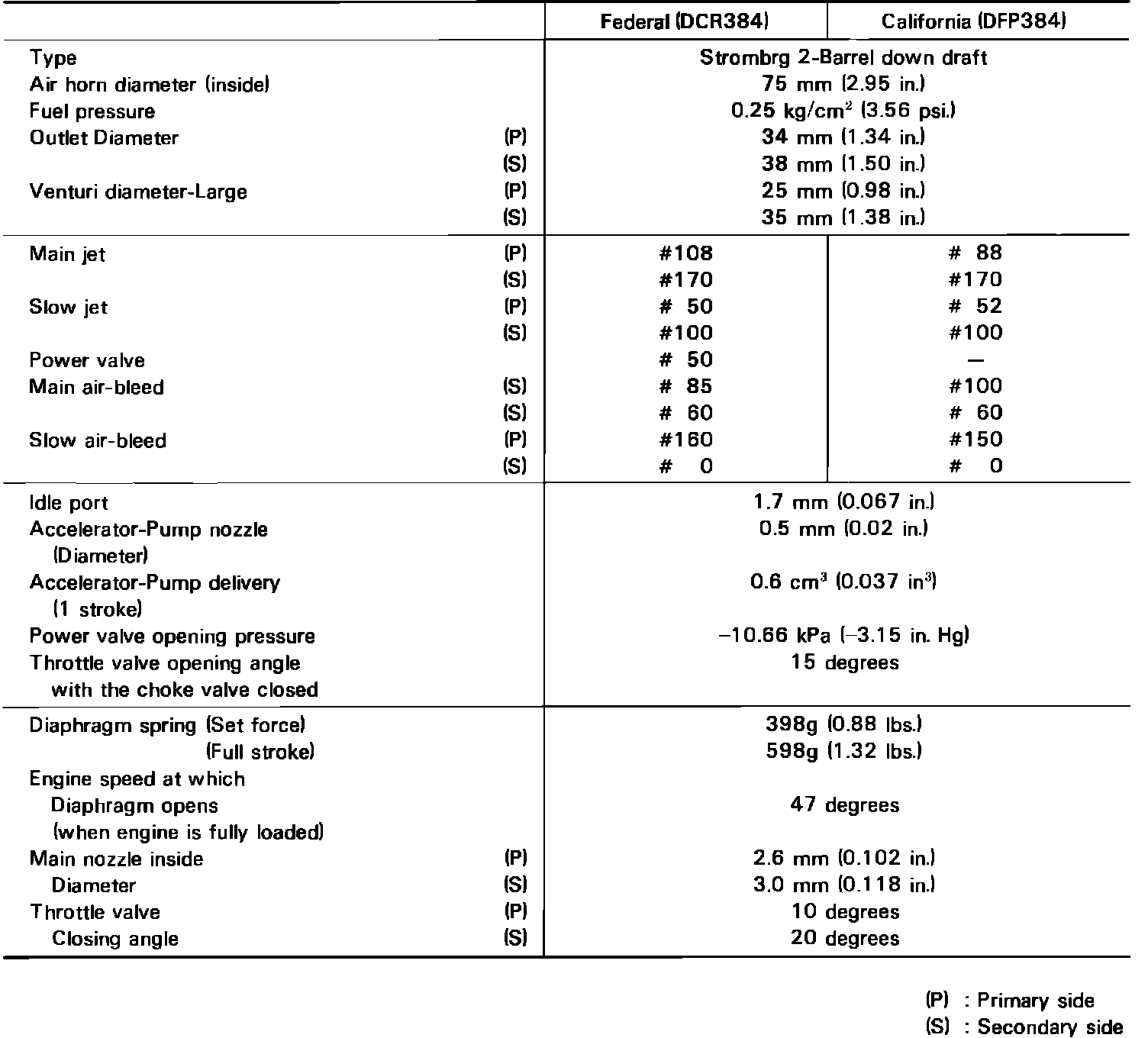

Fig. 22 Carburetion ID and Specifications:
