Home >> Isuzu >> 1988 >> Pickup 2WD L4-2.3L (4ZD1) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

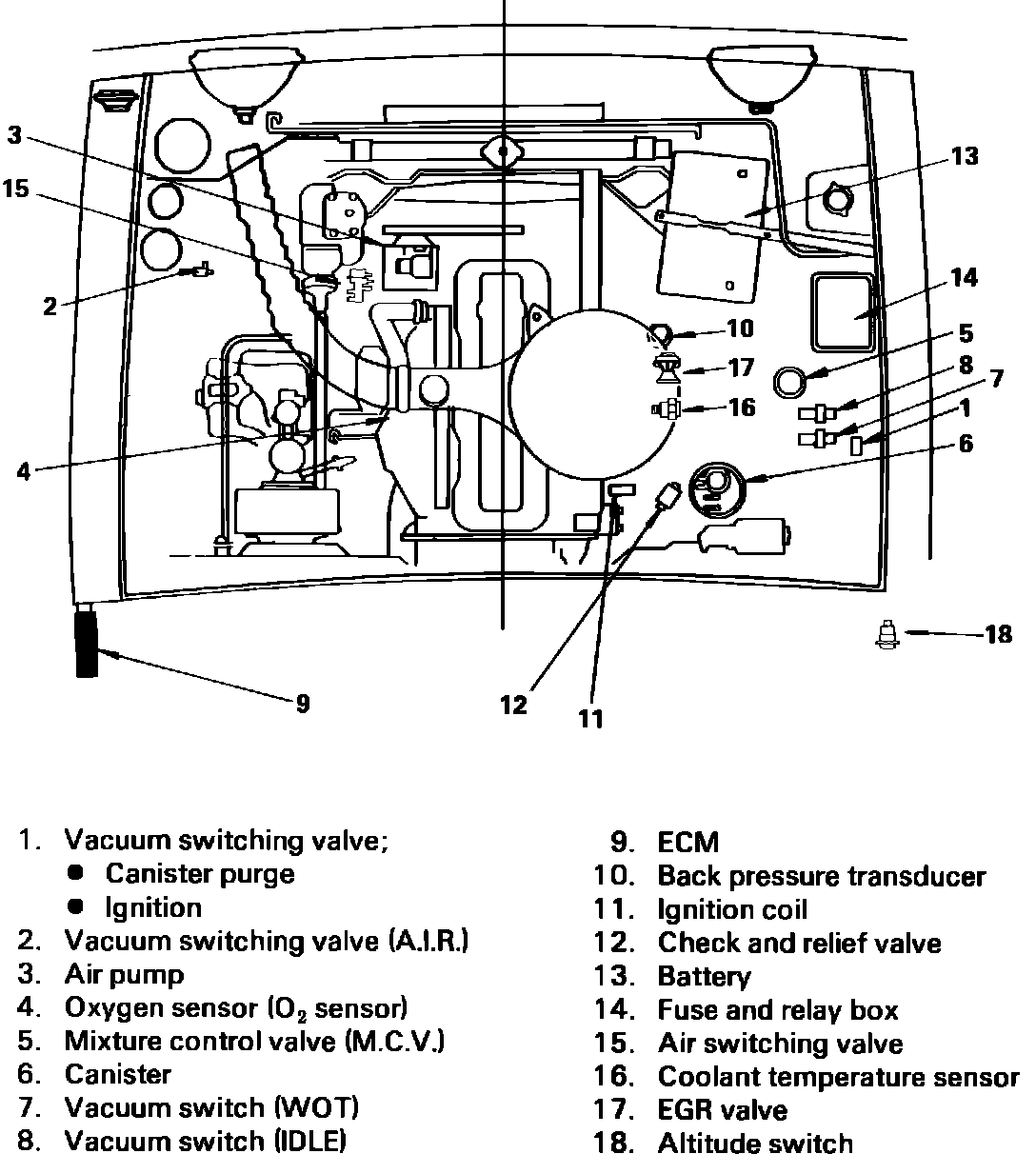

Fig. 240 Underhood Component Location:
