Neutral Safety Switch: Service and Repair

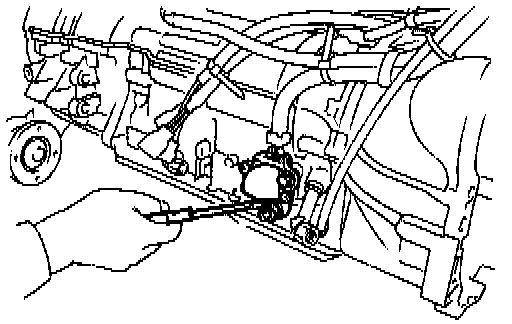

NEUTRAL START SWITCH
REMOVAL
Unstake the lock washer.
Remove the nut and bolts, and then remove the
neutral start switch
.
Remove the lock washer and grommet.
