Speed Control Power Source Check

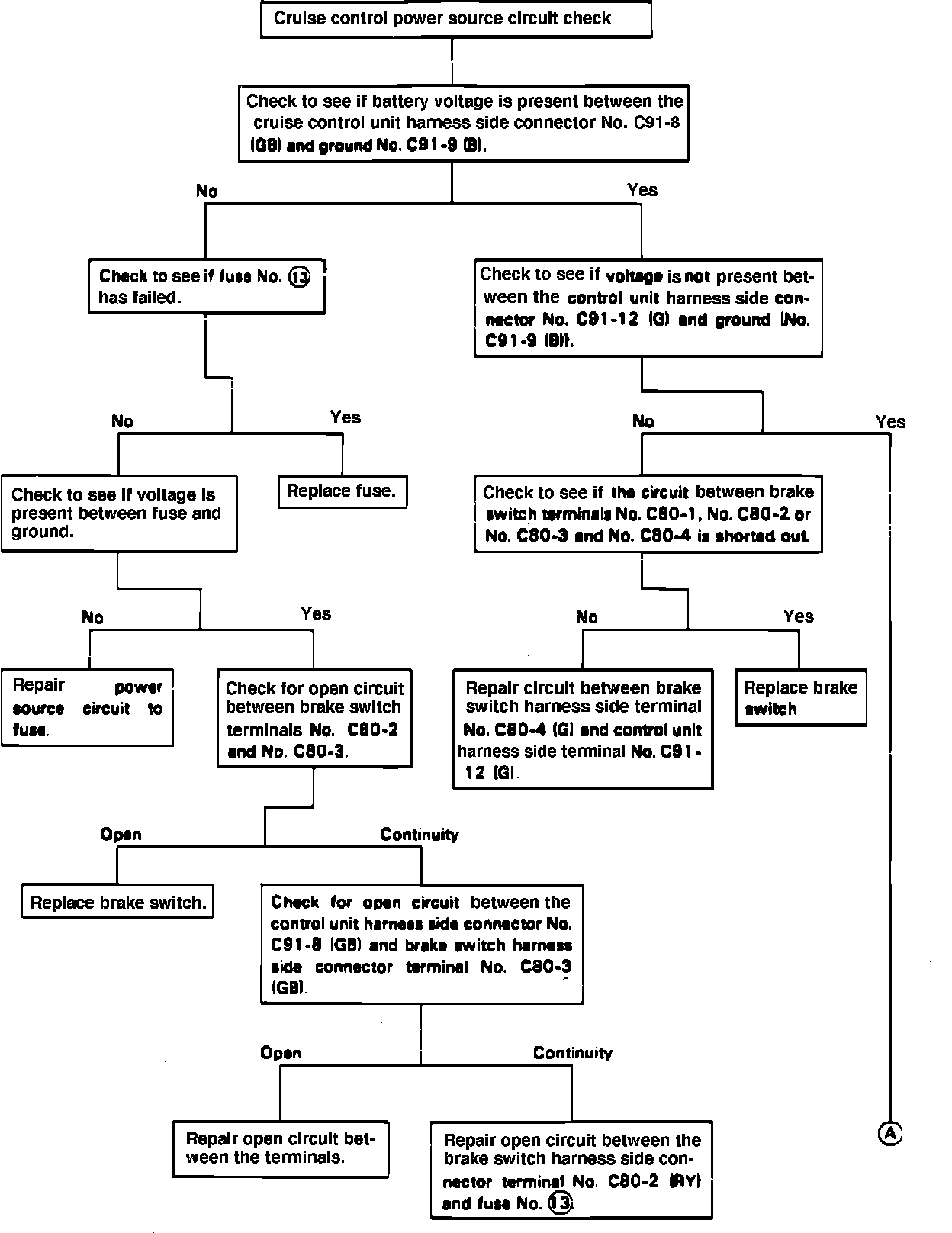

Fig. 20 Speed control power source check (Part 1 of 3).:

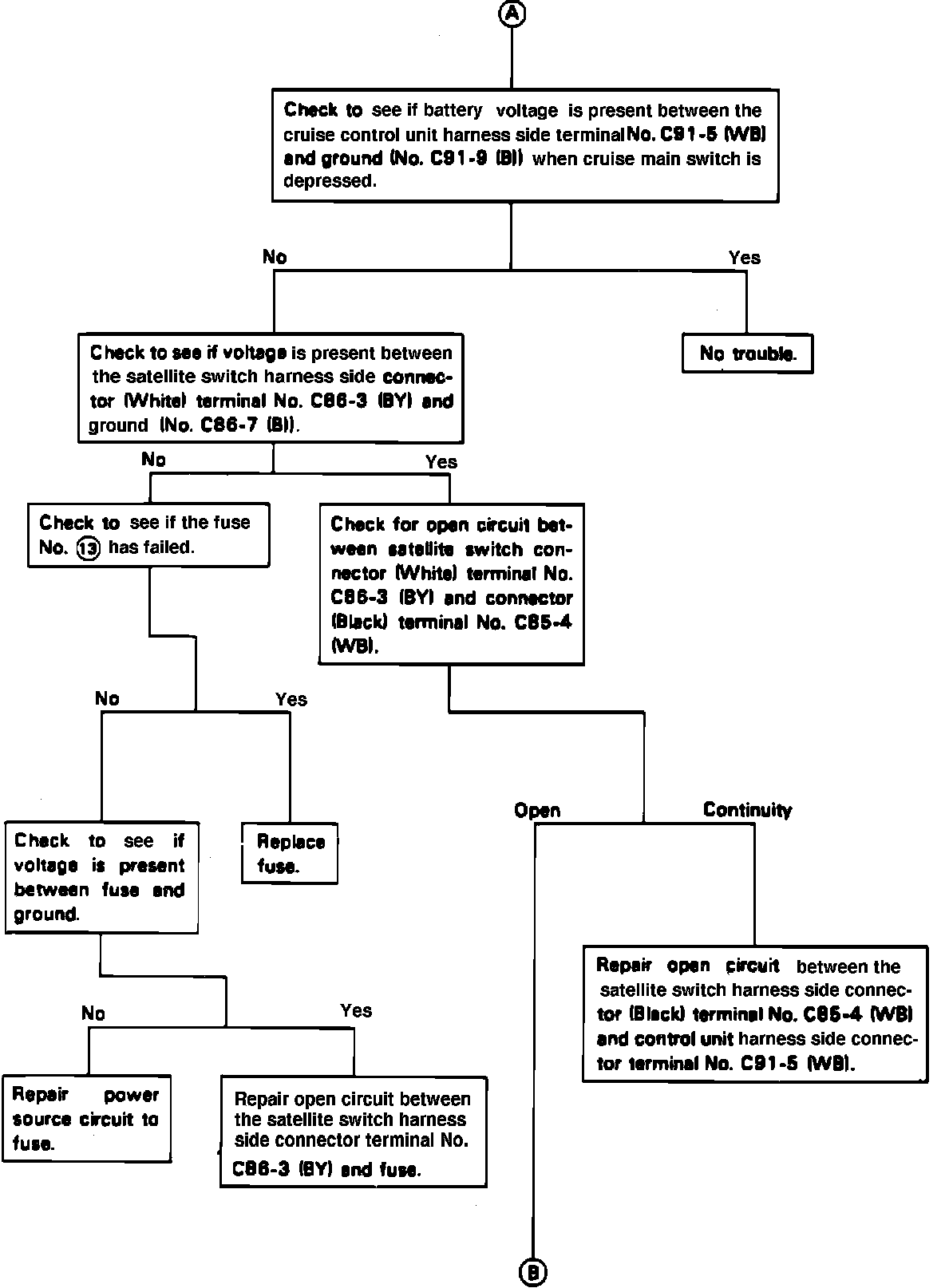

Fig. 20 Speed control power source check (Part 2 of 3).:

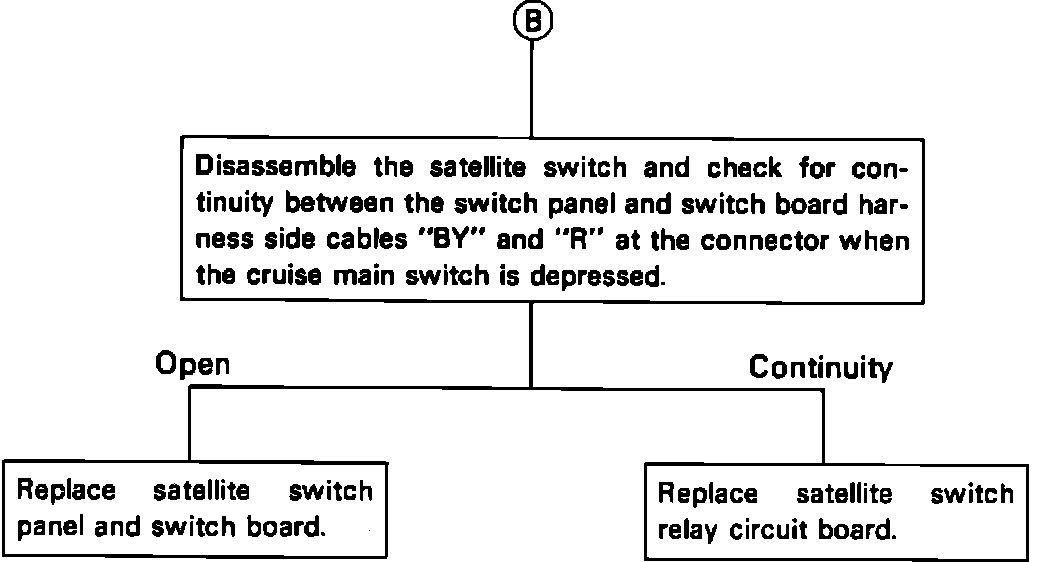

Fig. 20 Speed control power source check (Part 3 of 3).:
