Symbol Identification

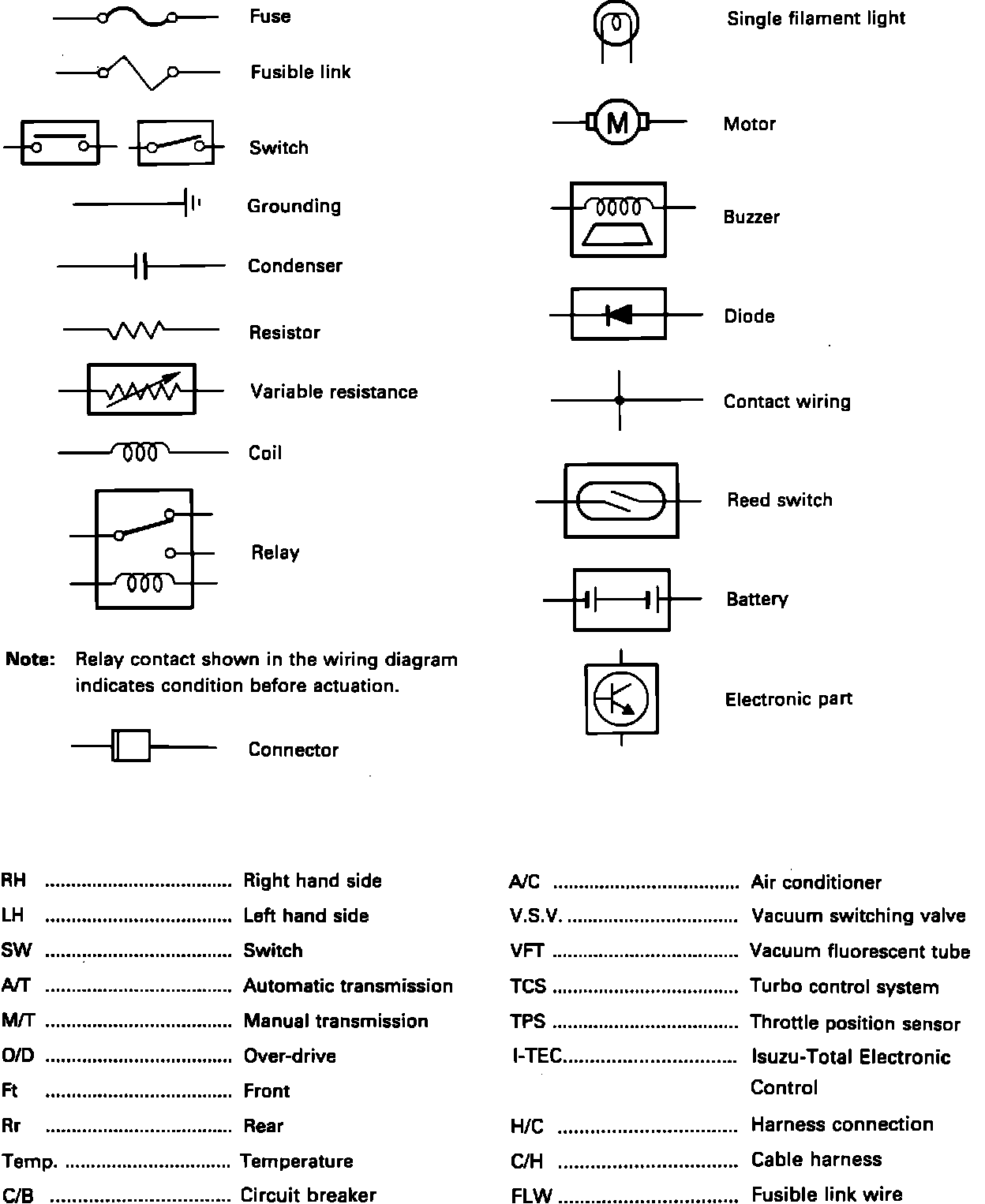

Schematic Symbols:






WIRE COLOR CODE IDENTIFICATION

Black: B
Blue: L
Brown: Br
Gray: GY
Green: G
Light Green: Lg
Orange: O
Pink: P
Red: R
Sky Blue: Sb
Violet: V
White: W
Yellow: Y
