Neutral Safety Switch: Testing and Inspection
Inhibitor Switch Testing:
1.

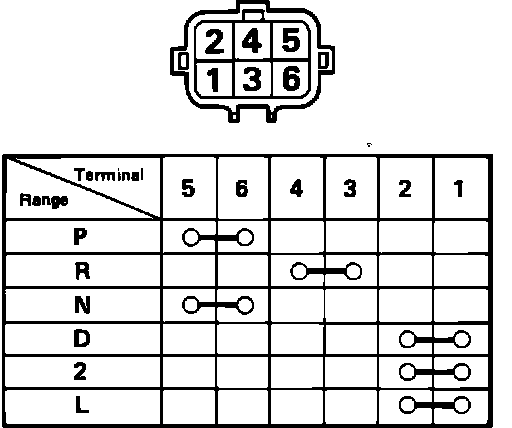

With an ohmmeter, check for continuity across the terminals and at the switch positions indicated on the accompanying chart.
2.
If continuity is not as indicated, replace inhibitor switch.
