Idle Switch

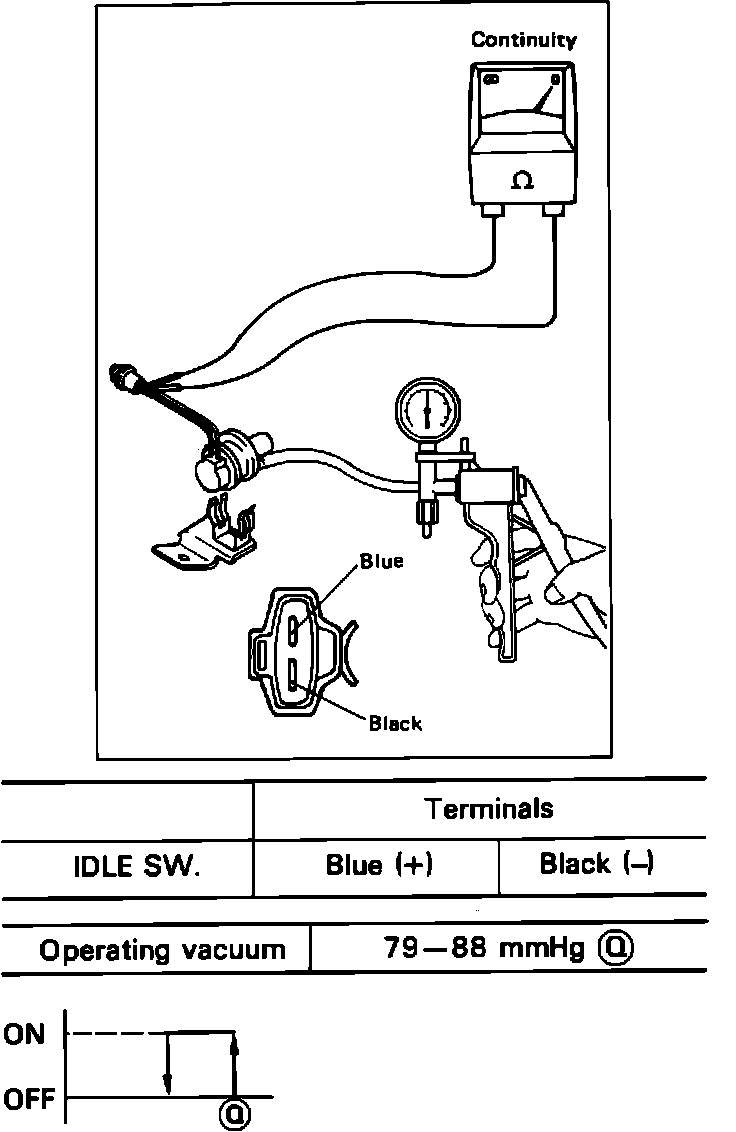

Idle Switch Testing:






1. Disconnect idle switch vacuum hose and electrical connector.

2. With an ohmmeter, ensure that there is no continuity between switch connector positive and negative terminals.

3. With a hand vacuum pump, apply the specified vacuum and check that there is now continuity between the switch terminals.

4. Replace the switch if it fails these tests.
