Home >> Isuzu >> 1990 >> Trooper II V6-2827cc 2.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems >> Input and Output Distribution >> Part 2 of 3

Part 2 of 3

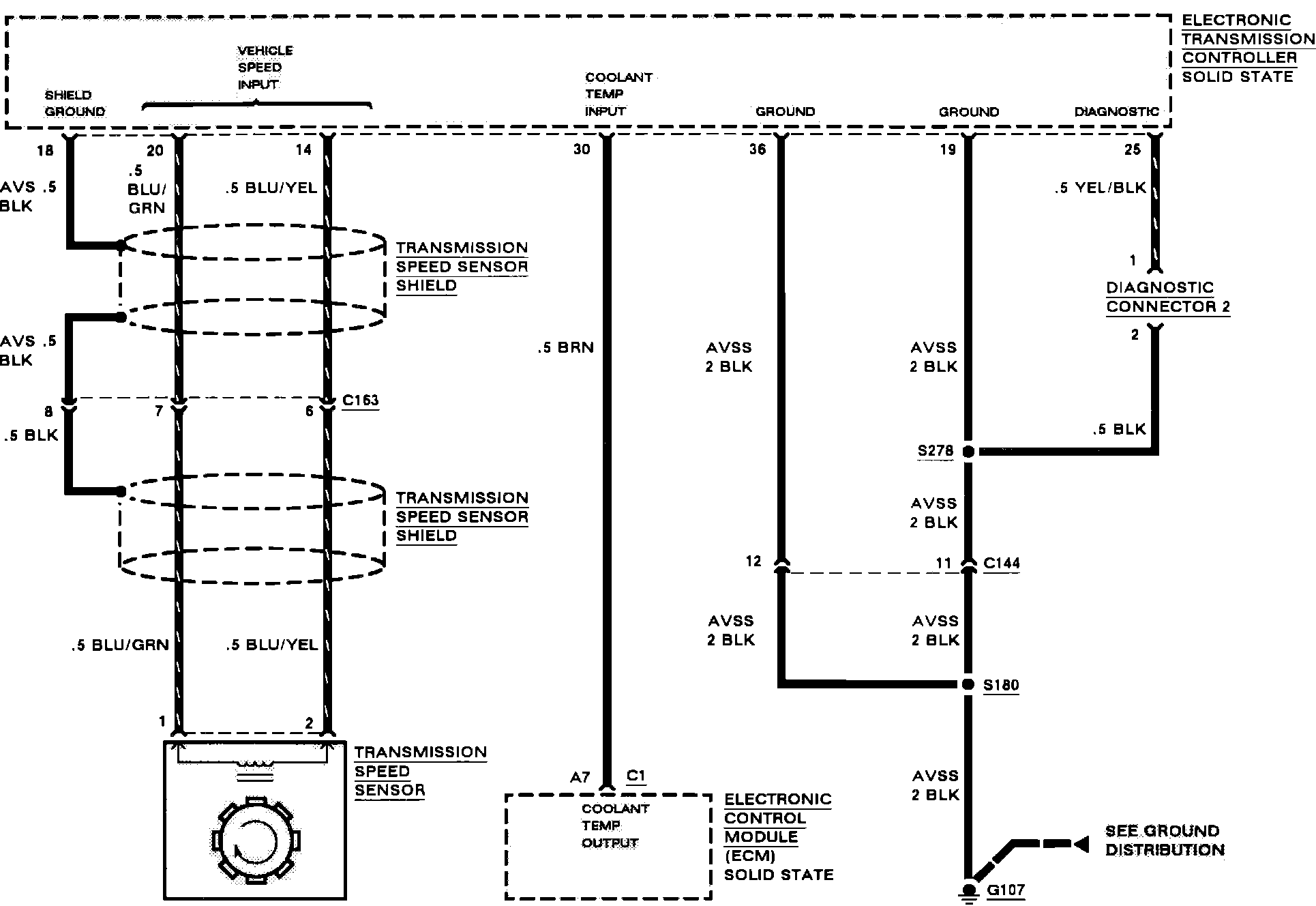

Automatic Transmission Control: Inputs And Outputs Distribution:
