Home
>>
Isuzu
>>
1990
>>
Trooper II V6-2827cc 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
Internal Electronic Transmission Controls
Internal Electronic Transmission Controls

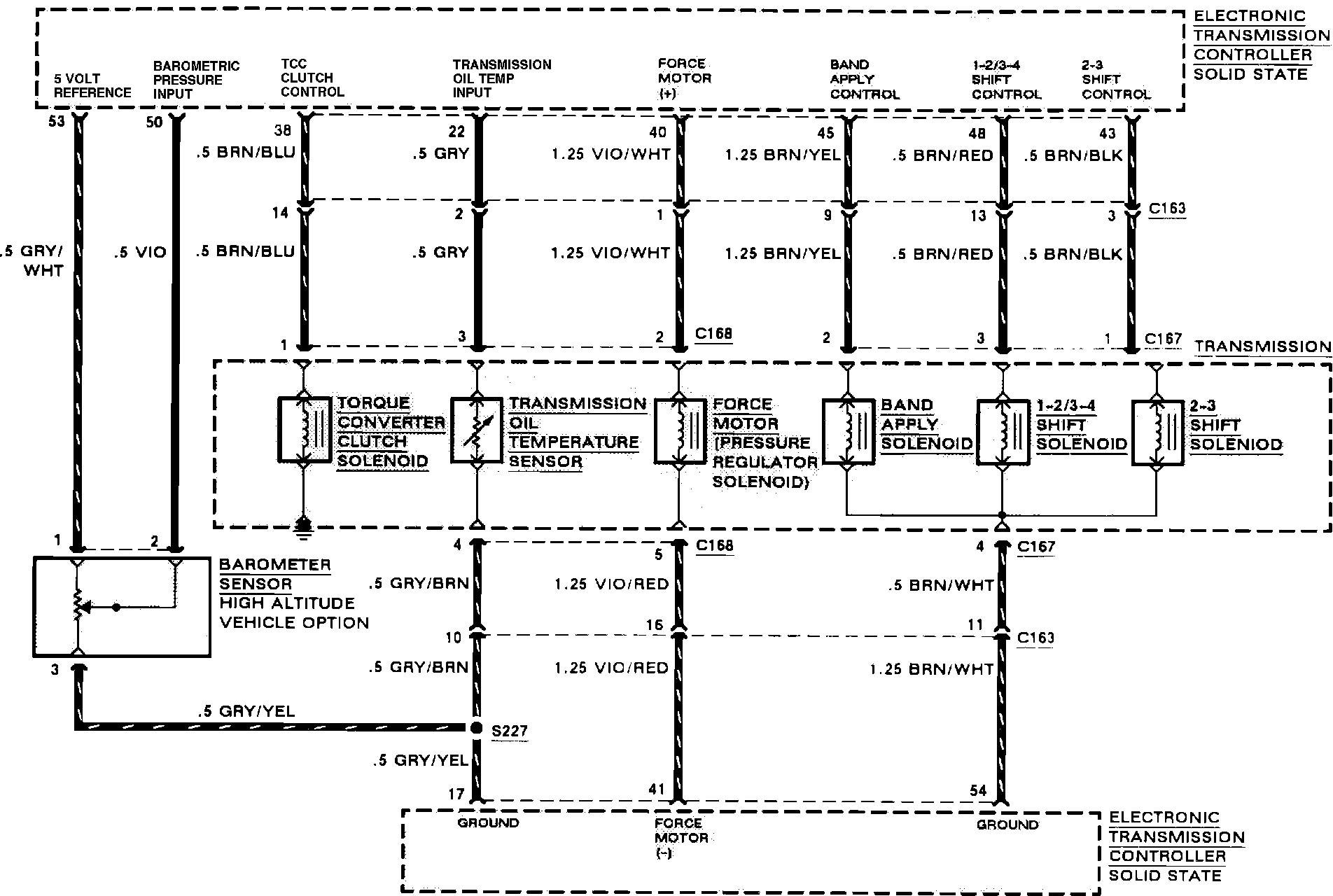

Automatic Transmission Control: Internal Electronic Transmission Controls:
