Trooper II V6-2827cc 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
Main Relay
Main Relay

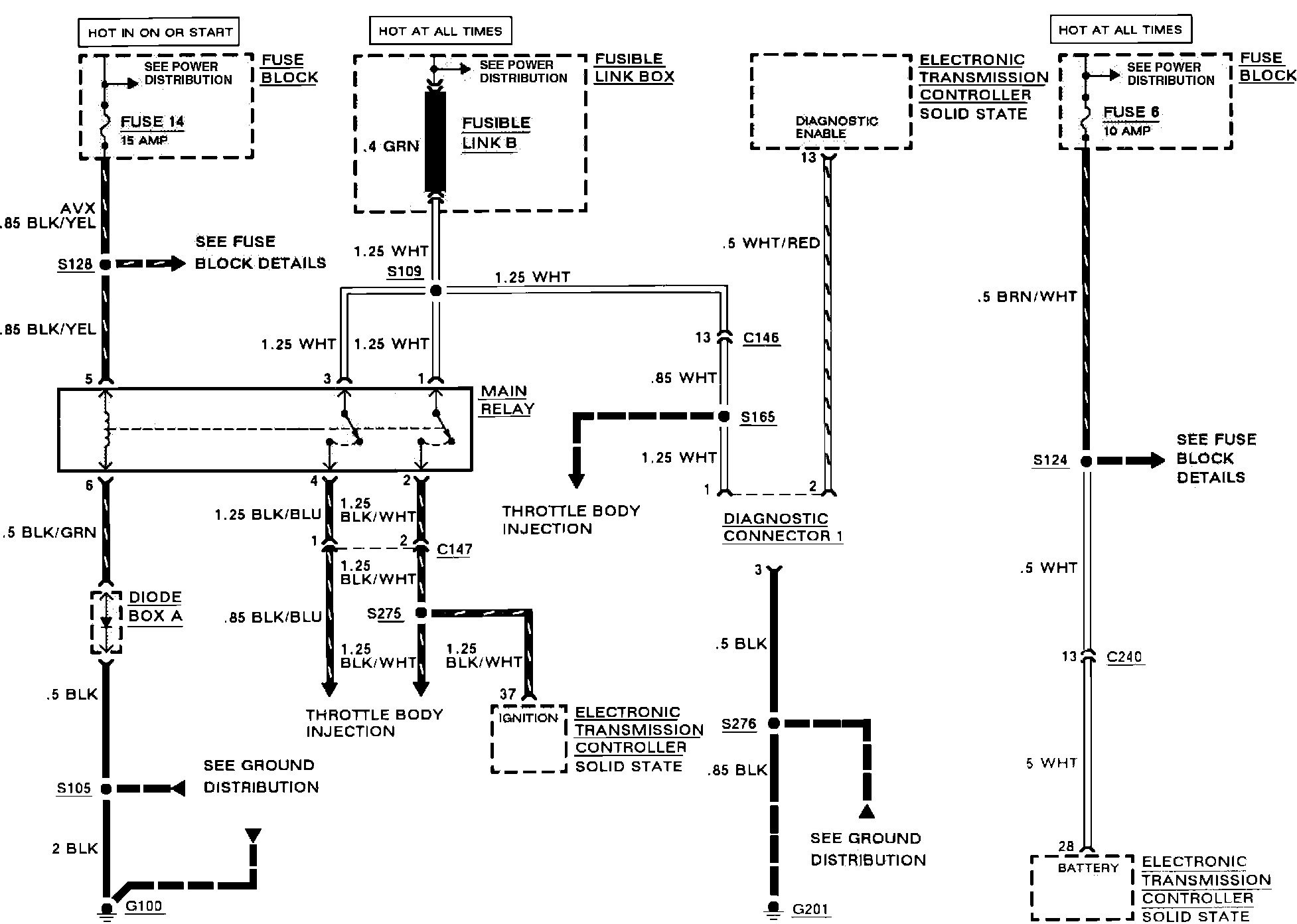

Automatic Transmission Control: Main Relay:
