Operation CHARM
: Car repair manuals for everyone.
Home
>>
Isuzu
>>
1990
>>
Trooper II V6-2827cc 2.8L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Compressor Clutch
>>
Testing and Inspection
Compressor Clutch: Testing and Inspection

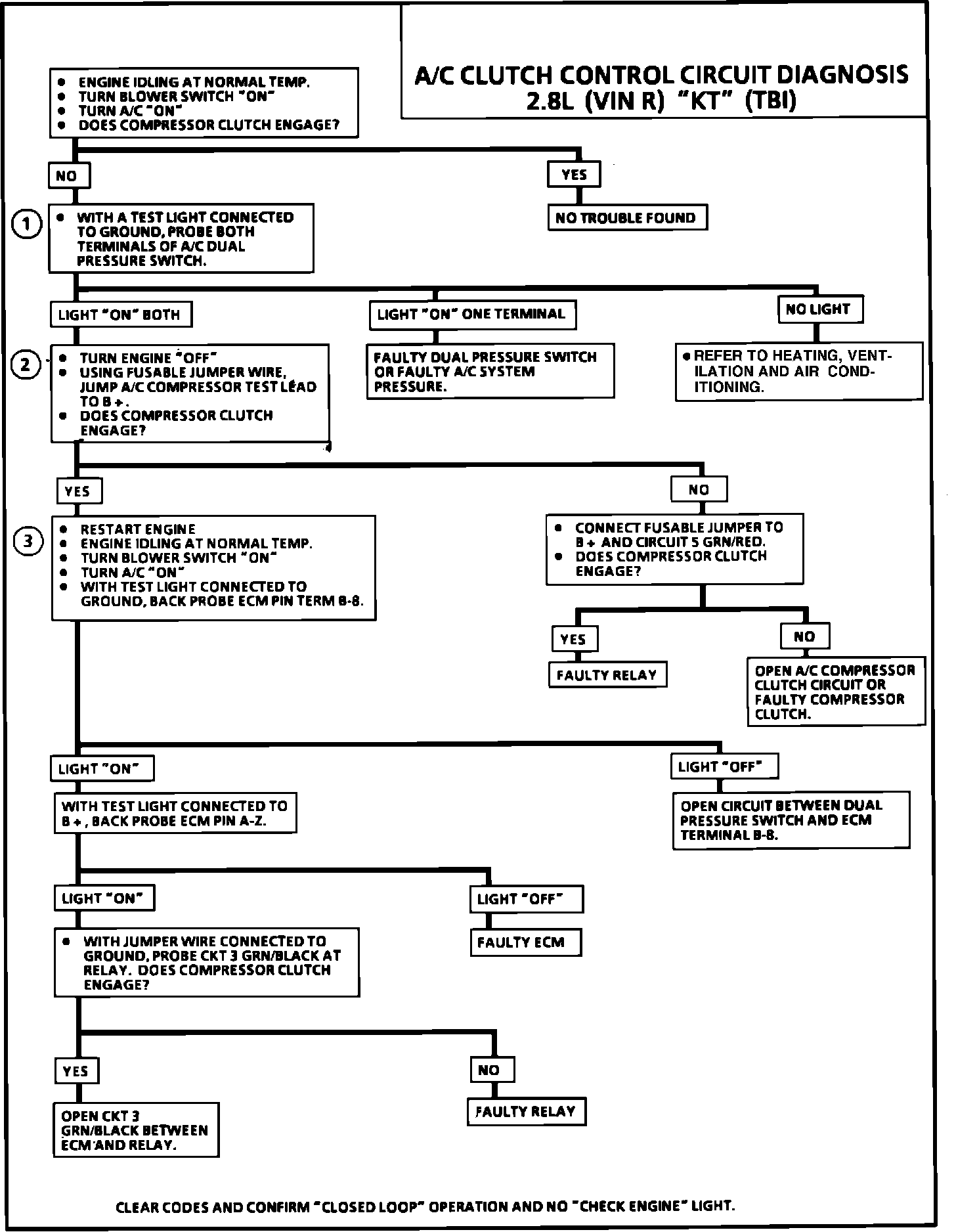

DIAGNOSTIC CHART
A/C Clutch Control Diagnostic Chart:

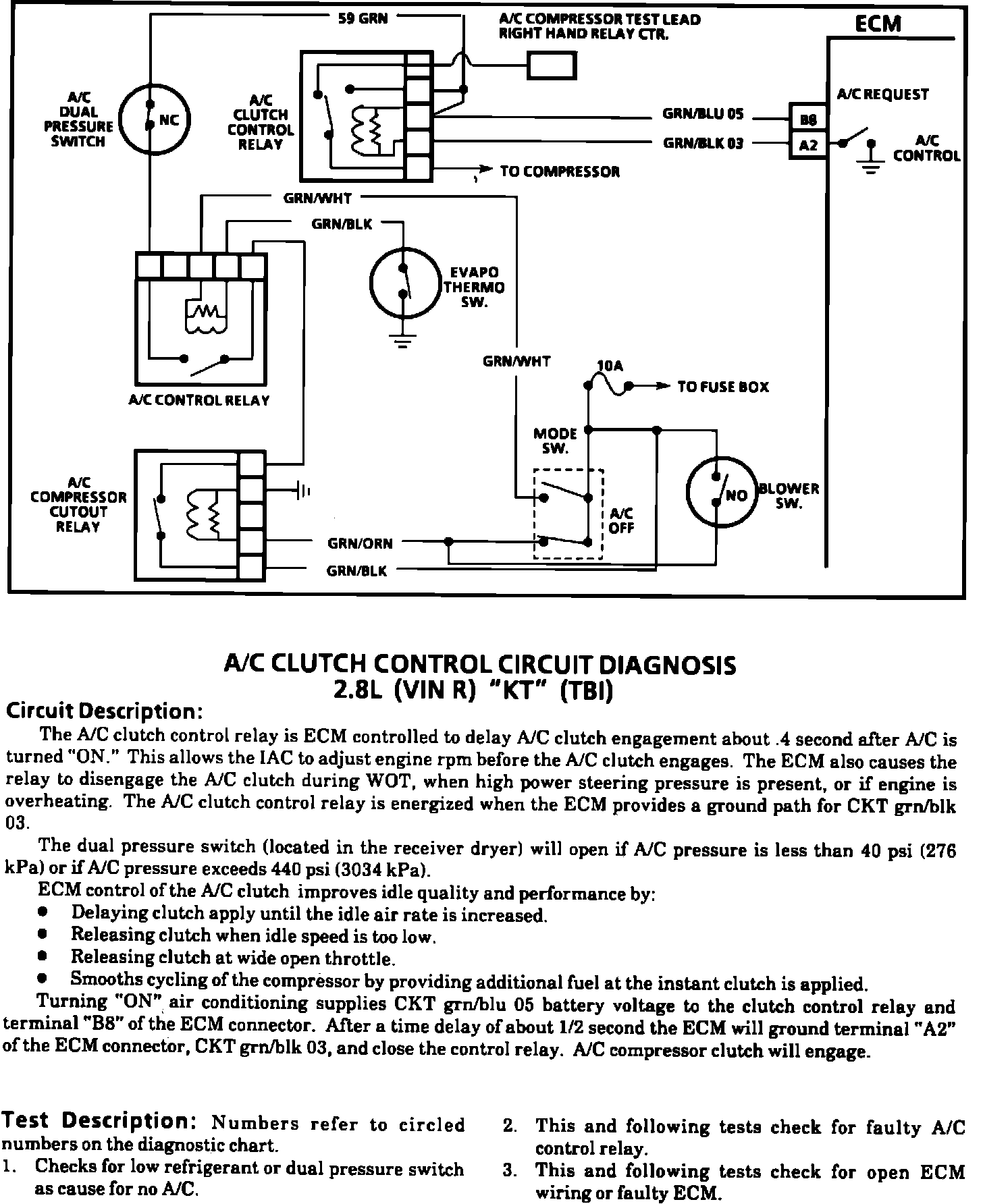

TEST DESCRIPTION
A/C Clutch Control Test Description:
