Idle Speed/Throttle Actuator - Electronic: Testing and Inspection
DIAGNOSTIC CHART

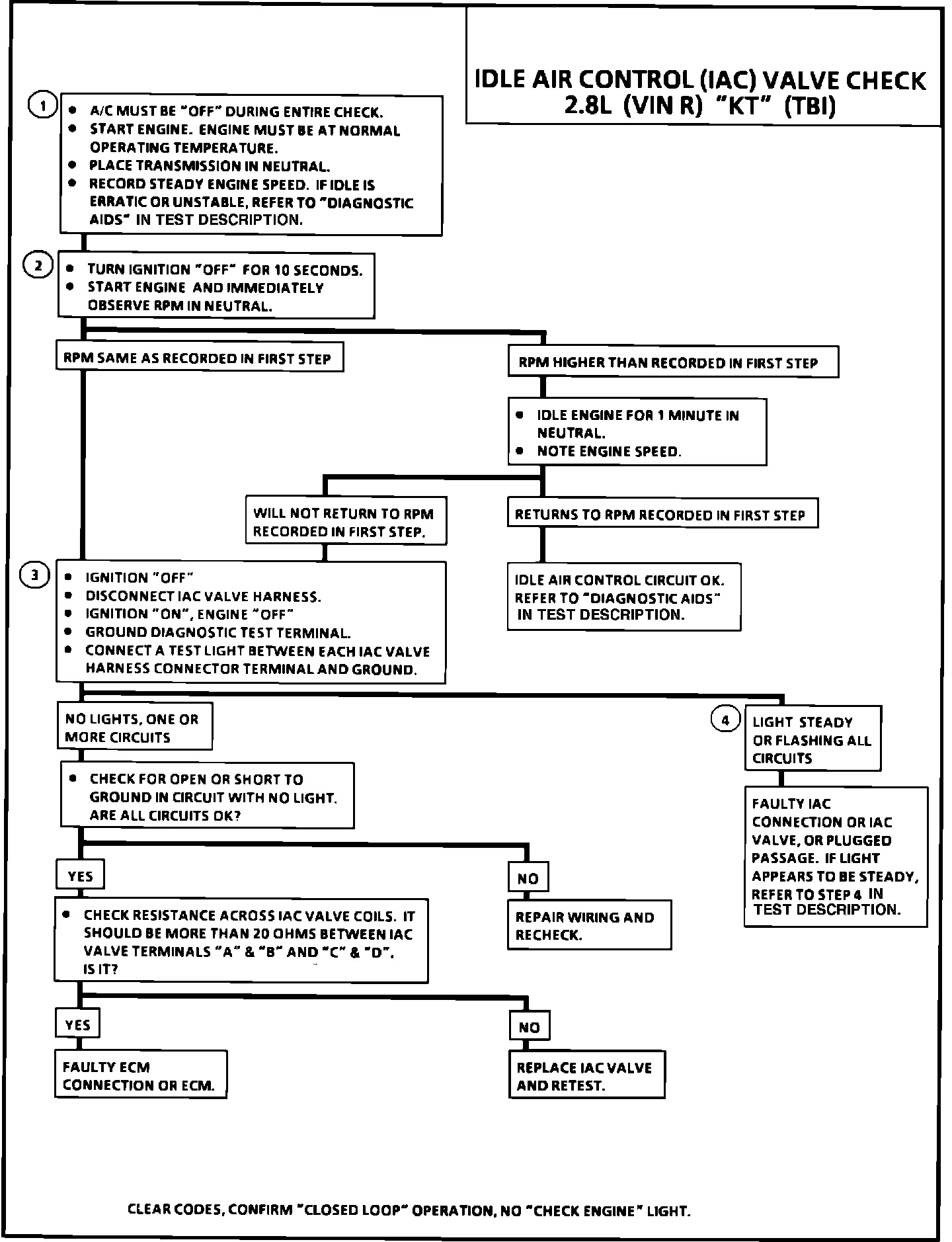

Idle Air Control (IAC) Valve Diagnostic Chart:
TEST DESCRIPTION

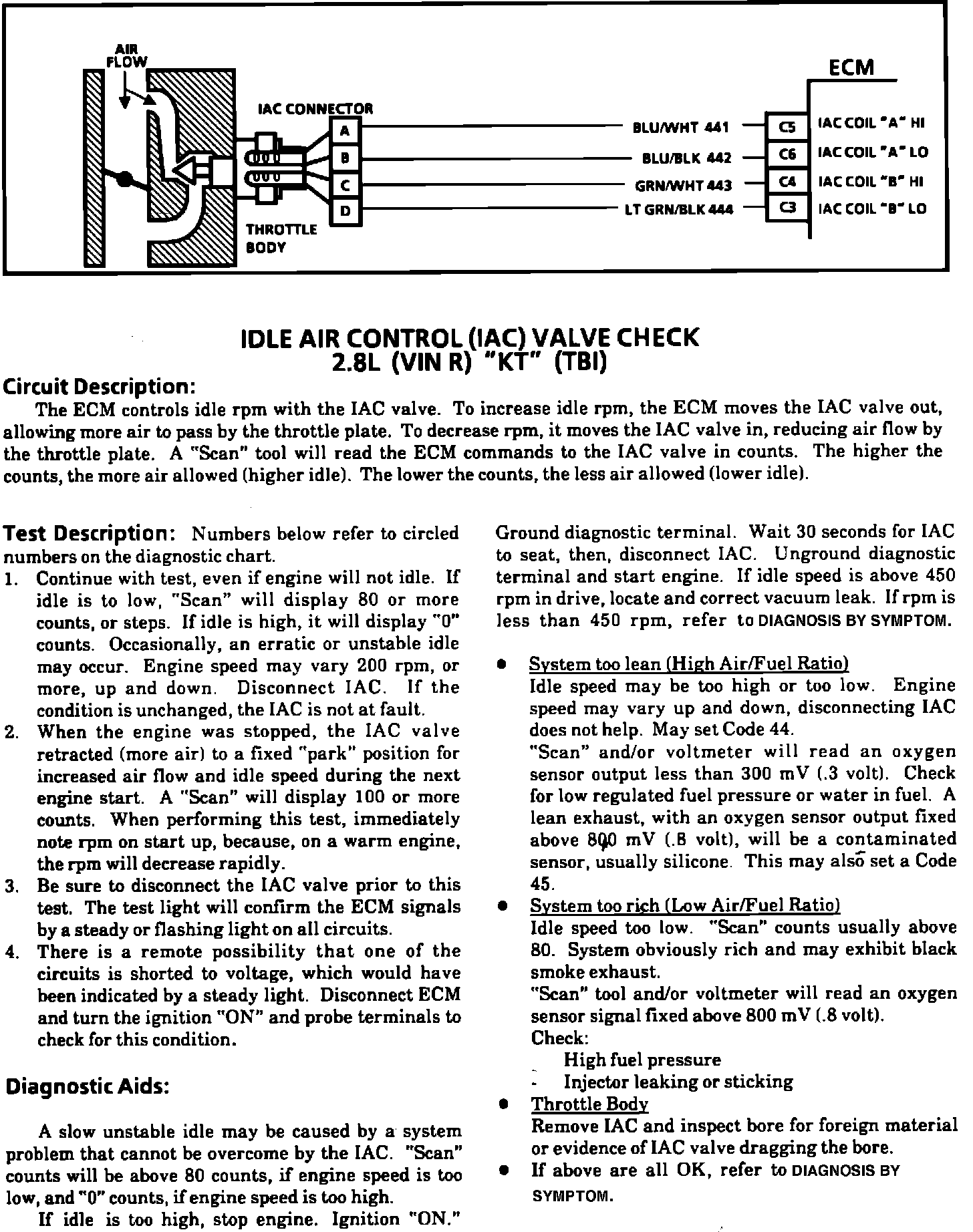

Idle Air Control (IAC) Valve Check:
