Electric Air Control Valve
Electric Air Control Valve

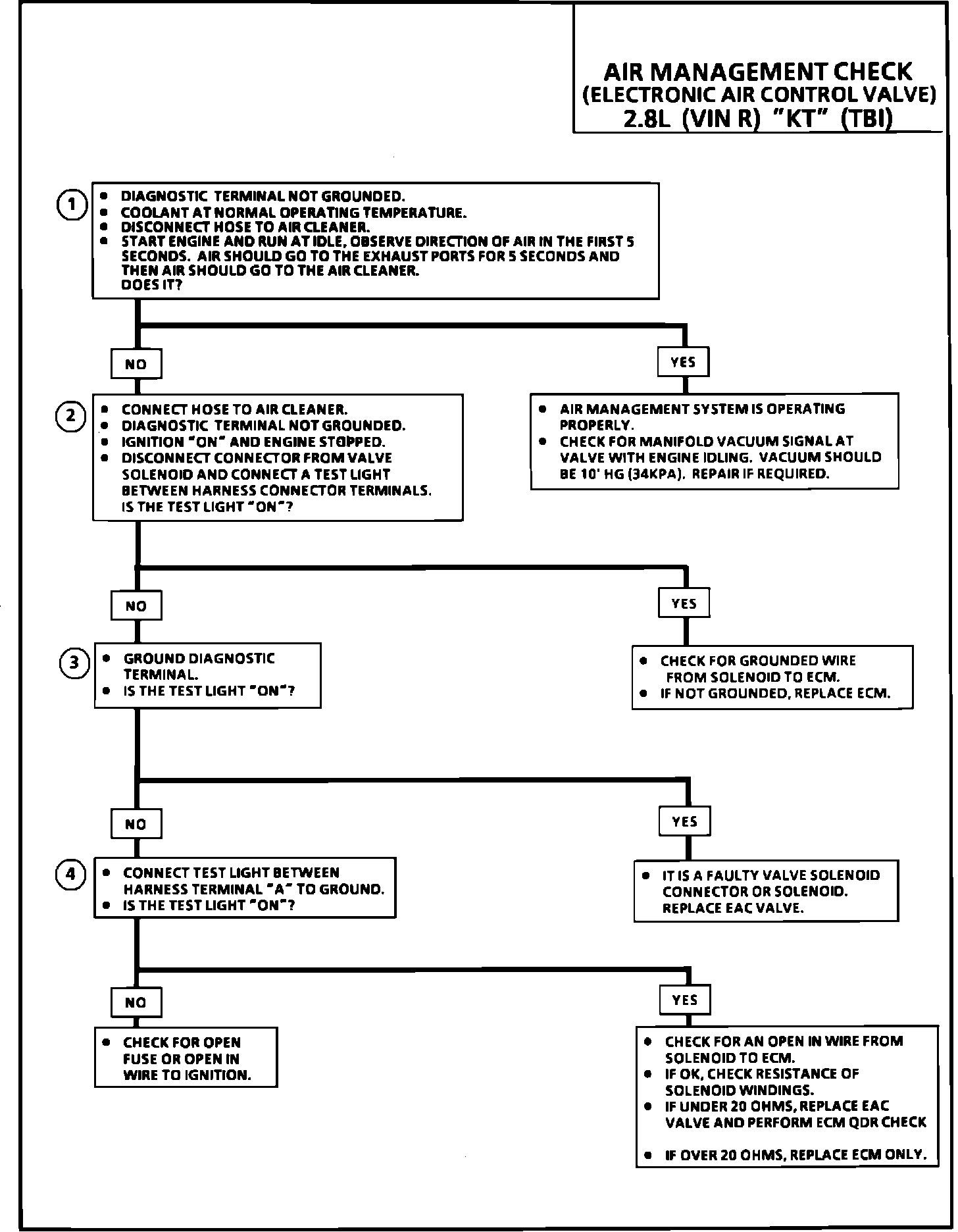

DIAGNOSTIC CHART
EAC Valve Diagnostic Chart:

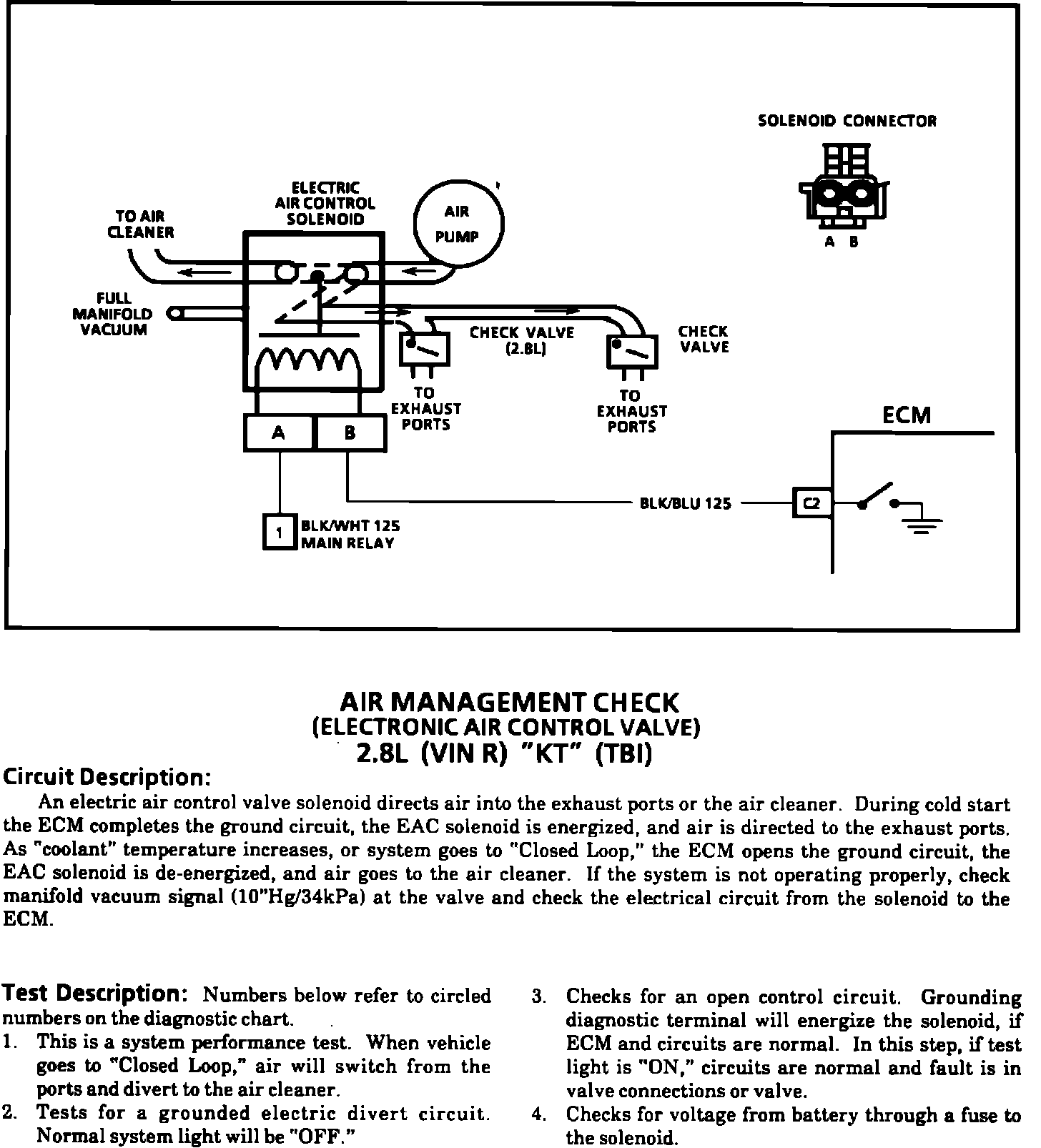

TEST DESCRIPTION
EAC Valve Test Description:
