Rodeo Models:

1. Remove negative battery cable.

2. Remove the driver and passenger side front speakers.


3. Remove the glovebox assembly.

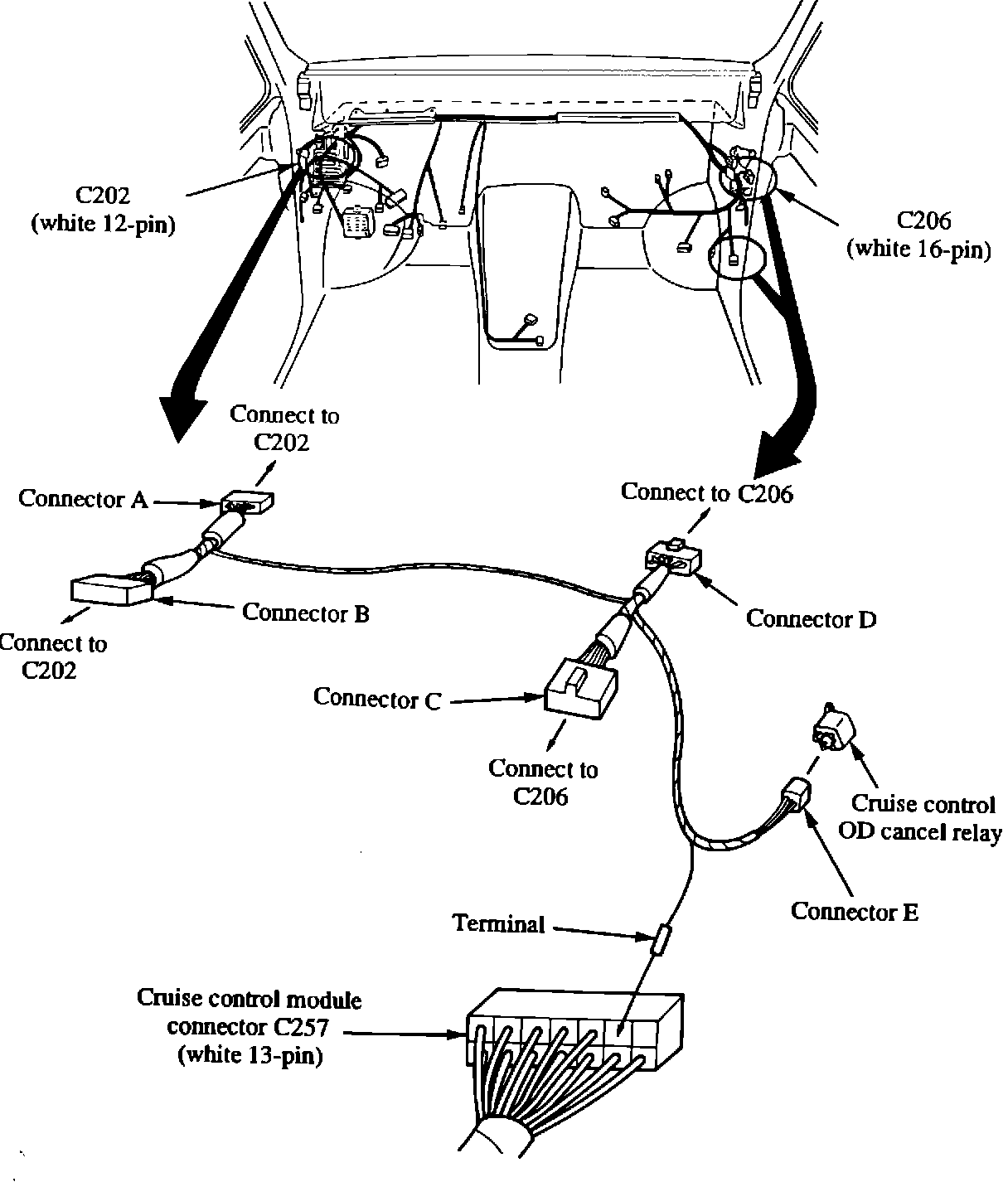

4. Install the cruise control extension harness as follows:


a. Route the extension harness behind the heater controls, with the A and B connectors to the driver side.

b. On the driver side:

- Disconnect the white (with yellow end caps) 12-pin C202 connector, located above the ECM.

- Connect extension harness connectors A and B to connector C202.


c. On the passenger side:

- Disconnect the white 16-pin C206 connector.

- Connect extension harness connectors C and D to connector C206.


- Install the cruise control extension harness terminal in the pin 2 location of the white 13-pin C257 cruise control unit connector.

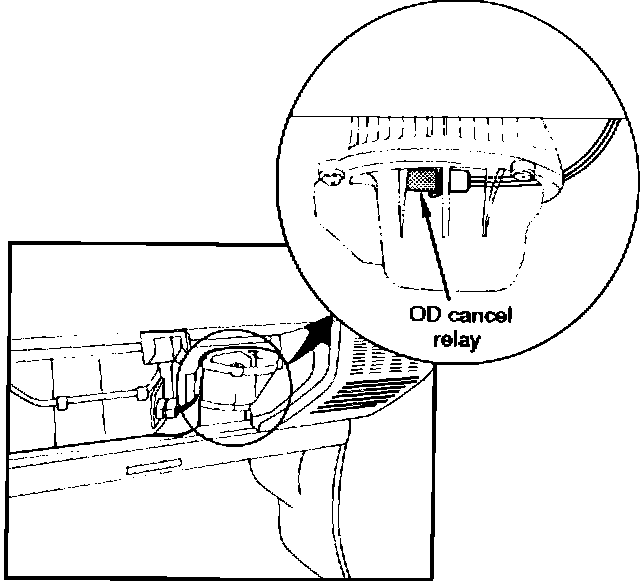

5. Install the cruise control 0D cancel relay as follows:

a. Install the cruise control 0D cancel relay to the rear of the blower motor case, using the existing mounting screw closest to the firewall.

b. Connect the 0D cancel relay to connector E of the cruise control extension harness.

6. Reinstall the front speakers.

7. Reinstall the glovebox assembly.

8. Reconnect negative battery cable.


PARTS INFORMATION


Part No. Description

8-97041-918-0 Cruise Control Extension Harness (Trooper)
8-97044-901-0 Cruise Control Extension Harness (Rodeo)
8-94429-946-0 Cruise Control Relay


FLAT RATE MANUAL UPDATE INFORMATION


OPERATION ADDITIONAL
OPERATION NUMBER TASK TIME INSTRUCTIONS

Trooper models:
Cruise Control Extension
Harness/Relay 041540 Install 0.8 Includes: 114142 R&R
Glovebox Assy.

Rodeo models:
Cruise Control Extension
Harness/Relay 041541 Install 1.0 Includes: 114142 R&R
Glovebox Assy.
Includes: R&R other
components as necessary.
