Check Engine Indicator Control

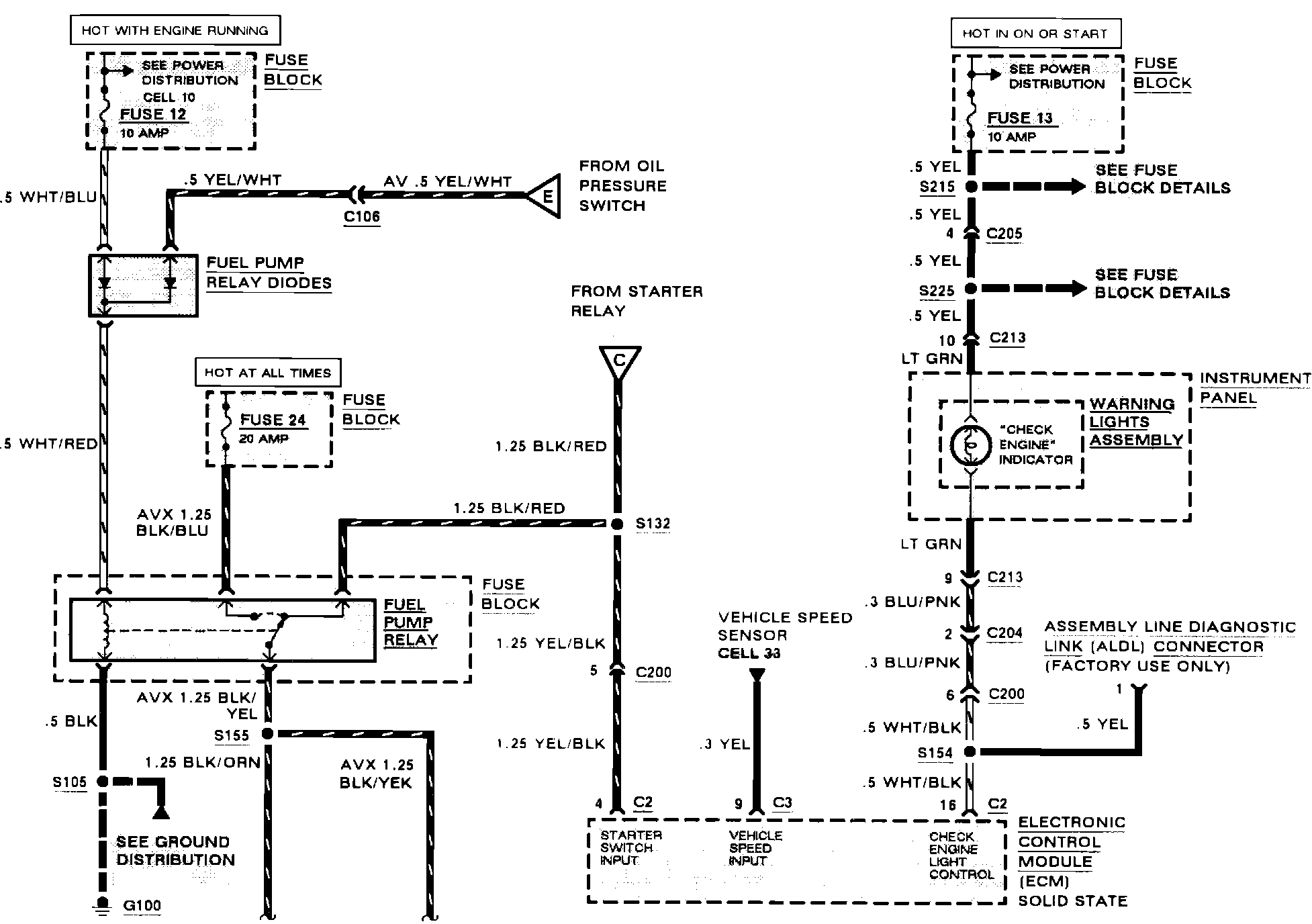

Engine Controls (Fuel Control, Check Engine Indicator, Ignition):

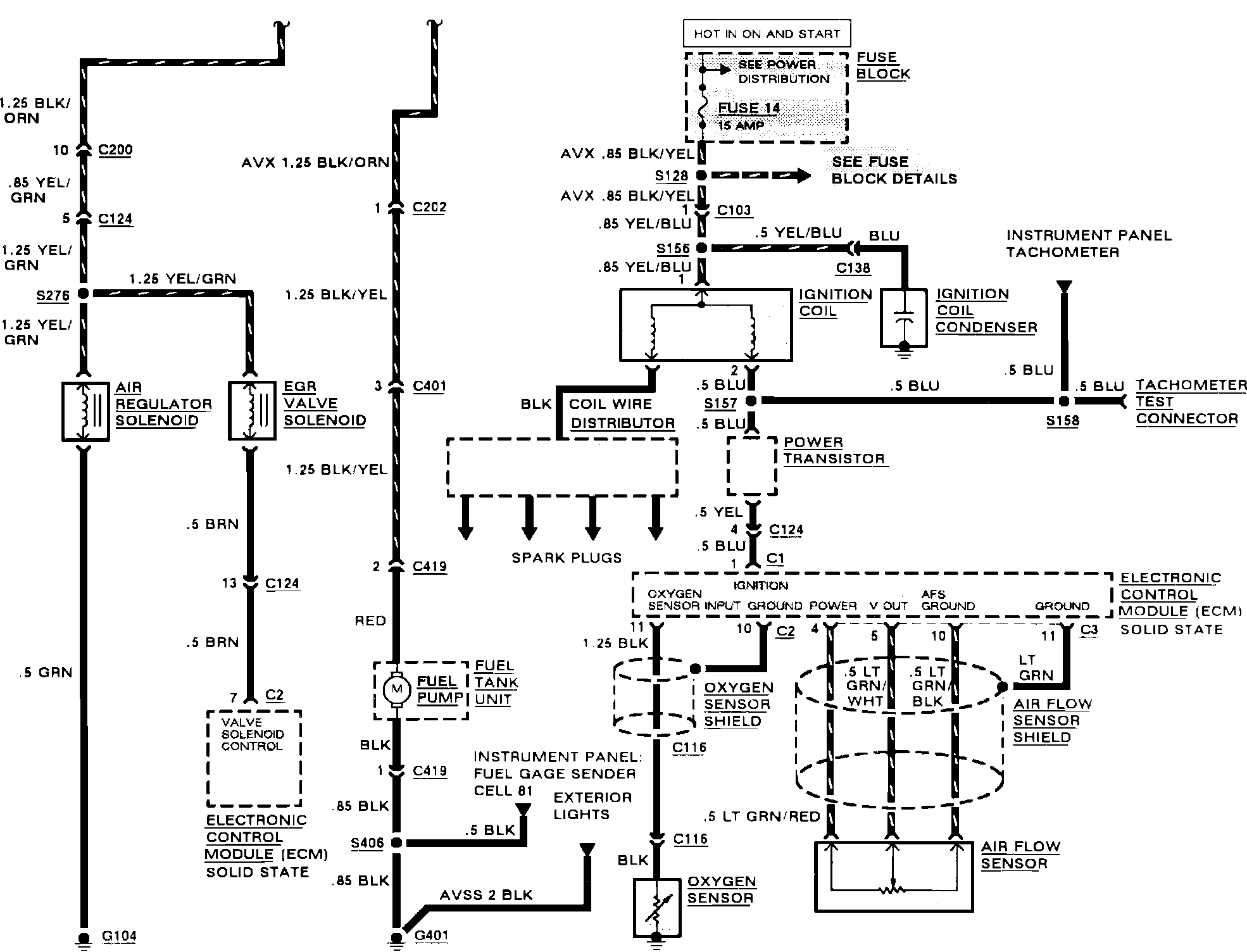

Engine Controls (Fuel Control, Check Engine Indicator, Ignition):
