Connector Locations

Connector And Wire Harness Routing:





CONNECTORS GROUNDS
C103 C155
C104 C156
C120 C158
C121 C159
C131 C160
C139 C201
C140 C205
C141 C213
C150 C214
C151 C221
C152 C222
C153 C223

Connector And Wire Harness Routing:





CONNECTORS GROUNDS
C200 C281
C232 C282
C233 C283
C259 C284
C271 C285
C272 C286
C273 C288
C274 C289
C275 C290
C276 C291
C279 C292

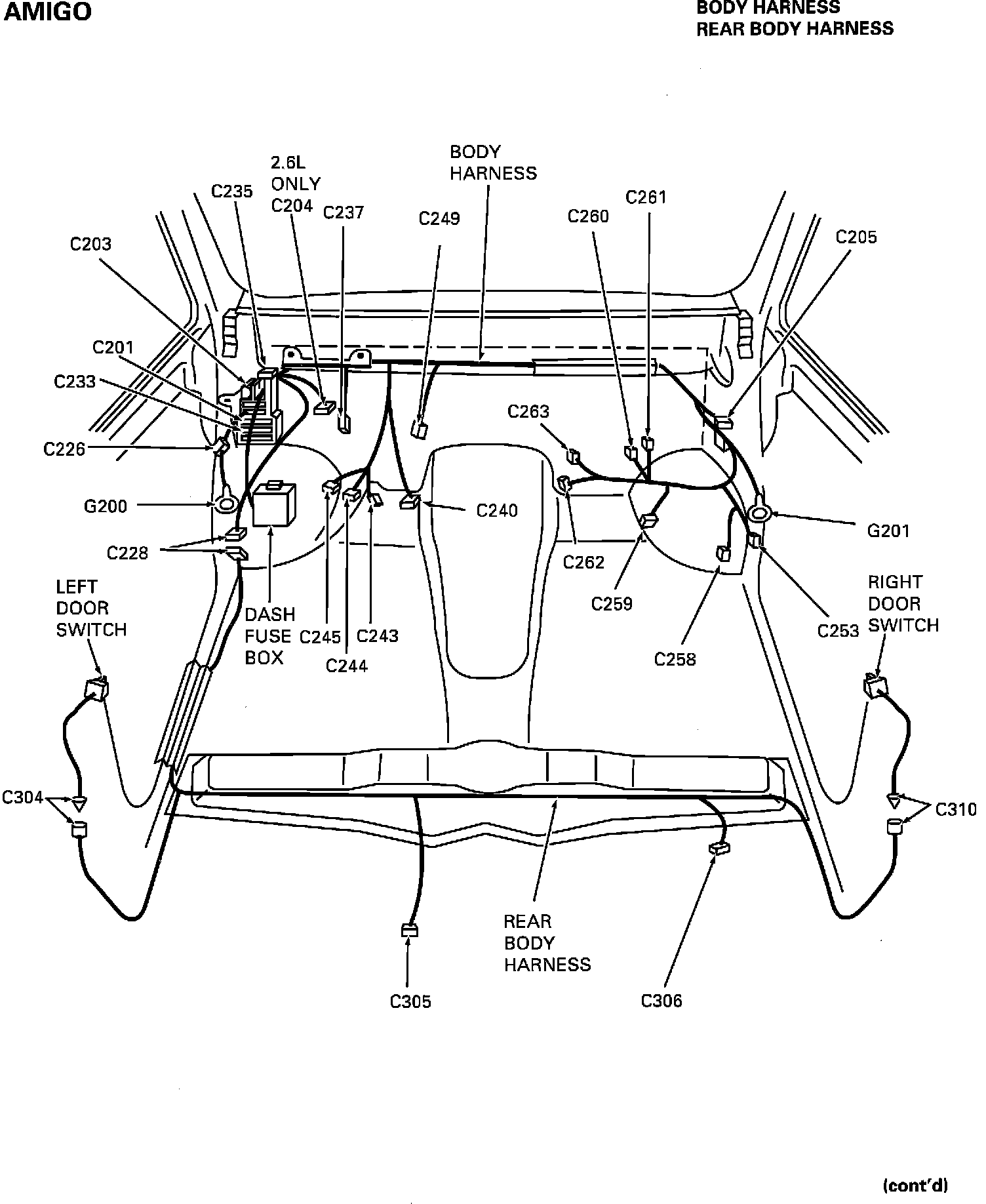

Connector And Wire Harness Routing:





CONNECTORS GROUNDS
C137 C249 G200
C201 C253 G201
C203 C258
C204 C259
C205 C260
C226 C261
C228 C262
C233 C263
C235 C304
C240 C305
C243 C306
C244 C310
C245

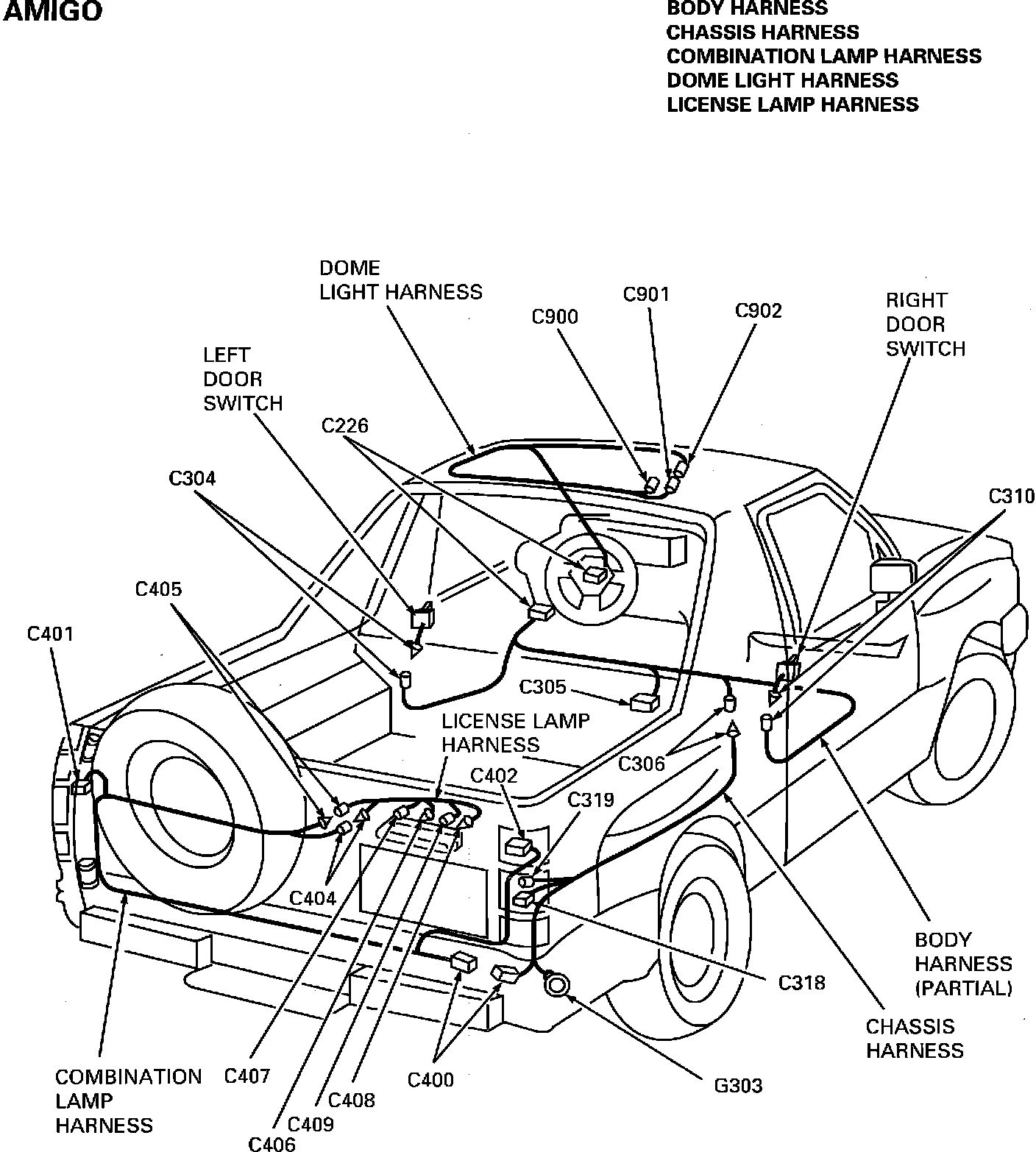

Connector And Wire Harness Routing:





CONNECTORS GROUNDS
C226 C402 G303
C304 C404
C305 C405
C305 C406
C306 C407
C310 C408
C318 C409
C319 C900
C400 C901
C401 C902
