Connector Locations

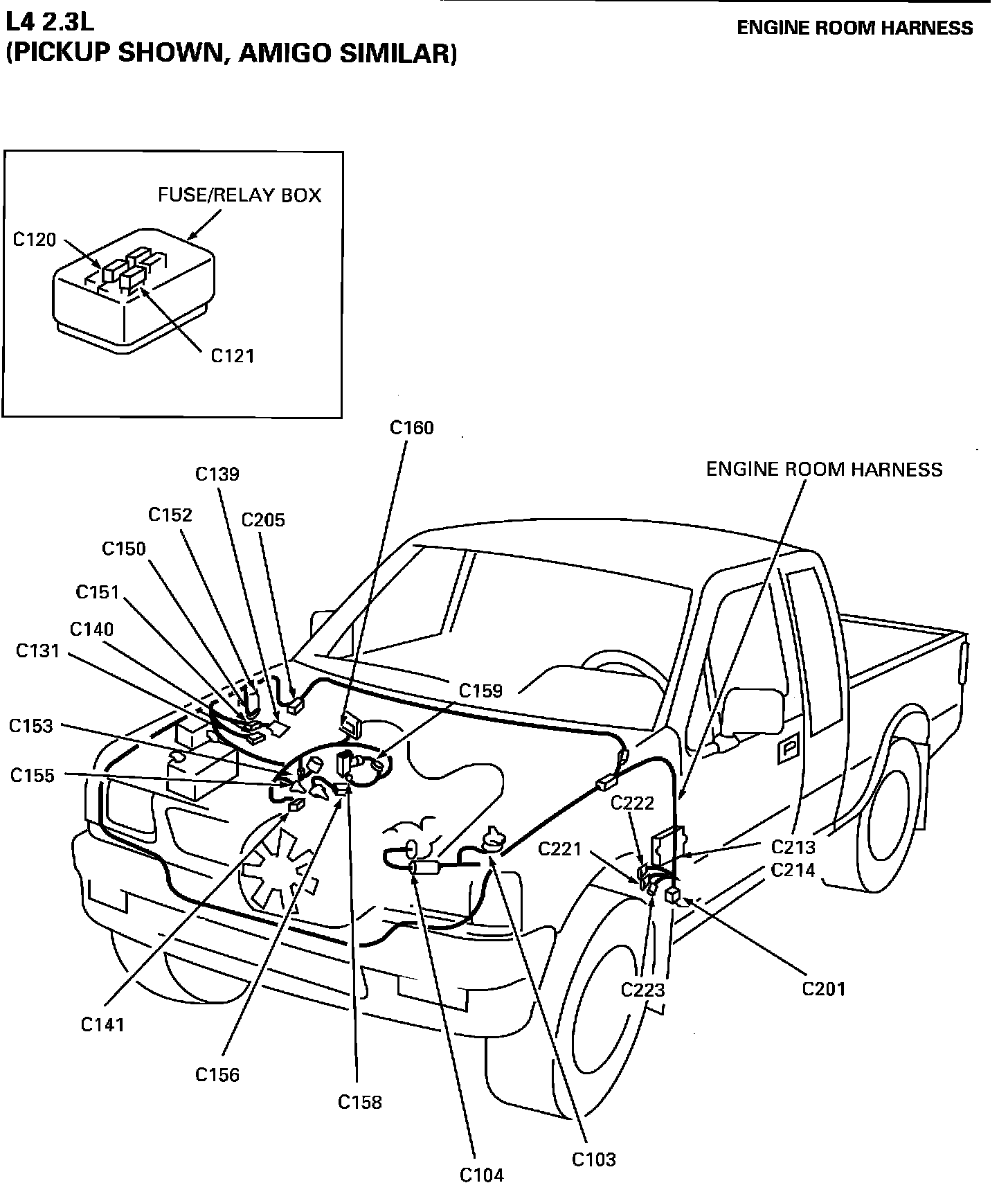

Connector And Wire Harness Routing:

CONNECTORS GROUNDS
C103 C155
C104 C156
C120 C158
C121 C159
C131 C160
C139 C201
C140 C205
C141 C213
C150 C214
C151 C221
C152 C222
C153 C223

Connector And Wire Harness Routing:

CONNECTORS GROUNDS
C200 C281
C232 C282
C233 C283
C259 C284
C271 C285
C272 C286
C273 C288
C274 C289
C275 C290
C276 C291
C279 C292

Connector And Wire Harness Routing:

CONNECTORS GROUNDS
C203 C259 G200
C204 C260 G201
C205 C261 G301
C226 C262
C227 C263
C228 C300
C229 C301
C235 C302
C237 C303
C238 C305
C239 C306
C240 C307
C243 C308
C244 C309
C245 C321
C246 C500
C249 C501
C250 C502
C252 C503
C253 C600
C254 C601
C256 C602
C257 C603
C258

Connector And Wire Harness Routing:

CONNECTORS GROUNDS
C226 C400 G303
C301 C401
C304 C402
C306 C403
C316 C900
C317 C901
C318 C902
C319
