Throttle Full Close Switch: Testing and Inspection
DIAGNOSTIC CHART

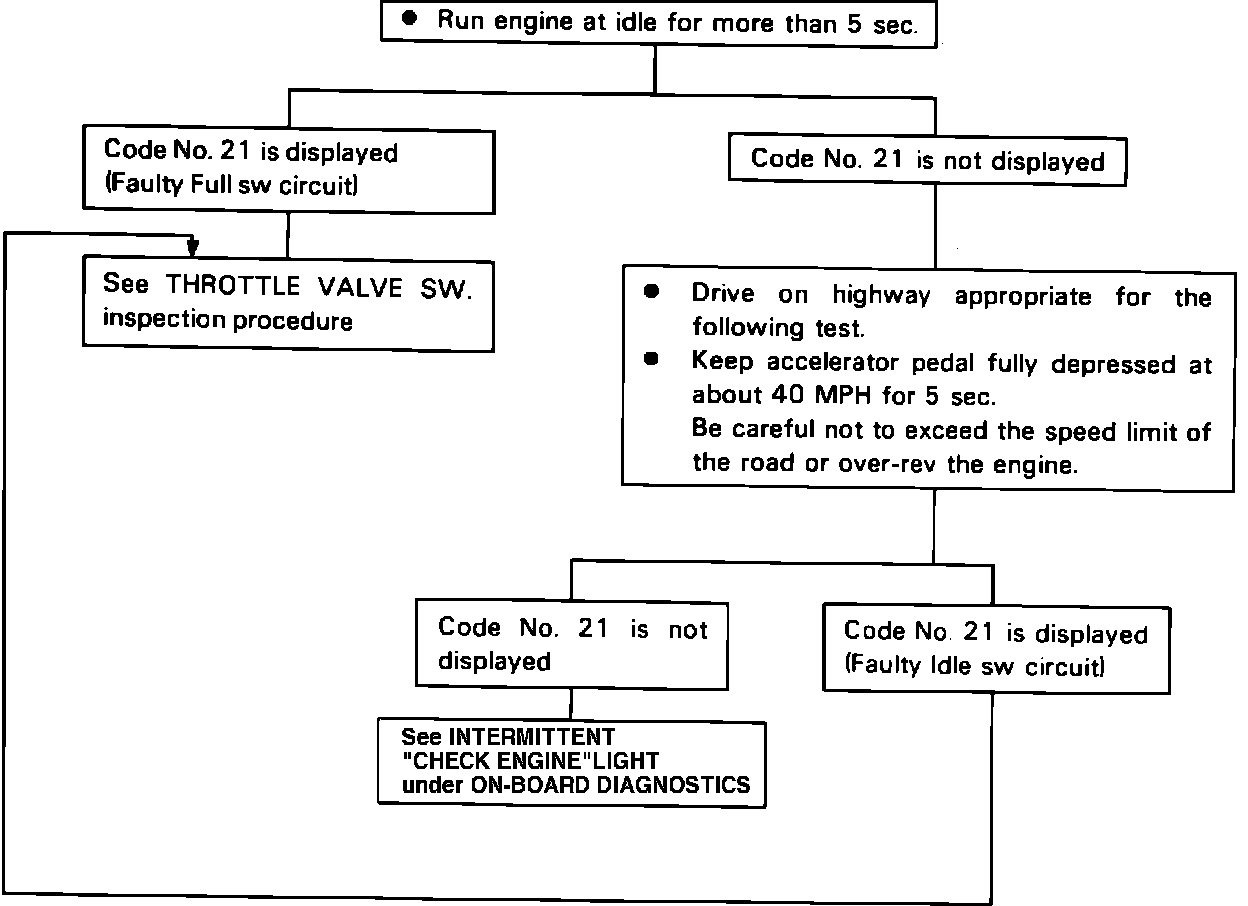

Code 21 Diagnostic Chart:
THROTTLE VALVE SWITCH INSPECTION PROCEDURE

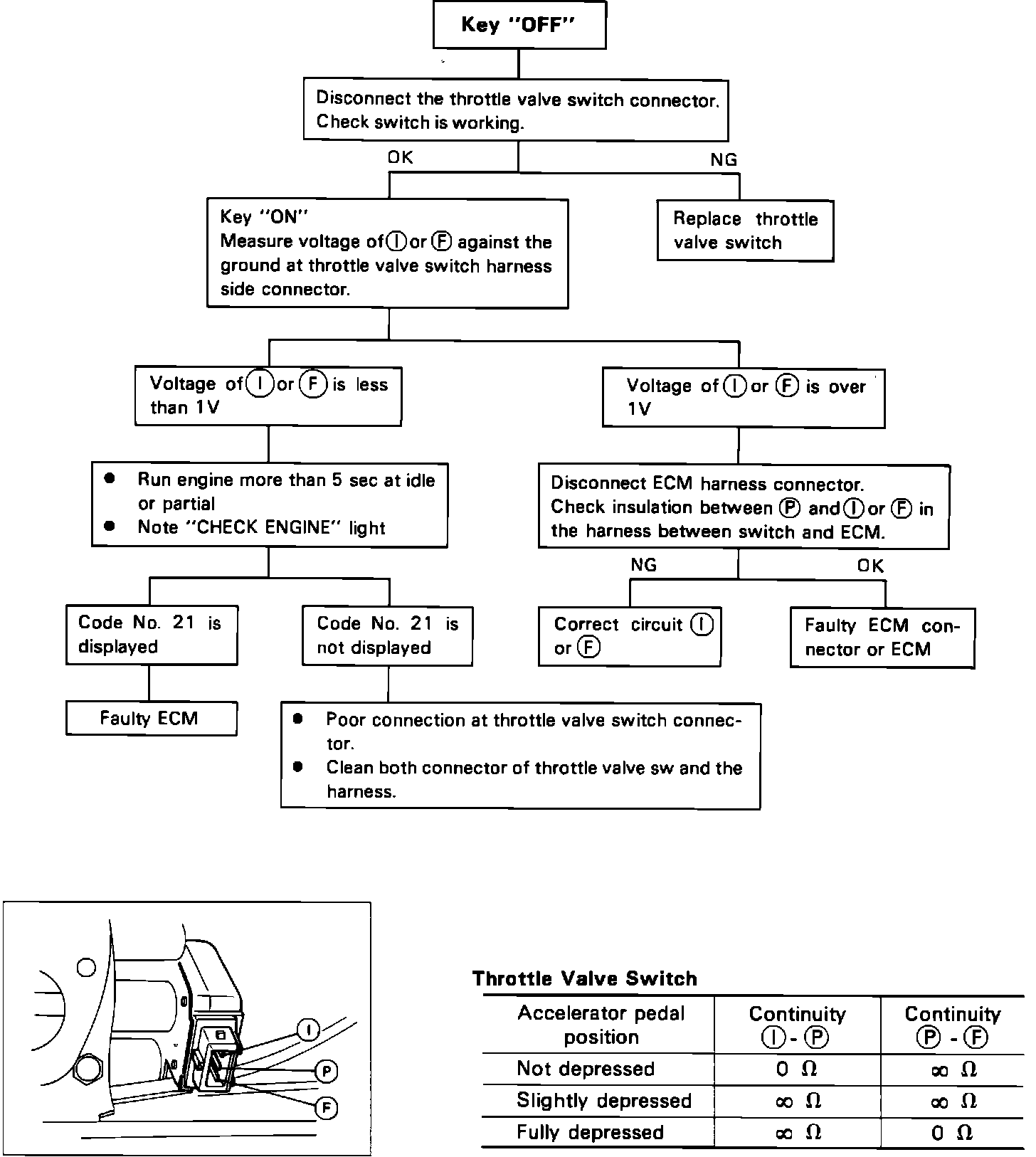

Throttle Valve Switch Inspection Procedure:
