Home
>>
Isuzu
>>
1992
>>
Pickup 2WD L4-2.3L (4ZD1)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Federal
Federal

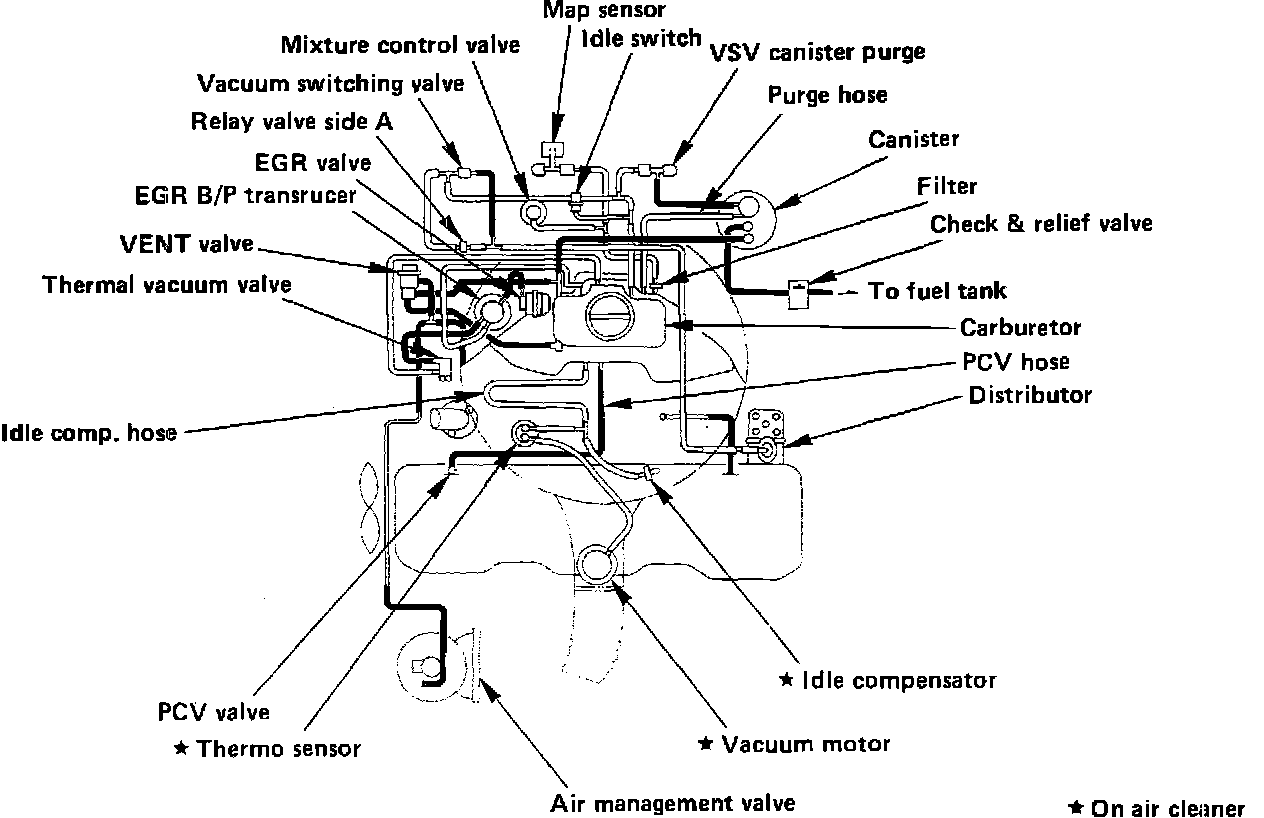

Vacuum Hose Routing - Federal:

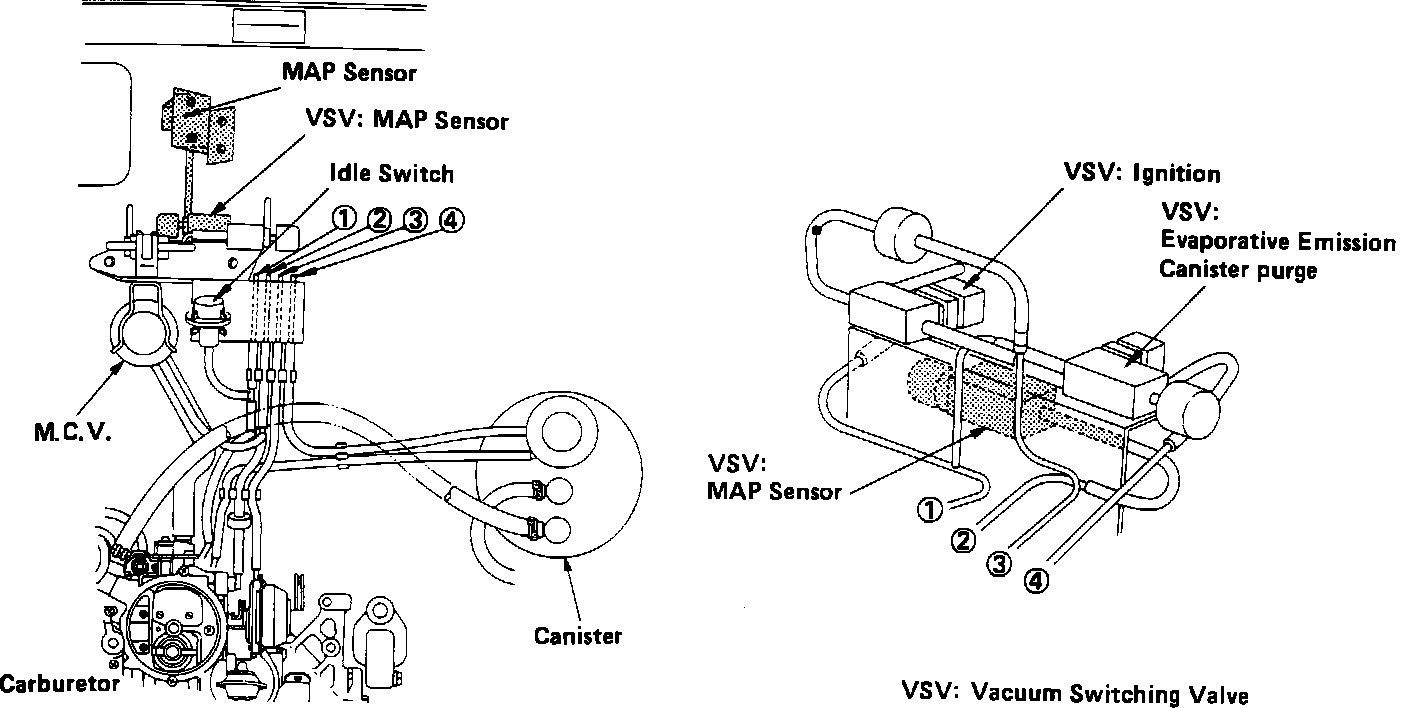

MAP Sensor Vacuum Hose Routing:
