Operation CHARM
: Car repair manuals for everyone.
Home
>>
Isuzu
>>
1993
>>
Pickup 2WD L4-2.3L (4ZD1)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
Connector Locations

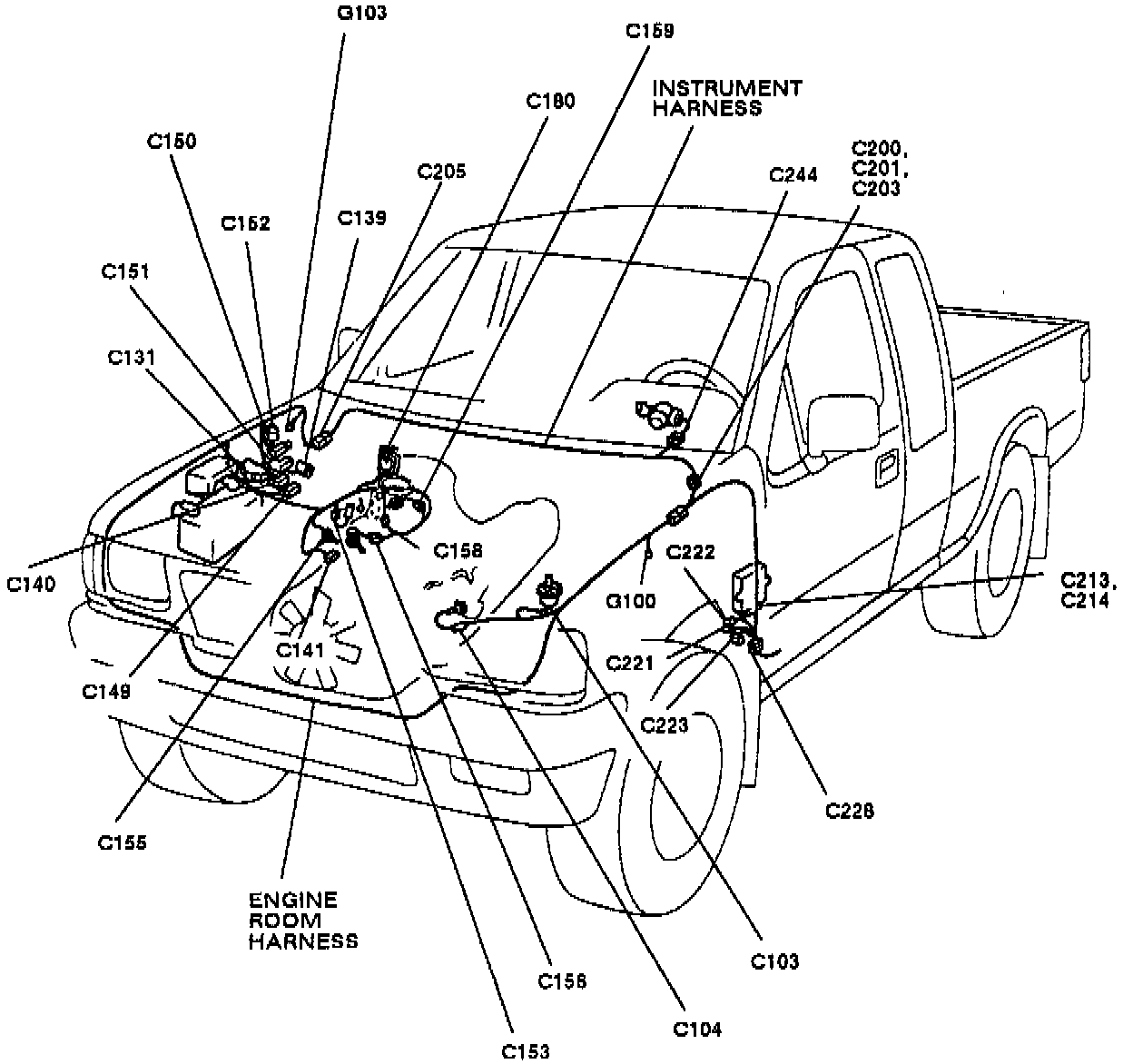

Connector And Wire Harness Routing: Engine Room And Instrument Harness:
