BARO / MAP Sensor Switching Valve: Testing and Inspection

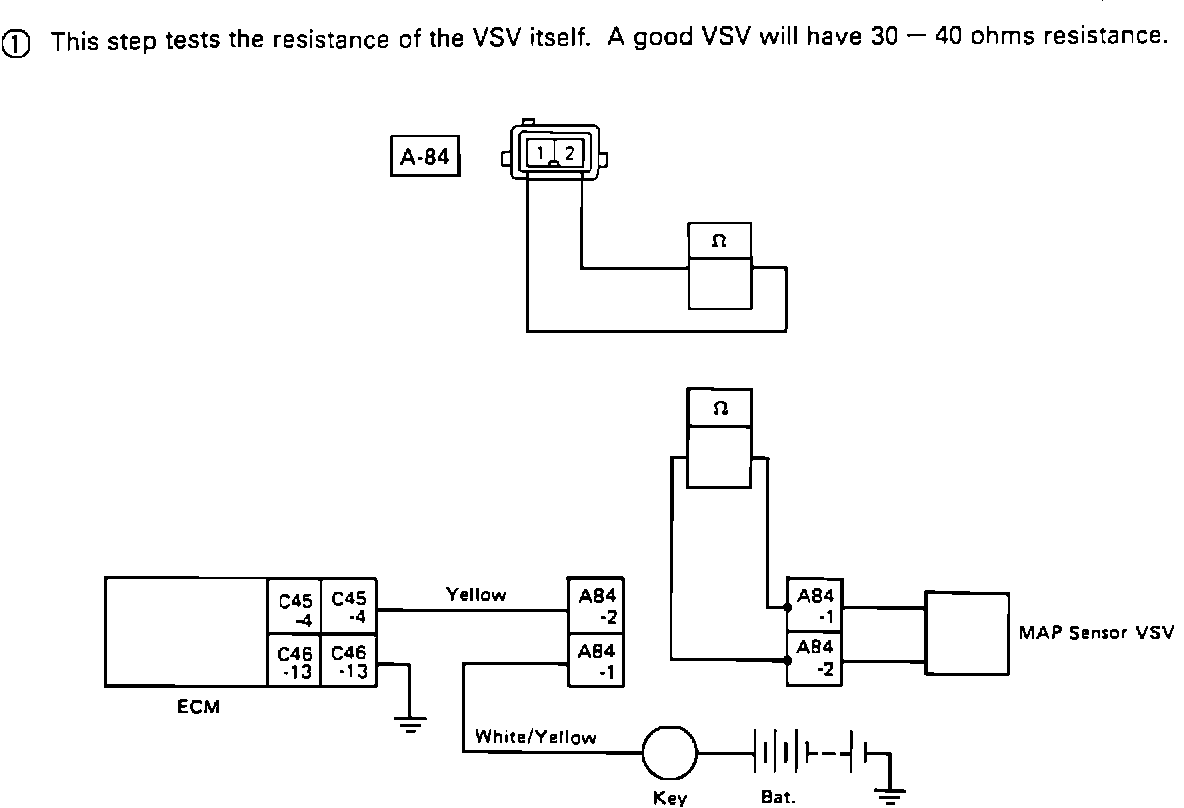

VSV Resistance Test:





Measure MAP VSV resistance. 30 - 40 ohms is appropriate.
