Home >> Isuzu >> 1995 >> Pickup 2WD L4-2.3L (4ZD1) >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Dash Fuse Box >> Fuse Number Index

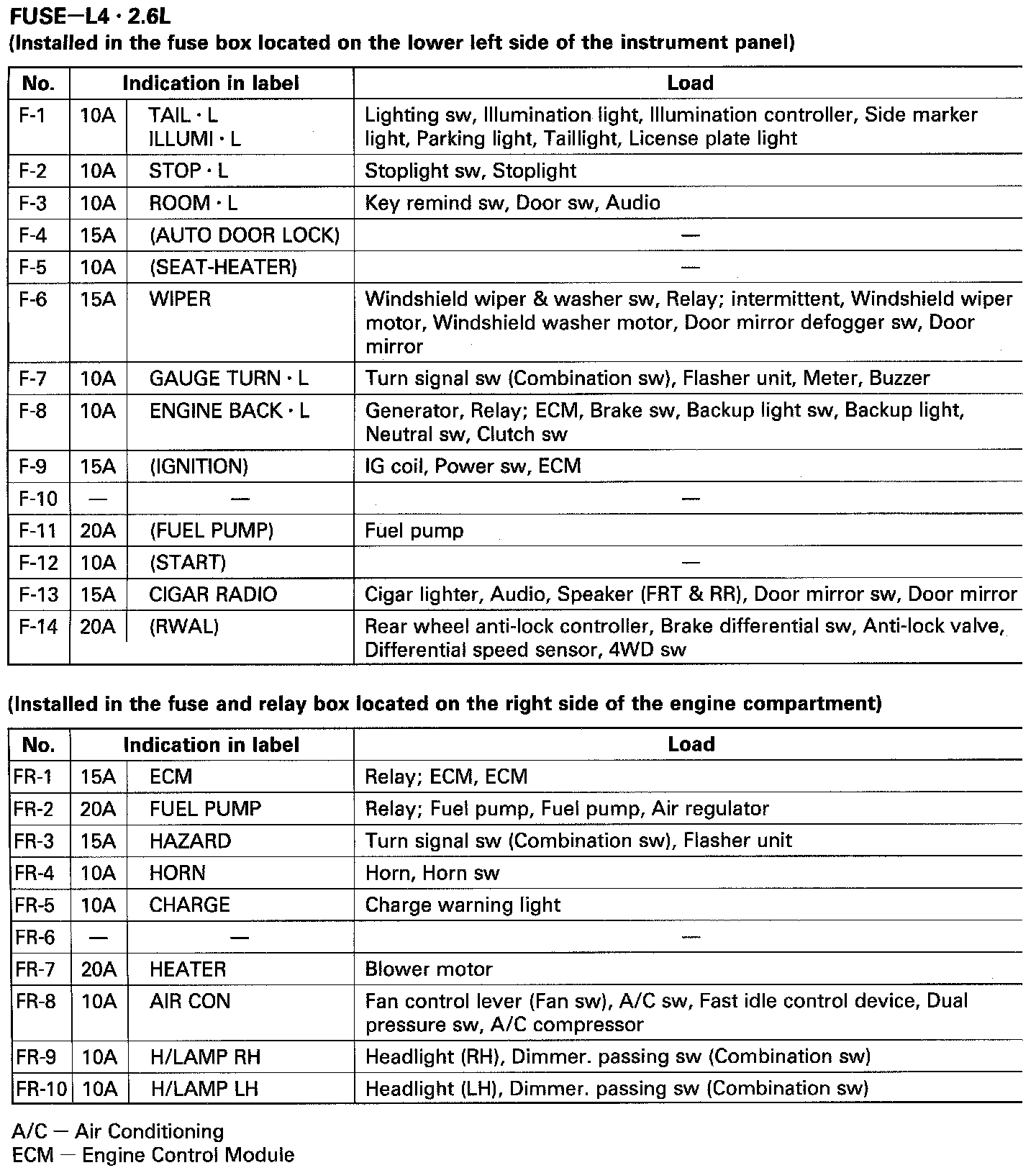

Fuse Number Index









94-95 2.3 L







94-95 2.6 L
